Electric stacker truck CQD series
loadingstoragetraction

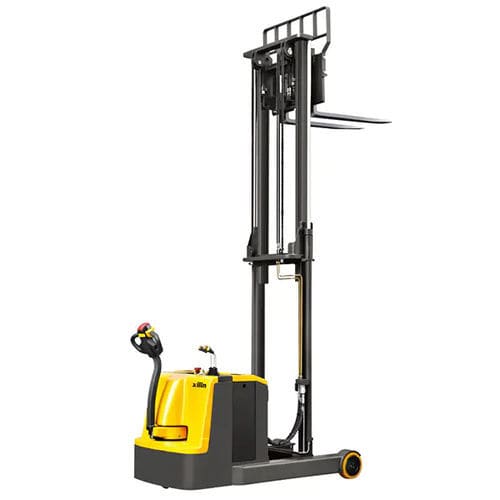

Electric stacker truck - CQD series - NINGBO RUYI JOINT STOCK CO., LTD - loading / storage / traction
Electric stacker truck - CQD series - NINGBO RUYI JOINT STOCK CO., LTD - loading / storage / traction
Electric stacker truck - CQD series - NINGBO RUYI JOINT STOCK CO., LTD - loading / storage / traction - image - 2
Add to favorites
Compare this product
Go to the NINGBO RUYI JOINT STOCK CO., LTD website for more information

Characteristics

Energy
electric
Applications
loading, storage, traction, battery
Other characteristics
compact, steel, tilting
Carrying capacity

1,250 kg
(2,755.8 lb)

Lifting height

Max.: 5.6 m
(18'04" )

Min.: 2.5 m
(8'02" )

Free lift

1,870 mm
(73.6 in)

Height of mast when lowered

Max.: 2,495 mm
(98.2 in)

Min.: 1,880 mm
(74 in)

Height of mast when raised

Max.: 6,600 mm
(259.84 in)

Min.: 3,500 mm
(137.8 in)

Overall width

990 mm
(39 in)

Overall length

Max.: 2,330 mm
(91.7 in)

Min.: 2,130 mm
(83.9 in)

Fork width

10 cm
(3.9 in)

Fork length

Max.: 115 cm
(45.28 in)

Min.: 95 cm
(37.4 in)

Fork thickness

35 mm
(1.38 in)

Fork spacing

Max.: 680 mm
(26.77 in)

Min.: 200 mm
(7.87 in)

Turning circle radius

1,680 mm
(66.1 in)

Battery capacity

Max.: 270 Ah

Min.: 230 Ah

Motor power traction

1.2 kW
(1.632 hp)

Motor power lifting

4.5 kW
(6.118 hp)

Travel speed

Max.: 6 km/h
(3.73 mph)

Min.: 5.5 km/h
(3.42 mph)

Lifting speed

Max.: 0.2 m/s
(0.656 ft/s)

Min.: 0.13 m/s
(0.427 ft/s)

Weight

1,980 kg
(4,365.15 lb)

Description

STRUCTURAL • Long handle structure makes it steering light and flexible. • Two lifting cylinders placed on outer sides of the mast. • Germany imported spécial Steel mast. • Vertical driving wheel, driving efficiency, easy installation & maintenance. • Compact structure and low gravity. EASY MAINTENANCE • Magnet suction battery cover, easy for installation and maintenance. • AC controlling system, low noise, less maintenance. SAFETY AND EFFICIENCY • AC frequency conversion traction motor: compact structure, good performance, regenerative braking and easy maintenance. • Tilting system forks easy for loading and stacking. • High Storage battery ensures strong and long-lasting power. • Meter with BDI, prolongingthe battery's usingtime. • The braking system combines magnetic brake and regenerative break, greatly prolongs the using life of friction plate. • With emergency stop switch and electricity lock button, and multi- valve controlling levers, ergonomie for opération . • The adjustable regulator valve can adjustthe lowing speed ofthe masts.
