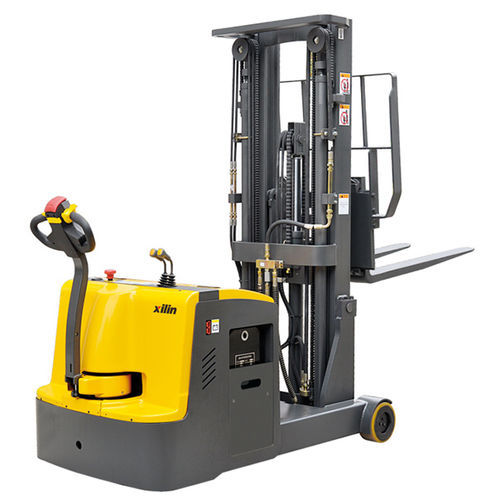

Counterbalanced stacker truck CPD15Welectricwalk-behind24 V
Add to favorites
Compare this product
Characteristics
- Energy
- electric
- Operator
- walk-behind
- Voltage
- 24 V
- Applications
- loading
- Other characteristics
- compact, steel, counterbalanced, low-noise
- Carrying capacity
550 kg, 1,500 kg
(1,212.5 lb, 3,306.9 lb)- Lifting height
1,600 mm, 2,000 mm, 2,500 mm, 3,000 mm, 5,600 mm
(62.99 in, 78.74 in, 98.43 in, 118.11 in, 220.47 in)- Free lift
1,400 mm, 1,500 mm, 1,670 mm, 1,870 mm
(55.1 in, 59.1 in, 65.7 in, 73.6 in)- Height of mast when lowered
Min.: 1,735 mm
(68.3 in)Max.: 2,435 mm
(95.9 in)- Height of mast when raised
Min.: 2,240 mm
(88.19 in)Max.: 6,600 mm
(259.84 in)- Overall width
846 mm, 990 mm
(33.3 in, 39 in)- Overall length
2,002 mm, 2,650 mm
(78.8 in, 104.3 in)- Fork width
100 mm
(3.9 in)- Fork length
850 mm, 950 mm
(33.46 in, 37.4 in)- Fork thickness
32 mm, 35 mm
(1.26 in, 1.38 in)- Turning circle radius
1,170 mm, 1,570 mm
(46.1 in, 61.8 in)- Battery capacity
105 Ah, 280 Ah
- Motor power traction
0.65 kW, 1.2 kW
(0.884 hp, 1.632 hp)- Motor power lifting
2.2 kW, 4.5 kW
(2.991 hp, 6.118 hp)- Travel speed
4.1 km/h, 4.5 km/h, 5.8 km/h, 6 km/h
(2.55 mph, 2.8 mph, 3.6 mph, 3.73 mph)- Lifting speed
Min.: 0 m/s
(0 ft/s)Max.: 0.25 m/s
(0.82 ft/s)
Description
SAFETY AND EFFICIENCY:
• AC frequency conversion traction motor: compact structure, good performance, regenerative braking and easy maintenance.
• Tilting system forks easy for loading and stacking.
• High Storage battery ensures strong and long-lasting power.
• Meter with BDI, prolonging the battery's using time.
• The braking system combines magnetic brake and regenerative break, greatly prolongs the using life of friction plate.
• With emergency stop switch and electricity lock button, and multi-valve controlling levers, ergonomic for operation.
• The adjustable regulator valve can adjust the lowing speed of the masts.
STRUCTURAL:
• Long handle structure makes it steering light and flexible.
• Two lifting cylinders placed on outer sides of the mast.
• Germany imported special steel mast.
• Vertical driving wheel, driving efficiency, easy installation & maintenance.
• Compact structure and low gravity.
EASY MAINTENANCE:
• Magnet suction battery cover, easy for installation and maintenance.
• AC controlling system, low noise, less maintenance.
