Counterbalanced stacker truck CQD15W
electricwalk-behindlateral

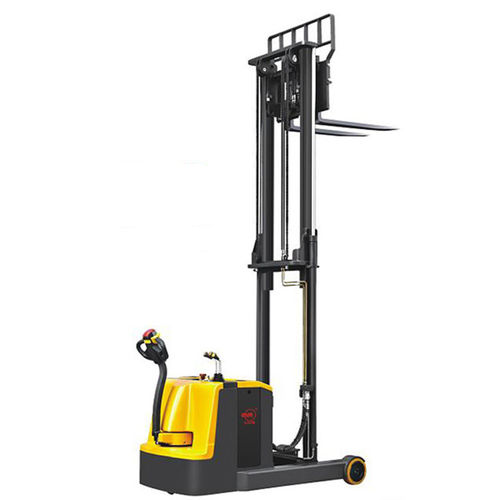

Counterbalanced stacker truck - CQD15W - NINGBO RUYI JOINT STOCK CO., LTD - electric / walk-behind / lateral
Counterbalanced stacker truck - CQD15W - NINGBO RUYI JOINT STOCK CO., LTD - electric / walk-behind / lateral
Add to favorites
Compare this product
Go to the NINGBO RUYI JOINT STOCK CO., LTD website for more information

Characteristics

Energy
electric
Operator
walk-behind, lateral
Voltage
24 V
Applications
handling, for warehouse, loading, narrow-aisle
Other characteristics
compact, high-lift, counterbalanced
Carrying capacity

1,200 kg, 1,500 kg
(2,645.5 lb, 3,306.9 lb)

Lifting height

Max.: 6,600 mm
(259.84 in)

Min.: 2,500 mm
(98.43 in)

Free lift

1,280 mm, 1,480 mm, 1,600 mm, 1,870 mm
(50.4 in, 58.3 in, 63 in, 73.6 in)

Height of mast when lowered

Max.: 2,495 mm
(98.2 in)

Min.: 1,880 mm
(74 in)

Height of mast when raised

Max.: 6,600 mm
(259.84 in)

Min.: 3,500 mm
(137.8 in)

Overall width

990 mm
(39 in)

Overall length

2,080 mm, 2,200 mm, 2,280 mm
(81.9 in, 86.6 in, 89.8 in)

Fork width

100 mm
(3.9 in)

Fork length

950 mm
(37.4 in)

Fork thickness

35 mm
(1.38 in)

Turning circle radius

1,550 mm
(61 in)

Battery capacity

270 Ah

Motor power traction

1.2 kW
(1.632 hp)

Motor power lifting

4.5 kW
(6.118 hp)

Travel speed

5.5 km/h, 6 km/h
(3.42 mph, 3.73 mph)

Lifting speed

Max.: 0.2 m/s
(0.656 ft/s)

Min.: 0 m/s
(0 ft/s)

Weight

1,700 kg
(3,747.86 lb)

Description

STRUCTURAL: • Long handle structure makes its steering light and flexible. • Two lifting cylinders placed on outer sides of the mast, improves the lateral stability and widens operator view. • Germany imported special steel mast. • Vertical driving wheel, driving efficiency, easy installation & maintenance. • Compact structure and low gravity. SAFETY AND EFFICIENCY: • AC frequency conversion traction motor: compact structure, good performance, regenerative braking and easy maintenance. • Tilting system forks easy for loading and stacking. • High Storage battery ensures strong and long-lasting power. • Meter with BDI, prolonging the battery’s using time. • The braking system combines magnetic brake and regenerative break, greatly prolongs the using life of friction plate. • With emergency stop switch and electricity lock button, and multi-valve controlling levers, ergonomic for operation. • The adjustable regulator valve can adjust the lowing speed of the masts.
