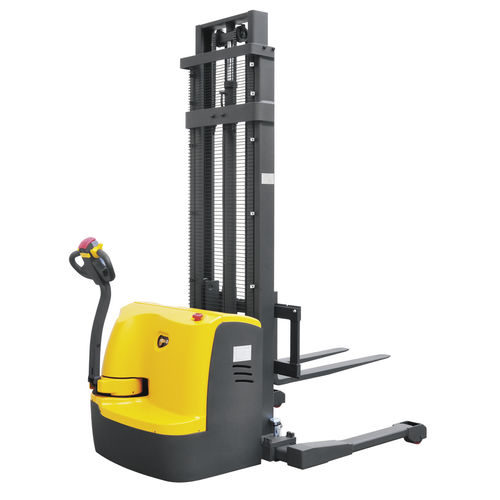

Electric stacker truck CTDR15walk-behind24 Vstraddle
Add to favorites
Compare this product
Characteristics
- Energy
- electric
- Operator
- walk-behind
- Voltage
- 24 V
- Other characteristics
- straddle
- Carrying capacity
1,500 kg
(3,306.9 lb)- Lifting height
Min.: 1,600 mm
(62.99 in)Max.: 5,600 mm
(220.47 in)- Free lift
Min.: 1,300 mm
(51.2 in)Max.: 1,940 mm
(76.4 in)- Height of mast when lowered
Min.: 1,805 mm
(71.1 in)Max.: 2,480 mm
(97.6 in)- Height of mast when raised
Min.: 2,145 mm
(84.45 in)Max.: 6,160 mm
(242.52 in)- Overall width
1,170 mm, 1,182 mm, 1,560 mm, 1,582 mm
(46.1 in, 46.5 in, 61.4 in, 62.3 in)- Overall length
1,980 mm, 2,015 mm, 2,020 mm
(78 in, 79.3 in, 79.5 in)- Fork width
100 mm
(3.9 in)- Fork length
1,070 mm
(42.13 in)- Fork thickness
35 mm
(1.38 in)- Turning circle radius
1,610 mm, 1,655 mm, 1,730 mm
(63.4 in, 65.2 in, 68.1 in)- Battery capacity
200 Ah, 240 Ah, 300 Ah
- Motor power traction
1.2 kW, 1.5 kW
(1.632 hp, 2.039 hp)- Motor power lifting
2.2 kW, 3 kW, 3.2 kW
(2.991 hp, 4.079 hp, 4.351 hp)- Travel speed
5.8 km/h, 6 km/h
(3.6 mph, 3.73 mph)- Lifting speed
Min.: 0 m/s
(0 ft/s)Max.: 0.24 m/s
(0.787 ft/s)- Weight
Min.: 940 kg
(2,072.35 lb)Max.: 1,450 kg
(3,196.7 lb)
Description
STRUCTURAL AND SAFETY:
• Advanced AC control system Intelligentized regenerative brake system.
• Multi-function display with BDI and hour meter.
• Emergency reversing device.
• Auto deceleration system utilizes regenerative braking.
• Built-in pressure relief valve protects the trucks from overloads.
• Emergency power disconnect.
• Stepless speed control.
• With lifting limit switch to shut off pump motor at the max. lifting height.
• Small turning radius standing drive motor system, water-proof and dust-proof motor structure.
SERVICEABILITY:
• Technology reduces wiring complexity.
• Side-way battery with roll-out system, convenient for replacement
