Battery-powered stacker truck STP08-FAC01-HDLC-Ex

electro-hydraulichydraulicmanual

Overview

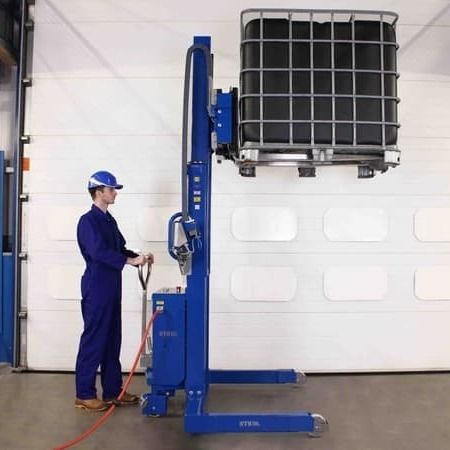

The ATEX / UKEX telescopic pedestrian stacker STP08-FAC01-HDLC-Ex is designed for zoned hazardous areas where lift height must be maximised. Suitable for handling pallets and IBCs, it provides telescopic lift up to 2740 mm (+/- 30 mm to fork tip) and can be supplied with an integrated ATEX-rated load-cell weighing system (accuracy +/- 1.25 kg). The unit is certified for use in gas and dust zones 1, 2, 21 and 22.

Key product features

• Compliant pneumatic-hydraulic lift - Air-powered pneumatic-hydraulic pump (plug-in airline) supplies oil to the lift system for powered lift and lower functions. Mandatory safety devices including emergency stop and blocking valves are fitted so forks remain locked if the airline is disconnected. The pneumatic 'Ex' lift is simpler and lower maintenance than an equivalent electric ATEX/UKEX forklift.
• ATEX certification for gas and dust zones - Manufactured and supplied to meet ATEX / UKEX requirements with Manufacturer’s Declaration of Conformity and electrical continuity/grounding provisions for safe handling of flammable materials.
• ATEX load-cell weigh scale - Heavy-duty zoned load-cell carriage measures pallet or IBC weight when lifted. The ATEX display is mounted on the head assembly and provides zero and tare functions. Weighing accuracy: +/- 1.25 kg.
• Stainless-steel clad forks - 1200 mm forks clad in stainless steel to reduce spark risk on ground contact; fabricated to UK standards with adjustable width.
• Hot-rolled lifting channels - Heavy-duty hot-rolled channels ensure stability up to 2765 mm; units are load-tested (static/dynamic) and CE / UKCA marked.
• Controllable rear-wheel steering - Ackermann rear-wheel steering for directional control, low-rolling-resistance wheels and parking brake. Custom leg configurations and CAD approval drawings available for constrained spaces.

Optional features

• Electric-hydraulic lift - For safe-area use the pneumatic STP08 can be adapted to an electric STE08 with on-board batteries powering the hydraulic lift.
• Power-drive system - Optional powered drive for long-distance movement; power-drive tiller steering available in battery or pneumatic options.
• Variable leg dimensions - Leg dimensions can be modified for facility integration and machinery interfaces; bespoke CAD drawings provided.

Specification
Safe working load (SWL): 1200 kg (600 mm load centre)
Functions: Powered lift/lower, manual push/pull
Power: Air powered - min 400 L/min, optimum 760 L/min at 6 bar (13 mm hose)
Controls: Silicone-booted buttons, emergency stop
Lift height: Telescopic, 2740 mm +/- 30 mm (top of forks)
Load cell: Heavy-duty ATEX load-cell weigh scale, accuracy +/- 1.25 kg
Forks: 1200 mm stainless-steel clad, adjustable width
Construction: Mild steel; grit blasted, primer and polyester powder coat (RAL 5010)
Guarding: Anti-static shatterproof polycarbonate
Leg dimensions: Inside straddle width 1250 mm, total outside width 1480 mm
Wheels: Front 150 mm hard nylon (ATEX features); Rear two tiller-steered 160 mm aluminium-centred with anti-static PU tyres
Noise: < 76 dBA
Compliance: CE / UKCA; ATEX / UKEX (zones 1, 2, 21, 22)

Technical data

• Model: STP08-FAC01-HDLC-Ex
• SWL: 1200 kg (600 mm load centre)
• Telescopic lift: 2740 mm +/- 30 mm (fork tip); product text reference up to 2765 mm
• Air supply: Min 400 L/min, optimum 760 L/min at 6 bar (13 mm flexible hose)
• Weighing accuracy: +/- 1.25 kg
• Forks: 1200 mm stainless-clad, adjustable width
• Finish: RAL 5010 powder coat
• Standards: CE / UKCA; ATEX / UKEX zones as specified
