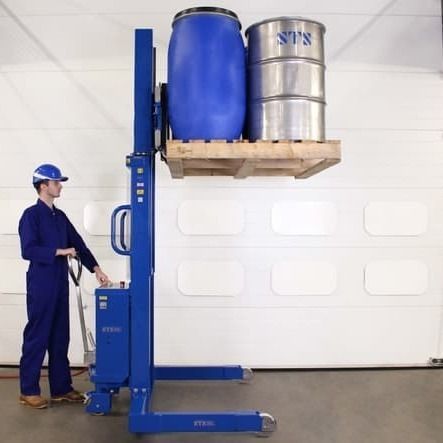

Hydraulic stacker truck STP08-FAC01-Ex

pneumaticwalk-behindfor materials handling

Product overview

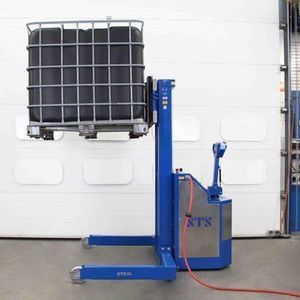

The ATEX/UKEX telescopic pedestrian stacker STP08-FAC01-Ex is designed for lifting and positioning heavy loads and IBCs where height and hazardous-area compliance are required. It provides a compact, manoeuvrable alternative to an industrial forklift for use in Zone 1, 2, 21 and 22 environments and is available with ATEX/UKEX certification.

Key product features

• Fully compliant lift system — Pneumatic‑hydraulic pump driven from a plug‑in airline connection; low maintenance, fitted with emergency stops and blocking valves to secure forks if the airline is disconnected.
• ATEX / UKEX certification (optional) — Can be supplied for use in Zones 1, 2, 21 and 22; electrical continuity and path to ground provided; supplied with Declaration of Conformity and relevant test documentation.
• Stainless steel clad forks — 304 stainless steel cladding reduces spark risk on contact with ground; forks fabricated for durability in harsh environments.
• Hot‑rolled lifting channels — Heavy‑duty hot‑rolled channels ensure stability when extending to full height; units are load tested and CE/UKCA marked with certificates.
• Controllable rear‑wheel steering — Ackermann rear‑wheel steering for precise directional control; low rolling‑resistance wheels with sealed bearings and park brakes; custom leg configurations available for integration.

Specification
Safe working load (SWL): 1200 kg
Functions: Powered lift/lower, manual push/pull
Power details: Air powered — requires min 400 L/min, optimum 760 L/min at 6 bar with 13 mm flexible air hose
Controls: Silicone‑booted buttons, emergency stop
Lift height: Telescopic, 2750 mm (top of forks)
Forks: Stainless steel cladded 1200 mm long, adjustable width
Construction: Mild steel frame; grit blasted, primer and polyester powder coat (RAL 5010)
Guarding: Anti‑static shatterproof polycarbonate
Leg dimensions: Inside straddle 1250 mm, outside width 1480 mm
Wheels: Front two fixed 180 mm steel‑centred polyurethane; Rear two tiller‑steered 160 mm aluminium‑centred electrically conductive PU
Noise: < 76 dBA
Compliance: CE / UKCA; ATEX / UKEX (Zones 1, 2, 21, 22, optional)

Optional features

• Electric‑hydraulic lift conversion (STE08) for safe‑area applications with on‑board batteries
• Power‑drive systems (battery or pneumatic) for long‑distance movement
• Load cell weighing system (ATEX/UKEX weigh scale option)
• Variable leg dimensions for machine integration or tight spaces

Technical specifications

• Model: STP08-FAC01-Ex
• SWL: 1200 kg
• Telescopic lift to 2750 mm (top of forks)
• Air powered lift (min 400 L/min; optimum 760 L/min at 6 bar)
• Stainless steel cladded forks 1200 mm, adjustable width
• Inside straddle width 1250 mm; outside width 1480 mm
• Front wheels: 180 mm PU; Rear wheels: 160 mm electrically conductive PU
• Noise < 76 dBA
• Finish: grit blasted, primer and polyester powder coat (RAL 5010)
• Compliance: CE / UKCA and ATEX / UKEX (Zones 1, 2, 21, 22, optional)
