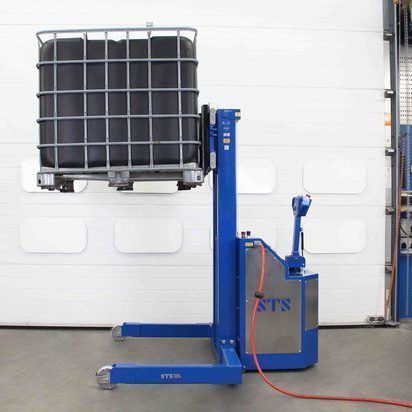

Pneumatic stacker truck STP12-FAC01-1300kg-Ex

walk-behindfor containersfor pallet

Overview

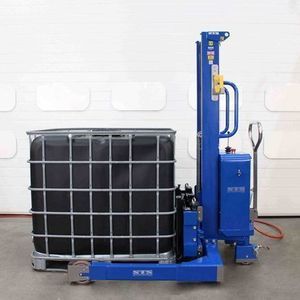

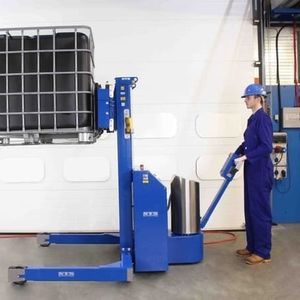

Straddle (enjambeur) stacker STP12-FAC01-HDLC-Ex, fully powered with pneumatic (air motor) drive. Rated safe working load 1300 kg; designed for handling pallets and IBCs in hazardous areas. Integrated load-cell head assembly and ATEX/UKEX display enable on-board weighing in Zone 1/2/21/22 environments. Supplied with load test certificate and Declaration of Conformity.

Key product features

• Pneumatic drive with tiller control: air-powered rear drive wheel; ergonomic tiller with self-righting gas ram, push-button pneumatic controls for precise forward/reverse movement, emergency stop and pedestrian warning horn.
• Integrated weighing assembly: load-cell head assembly with ATEX/UKEX display mounted to chassis; example unit accuracy +/- 1.25 kg.
• Stainless-steel clad forks: 304-grade stainless-clad forks to reduce thermal/ignition risk; adjustable fork width to suit varied loads; 1200 mm fork length.
• Heavy-duty construction: hot-rolled steel profiles, premium carriage bearings and FEA-analysed load-bearing components; delivered with load test certificate.
• ATEX / UKEX compliance: certified for gas and dust hazardous zones 1, 2, 21 and 22; designed for electrical continuity and safe use in explosive atmospheres.

Optional features

• Electric-hydraulic lift conversion (battery STE12) for safe-area operation.
• Variable leg/straddle dimensions for machine integration or site-specific requirements.
• Telescopic / variable lift heights: single-mast (~1450 mm) and telescopic options (up to ~2450 mm).

Certifications & compliance
Delivered with load test certificate and Declaration of Conformity. Conforms to CE / UKCA and ATEX / UKEX requirements for Zones 1, 2, 21 and 22; manufactured to applicable British/ISO standards.

Specification

• Model designation: STP12-FAC01-HDLC-Ex
• Safe working load (SWL): 1300 kg (600 mm load centre)
• Power: Air powered — min 400 L/min; optimum 760 L/min at 6 bar; 13 mm flexible air hose
• Max travel speed: 0.52 m/s (with 6 bar, 760 L/min)
• Lift height: 1460 mm ±30 mm (top of forks)
• Forks: Stainless steel cladded, 1200 mm long, adjustable width
• Construction: Mild steel; grit blasted, primer and polyester powder coat (RAL 5010)
• Guarding: Anti-static shatterproof polycarbonate
• Straddle / leg dimensions: inside 1250 mm; outside 1500 mm
• Wheels (front): two fixed 150 mm nylon with ATEX features
• Wheels (rear): two tiller-steered 160 mm nylon with ATEX features
• Noise level: <76 dBA
• Certification: CE / UKCA; ATEX / UKEX (Zones 1, 2, 21, 22)
• Warranty: 2 years plus lifetime technical product support
