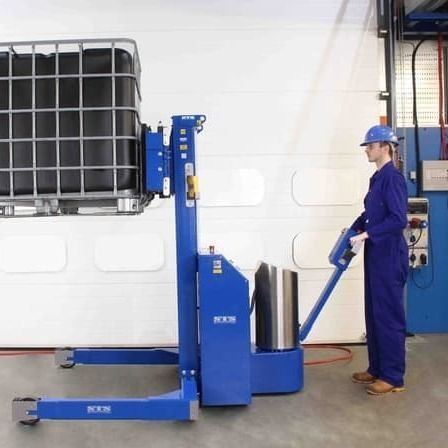

Pneumatic stacker truck STP12-FAC01-HDLC-Ex

walk-behindfor palletfor materials handling

Overview
Model STP12-FAC01-HDLC-Ex pneumatic powered stacker designed for use in ATEX / UKEX hazardous zones. Rated lift capacity 1300 kg; includes an integrated ATEX-compatible weighing system for in-operation weight recording of pallets and IBCs.

Drive and controls

• Pneumatic air-motor drive with rear drive wheel controlled by a tiller for precise manoeuvring.
• Tiller-mounted twin twist throttles provide forward/reverse motion and fine speed control for accurate placement.
• Tiller safety features include a self-righting gas ram, emergency stop button and pedestrian warning horn.

ATEX / UKEX weighing system

• Load cell head assembly integrated into the fork carriage with an ATEX-rated display mounted to the chassis for onboard weighing.
• Measurement example accuracy: ±1.25 kg.
• System designed to record weights during operation in gas and dust hazardous zones.

Stainless-clad forks

• Forks clad in 304-grade stainless steel to reduce potential ignition sources; cladding fitted to withstand industrial use.
• Fork width adjustable to handle different pallet types and loads.

Construction

• Chassis and load-bearing components fabricated from hot-rolled steel profiles with premium carriage bearings.
• FEA stress analysis applied during design to verify strength of load-bearing parts.
• Each unit supplied with a load test certificate and EU Declaration of Conformity.

ATEX / UKEX certification

• Configured and certified for gas zones 1 & 2 and dust zones 21 & 22; manufacturing includes measures for electrical continuity.

Optional features

• Electric-hydraulic lift conversion (STE12) for safe-area applications using onboard batteries to power the hydraulic lift.
• Variable leg dimensions to suit machinery integration and site constraints.
• Single- or telescopic-mast options: single mast approx. 1450 mm; telescopic up to approx. 2450 mm (dependent on configuration).

Technical specifications

• Model: STP12-FAC01-HDLC-Ex
• Manufacturer: STS
• Rated lift capacity: 1300 kg
• Weighing system accuracy (example): ±1.25 kg
• Drive: Pneumatic (air motor) with tiller-mounted controls and twin twist throttles
• Forks: 304-grade stainless steel cladding; adjustable width
• Hazardous area certification: ATEX / UKEX for gas zones 1 & 2 and dust zones 21 & 22
• Safety features: self-righting gas ram, emergency stop, pedestrian warning horn
• Optional configurations: Electric-hydraulic lift (STE12), variable leg dimensions, single or telescopic mast
• Documentation: Supplied with load test certificate and EU Declaration of Conformity
