DATRON M75
Affordable CNC milling machine M75
With a footprint of only 1,300 mm x 1,300 mm, this compact machine is equipped with a traverse path of 520 mm x 650 mm x 240 mm. The massive granite structure allows for dynamic CNC processing with high surface quality. Equipped with a robust 1.2 kW HF-spindle and a 10-fold tool changer allows precise milling at low cost.
|
|
DATRON M8 XL - 2500
The machining system M8 XL-2500 is specially designed for the precise machining of large-format workpieces or aluminium extrusions. The useable traverse path is 1,020 mm x 2,500 mm with a floor space of 1,400 mm x 3,500 mm x 1,800 mm. The solid vibration-damped construction with precision linear guides is the basis for high production quality, even whilst machining at high speed. A variety of protective covers is available on request.
|
|
DATRON M85
Affordable CNC milling machine M85
The DATRON milling machine M85 has a useable machining area of 1,020 mm x 700 mm.
Version "A" provides a table with a cut-out at the front and thus the possibility to clamp particularly high parts e.g. housings. Equipped with a dynamic control, a robust high-frequency spindle with up to 1.2 kW, 30,000 rpm and a 10-fold tool change.
|
|
DATRON ML 1500
Large-Format
Machining System
DATRON´s large-format machines of the ML series are specially designed for the fast, neat and precise machining of sheet metal. Due to the high precision of the machines outstanding results are achieved, especially when it comes to the machining of Aluminium panels.
|
|
Our FB-4 to FB-6 machines are intended in first line for production-oriented users. High chip-cutting power, precision and universalitiy are the main features of these machines. The working area is large enough to handle workpieces with a weight up to 600 kg. Our wide range of accessories covers everything you need to handle even the most complicated of milling jobs.
Produced acc. to ISO9001:1994
|
|
Equipped with the most modern of drive and control engineering, the HAMUEL portal milling machines make it possible to maximise productivity and enable the greatest possible flexibility in processing of:
- steel
- cast materials
- fine zinc alloys such as ZAMAK, KIRKSITE etc.
- aluminium
- brass alloys
- plastics such as UREOL etc.
- wood
These machines are mainly used:
- aerospace industry
- automotive industry
- model and mould making industry
- mechanical engineering industry
- tool-making industry
- contract production
Machine specifications:
The specification depend exclusively on the customer's requirements, the machining centres in GANTRY design are availble for large parts or finished body shells. The working travel X is variable according to the customers's needs.
|
|
This state-of-the-art CNC machining center features wide box ways and a rigid cast-iron frame and is designed for effective
machining of heavy parts. Large doors provide easy access to the work space. The chips are collected in a chip tray, which can
be pulled out underneath the machine.
24-station tool changer with twin-gripper arm
hardened and ground box ways
servo drives on all 3 axes
an effective coolant system ensures long tool life
automatic central lubrication reduces maintenance
pneumatic tool clamping
totally enclosed work space
Standard Equipment:
|
|
Isolated direct drive with automatic spindle cooling ensures optimum
thermal conditions at high loads
High-performance GPlus 450 control is user-friendly and network-ready
bridge design for high rigidity and maximum accuracy during high-speed machining
rapid feed speeds up to 1420 inch/min
high-power drives, spindle speeds up to 15,000 rpm
extra-large linear guides on all 3 axes
quick acceleration (up to 1 g) for shortest machining times
linear measuring system on all axes
|
|
Solid Universal Milling Machine for drilling and milling work requiring long travel distances
all 3 axes with automatic feed andrapid feeds
vertical head swivels ±45°
spindle speeds for horizontal and vertical spindle controlled by separate switch gears with oil-bath lubrication
capstan-controlled quill feed for drilling, manual micro-feed for milling
3 automatic quill feeds
for horizontal spindle operations, the top beam including head can be completely rotated on the stand
adjustable ground dovetail guideways on the X axis, and wide square guideways on Y and Z axis
clamping on all 3 axes
adjustable stops for drilling depth and table adjustment
|
|
Electronic :
- Charlyrobot CNR3 micro-step digital control.
- 3 to 5 interpolated electronic axes.
- Communication: serial RS232
- Power supply 240 volts or option 110 volts single phase + earth
- Installed power: 2KW with HF spindle 1.1 KW.
Drive :
- Stepped motor, micro-step management.
- Ball screw diameter 12 mm with a thread of 5 mm on X, Y and Z.
- Guides by prismatic rails with ball recirculation shoes on X and Y.
- Protection of axes by lip seals on X, Y and Z.
- Greaser on guide shoe and drive ball screw bushing.
Options :
- Microlubrification
- Floating suction sensor in Z, for 2D application only.
- Standard 600 W spindle with speed converter by mecanical potentiometer on the spindle. Rotation of 8000 to 24000 rpm. Maximum tightening diameter of 8 mm.
- High frequency spindle 1.1 KW without tool changer with electronic frequency converter controlled by potentiometer on the front panel. Rotation of 6000 to 24000 rpm, EX20 collet with maximum tightening diameter of 13 mm.
- 4th axis (brushless).
- Bushless servo motors with CNR3 digital control, 3 axes extensible to 5.
- Vaccum table.
|
|
Electronic :
- Charlyrobot CNR3 micro-step digital control.
- 3 to 5 interpolated electronic axes.
- Communication: serial RS232
- Power supply 240 volts or option 110 volts single phase + earth
- Installed power: 2KW with HF spindle 1.1 KW.
Drive :
- Stepped motor, micro-step management.
- Ball screw diameter 12 mm with a thread of 5 mm on X, Y and Z.
- Guides by prismatic rails with ball recirculation shoes on X and Y.
- Protection of axes by lip seals on X, Y and Z.
- Greaser on guide shoe and drive ball screw bushing.
Options :
- Microlubrification
- Floating suction sensor in Z, for 2D application only.
- Standard 600 W spindle with speed converter by mecanical potentiometer on the spindle. Rotation of 8000 to 24000 rpm. Maximum tightening diameter of 8 mm.
- High frequency spindle 1.1 KW without tool changer with electronic frequency converter controlled by potentiometer on the front panel. Rotation of 6000 to 24000 rpm, EX20 collet with maximum tightening diameter of 13 mm.
Safety :
- Integral cover with 180° vision, very bright.
- Compliant with the European Directive "machine n° 98/37/CE".
- "Punch button" type emergency stop.
- Cover opening detection.
- Electromagnetic cover locking, controlled by the spindle.
|
|
Universal Milling Machines with Cycle Control and Vertical Milling Head
Adjustable cams allow machine operation in semi-automatic cycle left/right or in automatic oscillating mode
Counter milling cut feature
Table swivels ± 45°
Sturdy square guide in both z and y directions (scraped on the UFM 4)
X-axis provided with dovetail guide
Electromagnetic clutch for feed gear
Clamping device in all axes
All operating controls are arranged centrally and within reach
|
|

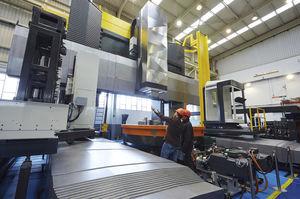

MX FLOOR TYPE MILLING MACHINE (LINEAR GUIDES)
SYMMETRIC COLUMN WITH CENTERED HEADSTOCK GUIDED ON THE FRONT & REAR SIDE
RAM DROP COMPENSATION SYSTEM
RAM GUIDED ON 4 LINEAR GUIDES
FEEDS : 25 M/MIN
TRAVELS : X=4.000-30.000 mm Y=2.000-4.500mm Z=1.300-1.500-1.650mm
HORIZONTAL BORING HEAD
UNIVERSAL HEAD 2,5ºx2,5º/1ºx1º/0,1ºx0,1º - 37 KW - 5.000/24.000 RPM
TWIST HEAD 2 CONTINUOUS AXES 0,001º: A +/-105º C +/- 185º 5.000/24.000 RPM ( MECHANICAL & ELECTROSPINDLE HEADS )
ATC TOOL CHANGER : 20-120 TOOLS
AAC PICK UP STATION : 2-6 ATTACHMENTS
ROTARY TABLES : 6-120 TONS 1000x1000 mm UP TO 4.000x5.000 mm
|
|
The new horizontal machine series for the operators with complex demands - starting immediately, the complete DMC H series is available in duoBLOCK® design. This horizontal machine series from DECKEL MAHO offers users custom-tailored machine configurations, from performance milling with linear drives to maximum feed power for high-volume machining.
|
|

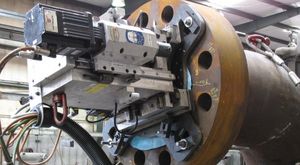

The D.L. Ricci Corp. "3 axis" Portable Milling Machines are our most versatile and accurate milling machine tool, capable of traveling and machining in all axis (XYZ). They are ideal for onsite machining large and small rectangular areas accurately. These Portable Mills can be clamped or bolted directly onto the part being machined or fabricated. Setup jigs and parallel-mounting fixtures can be used to position the portable mills for difficult work area conditions. Any machinist familiar with machining practices will find the Portable Milling Machines simple to setup and operate, even upside down.
These milling machine tools are designed for rugged onsite machining such as milling, drilling and boring applications on jobs that were previously thought to be impossible without extensive disassembly. The precision ground dovetails with adjustable gibs, to provide smooth, accurate travel in all axis.
When used as a facing mill, this milling machine tool will do a quick job of facing off pitted or misaligned surfaces, restoring the original condition of the part being machined. Servo power feeds are available for all axis, allowing the application of smooth and consistent power feed throughout the speed range, both in forward and reverse.
|
|
Electronic :
Charlyrobot CNR3 micro-step digital control.
3 to 5 interpolated electronic axes.
Communication: serial RS232
Power supply 240 volts or option 110 volts single phase + earth
Installed power: 2KW with HF spindle 1.1 KW.
Drive :
Stepped motor, micro-step management.
Ball screw diameter 12 mm with a thread of 5 mm on X, Y and Z.
Guides by prismatic rails with ball recirculation shoes on X and Y.
Protection of axes by lip seals on X, Y and Z.
Greaser on guide shoe and drive ball screw bushing.
Options :
Microlubrification
Floating suction sensor in Z, for 2D application only.
Standard 600 W spindle with speed converter by mecanical potentiometer on the spindle. Rotation of 8000 to 24000 rpm. Maximum tightening diameter of 8 mm.
High frequency spindle 1.1 KW without tool changer with electronic frequency converter controlled by potentiometer on the front panel. Rotation of 6000 to 24000 rpm, EX20 collet with maximum tightening diameter of 13 mm.
4th axis (brushless).
Bushless servo motors with CNR3 digital control, 3 axes extensible to 5.
Vaccum table.
Safety :
Integral cover with 180° vision, very bright.
Compliant with the European Directive "machine n° 98/37/CE".
"Punch button" type emergency stop.
Cover opening detection.
Electromagnetic cover locking, controlled by the spindle
|
|
A modern machine with 5 NC-axes for parts of medium weight up to 6 tons and a working envelope of 2.5 x 2 x 1.2 m erected on an even foundation and featuring performance parameters to meet highest demands in metalworking industry.
The all-around enclosure permits a diameter of rotation of work pieces to be cut of 2200 mm. Chip and coolant discharge facilities are arranged above floor level. Automatic tool and pallet changers sustain universal application of machine as a machining center.
Comprehensive accessories such as various milling heads, NC facing heads and support bearings that can also be changed automatically are to enhance the universal application of this UNION machine.
|
|
The strenghts :
* Rigid steel welded structure for
intensive machining
* Feed rate up to 12m/min (servo-brushless version).
* A wide and versatil range of 8 different sizes
* Z 350 option for 3D jobs
* Very rapid return on investment
* Quality and performances adapted to serial production
* Ease of use, like all Charlyrobot’s machines.
* Compliant with EC rules and safety directives
The charlyPRO range offers 8 differents machine sizes with a large choice of High Frequency spindles. All models are avalaible with servo-brushless motorisation and can be equiped with many professional options like vacuum table or automatic pneumatic chip suction system. The charlyPRO gives you the best value for money in its market segment. It allows you to start with cnc machining with the safety, efficiency and quality of a serial production equipment.
charlyPRO becomes the reference equipment for soft materials and soft metals applications such as engraving, sign and display making, modeling and cutting works.
|
|
Drake GS:RM™Heavy Duty Rack Mills
The Drake GS:RM (Gear System: Rack Mill) produces steering racks for a major automotive manufacturer. Cycle time is less than 35 seconds. Its performance earned an overall perfect ten rating from the auto parts maker.
This four-axis machine features a customized automatic loading system designed to use specific alignment features that assure accurate, quick, repeatable loading. High-powered table vice clamps secure the part and feed jaws accommodate two part configurations with no changeovers required.
An available power helix on the milling spindle assists in fast changeovers to a variety of part configurations producing angles up to plus or minus forty-five degrees.
|
|
Baileigh’s line of vertical milling machines are the perfect fit for any machine shop or tool room. All of our vertical mills come with NST 30 or 40 spindles for an extra rigid transfer of power from the inverter driven (most are Yasakawa®) head. Meaning no pulleys and gear drives but only offering solid power to the cutter for heavier cuts and longer tooling life. The inverter drives also means that each model is variable speed.
Power drives are on the X, Y, and Z as well as Digital Read Outs (DRO’s are Mitutoya® in most cases) on several axis allowing for smoother chip removal, hands free operation, and tight tolerances. On most models of our milling machines there is an Air Draw Bar system to easily load and unload tooling.
Heavy Meehanite® castings and hardened and ground ways treated with Turcite® B coatings ensure heavier cuts and offers very tight tolerances for decades of service. Each machine is finished off nicely with way skirts, coolant skirts and a Halogen Light for good visibility. A Baileigh vertical knee mill is finished properly and all features are factory installed offering the customer the confidence that our milling machines are of a higher quality than most.
|
|
Laboratory Milling Machine, Model 160
For removing the work-hardened edges of tensile test specimens after blanking. The tensile test specimens are clamped individually of in packs into a milling fixture, then both sides are guided past the milling cutter. The result is a favourable parallelism in the measuring zone of the tensile test bar. The speed of the milling cutter is infinitely variable and can be preset between approx. 4,000 - 8,000 min-1 achieving an optimal cutting speed appropriate to the material.
|
|
■ Ideal for machining tough large parts
■ Positioning Accuracy: +/-0.000120" / full stroke
Repeatability: +/-0.00004"
■ Solid Boxways with 5 year warranty
■ Rigid Meehanite Cast Iron Construction
■ Powerful 2-Step (40 taper) and 3-Step (50 taper) Geared Spindles deliver high torque and high-speed for maximum machining flexibility
■ High Pressure Coolant System, Intelligent Advance Control System, Ballscrew Cooling standard
■ Table traverse design for optimum work envelope utilization
|
|
Electronic :
- Charlyrobot CNR3 micro-step digital control.
- 3 to 5 interpolated electronic axes.
- Communication: serial RS232
- Power supply 240 volts or option 110 volts single phase + earth
- Installed power: 2KW with HF spindle 1.1 KW.
Drive :
- Stepped motor, micro-step management.
- Ball screw diameter 12 mm with a thread of 5 mm on X, Y and Z.
- Guides by prismatic rails with ball recirculation shoes on X and Y.
- Protection of axes by lip seals on X, Y and Z.
- Greaser on guide shoe and drive ball screw bushing.
Options :
- Microlubrification
- Floating suction sensor in Z, for 2D application only.
- Standard 600 W spindle with speed converter by mecanical potentiometer on the spindle. Rotation of 8000 to 24000 rpm. Maximum tightening diameter of 8 mm.
- High frequency spindle 1.1 KW without tool changer with electronic frequency converter controlled by potentiometer on the front panel. Rotation of 6000 to 24000 rpm, EX20 collet with maximum tightening diameter of 13 mm.
Safety :
- Integral cover with 180° vision, very bright.
- Compliant with the European Directive "machine n° 98/37/CE".
- "Punch button" type emergency stop.
- Cover opening detection.
- Electromagnetic cover locking, controlled by the spindle.
|
|
|
The HSM 600 ProdMod is a high speed machine for use in production. The HSM tried and tested basic machine is used as the base which captivates by virtue of its dynamics, compactness, version variety and ergonomics. ProdMod's configuration additionally offers a tool storage tower which is scaleable for 120, 170 or 220 tool positions. A machine cover with chip rinsing nozzles as well as different configurations with regard to chip conveyors and coolant preparation systems. In addition to the Mikron pallet changers there is also an interface available for connecting other robots.
|
|
CNC BED TYPE HORIZONTAL AND VERTICAL MILLING MACHINE
STANDARD
MODEL 20 KF
- Centralized control panel.
- Digital numerical Control.
- Push-button panel with electronic handwheel.
- Ball screws with double preloaded nut.
- Counterweight with direct hydraulic cylinder in vertical movement.
- The three movements guided with preloaded roller packs over hardened and ground steel guideways.
- Hydromechanical tool clamping.
- 45º head, manual rotations.
- Spindle orientation.
- Spindle taper: ISO 50.
- Hydraulic unit.
- Automatic lubrication.
- Electrical cabinet , with temperature conditioner.
- Coolant equipment, tank 160 l, 60 l/min - 2,5 bar. (*)
- Protections.
|
|
The F1 Travelling-Column Miller addresses to customers who want to combine the size of a boring mill with the universal and dynamical features of an up-to-date miller. This machine is of particular interest for manufacturers of one-offs or small batches thanks to the possibility of five-sided cutting in one setup, associated with high machine dynamics and precision.
- Five-sided cutting in one setup thanks to the use of various milling heads, automatically changeable on request
- High machine dynamics because of rapid feed rates up to 40 m/min and axis acceleration rates up to 5,5 m/s2
- Spindle speed of milling heads up to 5000 rpm
- Sturdy and rigid ram with combined sliding/ antifriction guideways
- Sagging compensation of ram, hydraulically adjustable
- Stand-alone or travelling tool magazine in various configurations of 24 to 240 pockets
- Central arrangement of all service units at one location only
|
|
CNC MOVING COLUMN WITH FIXED TABLE-BED HORIZONTAL AND VERTICAL MILLING MACHINE
HIGH PERFORMANCE
MODEL KMC-AR
- Centralized control panel.
- Digital numerical control.
- Push-button panel with electronic handwheel.
- Rack and double motor and pinion in longitudinal movement.
- Ball screws in cross and vertical movements.
- Counterweight with direct hydraulic cylinder in vertical movement.
- The three movement guided with preloaded roller packs over hardened and ground steel guideways.
- Hydromechanical tool clamping.
- 45º head, manual rotations.
- Hydraulic unit.
- Automatic lubrication.
- Electrical cabinet, with temperature conditioner.
- Protections:
- Screen with doors (at the front and lateral sides)
- Fences (at the back part)
|
|
|
|
