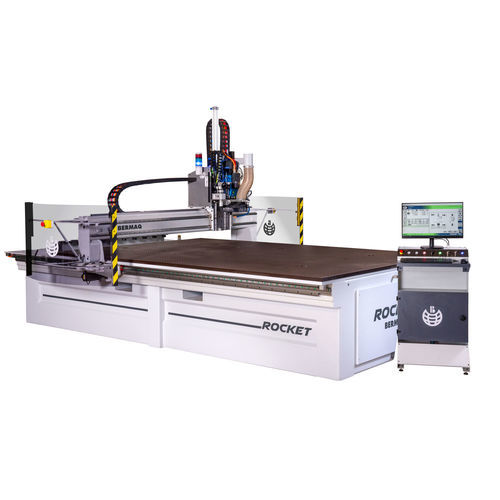

3-axis CNC milling machine ROCKET

verticalfor aluminumfor wood

Description
The ROCKET 3-axis CNC machining center by BERMAQ is engineered for machining soft and non-ferrous materials such as plastics, PMMA, wood, Solid Surface, Alucobond® and resins. It provides a compact 3-axis solution for production of precise 2D and 3D parts with integrated vacuum clamping and an 8-position linear toolchanger.

Applications

• Graphic arts: graphic finishes, printed panels, advertising panels and high-precision engraving.
• Signage and visual communication: dimensional signs, illuminated signs, aluminium letters and complex engravings.
• Industrial machining: components for appliances and technical machining of composites, plastics, foam, wood and aluminium.
• Digital carpentry & furniture: production of furniture parts, frames, decorative carvings and three-dimensional reliefs.
• Construction & façades: machining of cladding panels (Corian®, aluminium, PVC, Alucobond®).

Materials

• Plastics / Acrylic (PMMA)
• Solid Surface / Resins
• Wood / MDF
• Aluminium
• Composite materials

Technical specifications (excerpt)

• Axes: 3
• Structure: Mobile bridge
• Working area (options): 1500 x 2050 x 180 mm; 2050 x 2050 x 180 mm; 3100 x 2050 x 180 mm; 4100 x 2050 x 180 mm
• Milling head power: 4–8 kW (ISO30)
• Rated speed: 12,000 rpm
• Maximum speed: 24,000 rpm
• Vacuum pump: 250 m³/h or 530 m³/h (ASD turbine)
• Tool changer: 8-position linear
• Tool setter: Yes
• Workpiece clamping: Vacuum (slotted table)
• Control panel: Revolving
• Cooling: Air
• Worktable: Phenolic resin grooved table
• Positioning speed: X 20 m/min • Y 20 m/min • Z 15 m/min
• Lubrication: Manual
• Transmission: X,Y pinion-gear • Z spindle
• * Values recommended; configurable by option
