3-axis CNC milling machine VICTORY
5-axisverticalfor aluminum

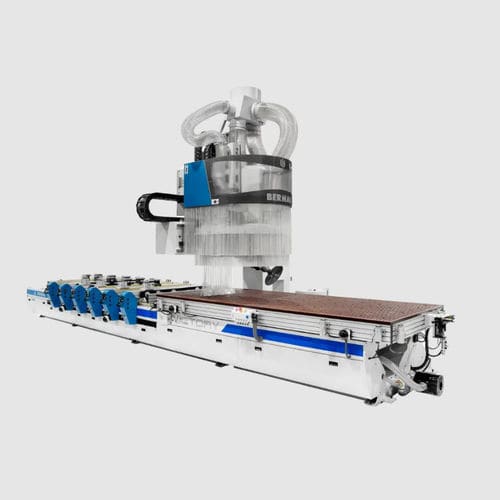

3-axis CNC milling machine - VICTORY - BERMAQ - 5-axis / vertical / for aluminum
3-axis CNC milling machine - VICTORY - BERMAQ - 5-axis / vertical / for aluminum
3-axis CNC milling machine - VICTORY - BERMAQ - 5-axis / vertical / for aluminum - image - 2
3-axis CNC milling machine - VICTORY - BERMAQ - 5-axis / vertical / for aluminum - image - 3
3-axis CNC milling machine - VICTORY - BERMAQ - 5-axis / vertical / for aluminum - image - 4
3-axis CNC milling machine - VICTORY - BERMAQ - 5-axis / vertical / for aluminum - image - 5
3-axis CNC milling machine - VICTORY - BERMAQ - 5-axis / vertical / for aluminum - image - 6
3-axis CNC milling machine - VICTORY - BERMAQ - 5-axis / vertical / for aluminum - image - 7
3-axis CNC milling machine - VICTORY - BERMAQ - 5-axis / vertical / for aluminum - image - 8
3-axis CNC milling machine - VICTORY - BERMAQ - 5-axis / vertical / for aluminum - image - 9
3-axis CNC milling machine - VICTORY - BERMAQ - 5-axis / vertical / for aluminum - image - 10
3-axis CNC milling machine - VICTORY - BERMAQ - 5-axis / vertical / for aluminum - image - 11
Add to favorites
Compare this product

Characteristics

Number of axes
3-axis, 5-axis
Spindle orientation
vertical
Machined material
for aluminum, for wood, for composites
Structure
bridge
Spindle mount
HSK F63
Number of tool stations
30 tools, 12 tools, 32 tools
Associated functions
drilling
Applications
for aluminum profiles, for the plastics industry, for the aluminum industry, for furniture, for the wood industry, for windows and doors
Other characteristics
modular
X travel

6,250 mm
(246.06 in)

Y travel

1,680 mm
(66.14 in)

Z travel

600 mm
(23.62 in)

Rotational speed

Min.: 12,000 rpm
(75,398 rad.min-1)

Max.: 24,000 rpm
(150,796 rad.min-1)

Power

Min.: 7 kW
(9.52 hp)

Max.: 18 kW
(24.47 hp)

Description

The VICTORY CNC milling machine stands out for its great versatility. It is primarily designed for machining a wide variety of materials (wood, plastics, non-ferrous metals, etc.) and high-speed applications. Its compact design makes it a robust and modular CNC milling machine. Its structure allows easy customization of the machine with optimal solutions tailored to each customer's production requirements. The VICTORY model is known for its ease of use, reliability, high robustness, and speed. The versatility and power of this machining center make it ideal for small and medium-sized woodworking companies. Its compact and efficient design reduces installation space and allows for direct handling from the machine. Within this range, you’ll find 3- to 5-axis solutions. For the 3-axis milling machine, a C-axis can be integrated, offering greater flexibility for the use of aggregates and enabling a wide range of applications for machining kitchen and office furniture, solid wood, as well as components for stairs, windows, and doors. The versatility and power of this machining center make it ideal for small and medium-sized woodworking companies. Its compact and efficient design reduces installation space and allows for direct handling from the machine. Within this range, you’ll find 3- to 5-axis solutions. For the 3-axis milling machine, a C-axis can be integrated, providing greater flexibility for the use of aggregates and enabling a variety of applications for machining kitchen and office furniture, solid wood, as well as components for stairs, windows, and doors. Our machine offers a wide range of options to optimize productivity and precision in operation.

Catalogs

No catalogs are available for this product.
