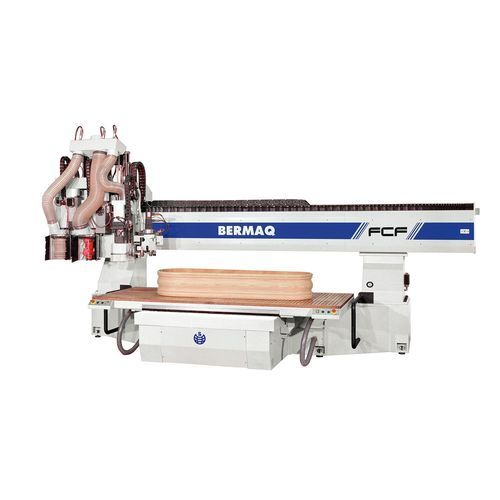

3-axis CNC milling machine FCF
5-axisverticalfor wood

3-axis CNC milling machine - FCF - BERMAQ - 5-axis / vertical / for wood
3-axis CNC milling machine - FCF - BERMAQ - 5-axis / vertical / for wood
3-axis CNC milling machine - FCF - BERMAQ - 5-axis / vertical / for wood - image - 2
3-axis CNC milling machine - FCF - BERMAQ - 5-axis / vertical / for wood - image - 3
3-axis CNC milling machine - FCF - BERMAQ - 5-axis / vertical / for wood - image - 4
Add to favorites
Compare this product
Go to the BERMAQ website for more information

Characteristics

Number of axes
3-axis, 5-axis
Spindle orientation
vertical
Machined material
for wood, for resin
Structure
with moving table
Spindle mount
HSK F63, ISO 30
Applications
for small workpieces, for furniture
Other characteristics
modular, with automatic tool changer
X travel

Max.: 4,000 mm
(157.48 in)

Min.: 2,000 mm
(78.74 in)

Y travel

Max.: 2,000 mm
(78.74 in)

Min.: 1,500 mm
(59.06 in)

Z travel

Max.: 450 mm
(17.72 in)

Min.: 250 mm
(9.84 in)

Description

Computerized Numerically Controlled Machining Centre (CNC) prepared for large productions. Optionally, two moving tables are available to allow an uninterrupted production. It mainly produces small or medium parts on wood, derived products and resins. Its main users are furniture manufacturers (classical, Kitchen and bathroom furniture), manufacturers of modular parts and professionals of the funeral industry. Technical specifications: Milling heads to work wood and its derived products Working table with different dimensions: Vacuum pump 140 m3 /h o 250 m3 /h Automatic lubrication CNC Siemens Custom manufacturing according client specifications Applications: Tables Wood chairs Wood beds Coffins Additional Heads: Multiple drilling unit Sawing unit 0/45º 0/90º Automatic screwdrivers Fixed angular milling head or controlled by the CNC 360º Aggregates: Straight sawing aggregate at 90º or tilting aggregate with different possibilities Straight milling aggregate at 90º or tilting aggregate with different possibilities Multiple drilling aggregate Optional Accessories: C axis for aggregates
