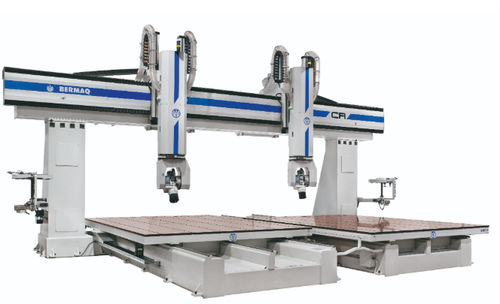

5-axis CNC milling machine CR-2

verticalfor aluminumfor wood

Description
5-axis CNC milling machine with two useful work tables and configurable single or dual simultaneous heads, designed for high-speed machining of aluminium and similar materials. Modular construction enables tailored configurations for continuous 5-axis production.

Short description

• Two useful work tables for alternating loading/unloading to maximize productive time in continuous operation.
• Modular structure allowing 1 or 2 simultaneous heads for scalable production capacity.
• Designed for high-speed machining of aluminium, wood and technical plastics.

Applications

• Manufacture of foundry patterns and casting models.
• Prototypes and special-design parts.
• Models for composite parts on polystyrene or polyurethane cores.

Features

• Prepared for 5 controlled axes.
• Configurable milling heads with multiple tool mount options.
• Combined units optimized for aluminium machining.
• Option for manual or automatic tool change.
• Equipped with HSK spindle interface.
• Useful working area:
  • Length: 2,000–4,000 mm
  • Width: 1,500–2,000 mm
  • Maximum useful Z height: 1,250 mm
• Automatic lubrication.
• Custom manufacturing available to customer specifications.

Models and materials

• Production of high-precision models on high-speed 5-axis CNC machines. Compatible with wood, plastics and aluminium using CAD/CAM workflows to meet client requirements.

Materials compatible with the CR-2

• Aluminium and light alloys: roughing and finishing at high speed for models, molds and technical parts.
• Wood and derived boards: MDF, plywood and solid wood.
• Technical plastics: polystyrene, polyurethane, PVC and derivatives.
• Epoxy paste: models on polystyrene or polyurethane cores for fiber applications.
• Technical resins: prototypes, molds and patterns for casting and thermoforming.

Construction and engineering
The CR-2 is engineered for structural rigidity and precision to support continuous industrial production in 5-axis operations. Its modular design allows configuration by dimensions, number of heads, tool change system and other customer requirements to integrate into specific production processes.

Service and support

• BERMAQ provides technical support from specification to commissioning, with optional preventive maintenance contracts to maximize availability and extend service life.

Technical specifications

• Brand: BERMAQ
• Model: CR-2
• Axes: 5 controlled axes
• Tables: Double useful work tables
• Heads: Configurable with 1 or 2 simultaneous heads
• Tool change: Manual or automatic (optional)
• Spindle interface: HSK
• Useful working area (L × W): Length 2,000–4,000 mm; Width 1,500–2,000 mm
• Maximum useful Z height: 1,250 mm
• Target materials: Aluminium and light alloys, wood and derived boards, technical plastics, epoxy paste, technical resins
• Automatic lubrication: Yes
• Customization: Custom manufacturing available according to client requirements
