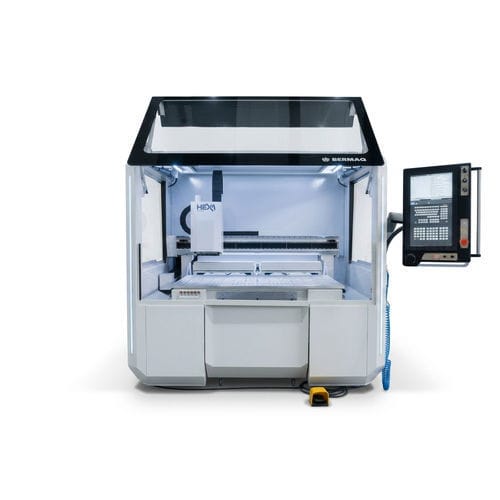

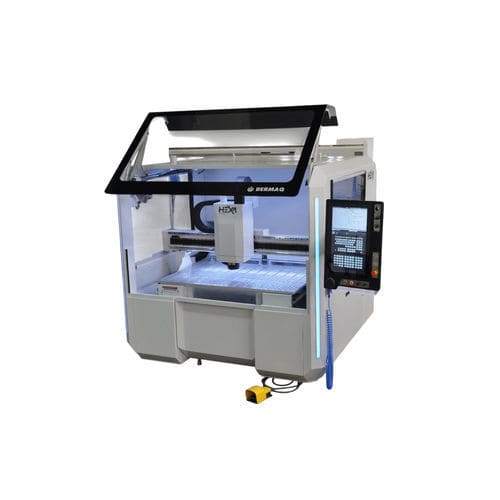

3-axis CNC milling machine HEXA

universalfor aluminumfor wood

Description
The HEXA is a high-speed CNC milling machine equipped with Direct Drive linear motors on the X and Y axes, designed for machining, cutting, engraving, milling and polishing a wide range of materials in demanding industrial environments. Its anti-vibration structure (steel frame with polymer concrete) delivers thermal and mechanical stability at high operating speeds. The machine targets applications requiring precision, repeatability and high productivity.

Applications

• Automotive: machining of panels, molds and technical parts for vehicles.
• Aerospace: machining of aluminum, composites and carbon fiber with tight tolerances.
• Advanced industry: technical parts in high-density plastics, resins and composite materials.
• Prototyping and model making: prototype production and tooling with strict dimensional requirements.
• Graphic arts and signage: precision engraving and cutting on soft and semi-hard materials.

Equipment
The HEXA integrates Direct Drive linear motors on X and Y axes, eliminating traditional mechanical transmission elements. It features a high-speed HITECO QD-2 6.5 kW electrospindle with HSK-E40 taper (ceramic bearings and liquid cooling), internal pressurization, fast tool change, a 12-position linear tool magazine integrated into the bed (compatible with HSK-E40 and ER-2 collets), grid and four CNC-controlled vacuum zones, modular workholding options (T-slots, tapped points or multi-drill systems), and a MITSUBISHI M80VW/M80W CNC control for process management.

Features

• Anti-vibration steel structure with polymer concrete to absorb machining vibrations and ensure consistent finishes.
• High positioning performance and dynamics thanks to Direct Drive linear motors, reducing downtime between operations.
• High-speed spindle delivering fine surface finishes with thermal stability and dust protection.
• 12-position linear tool magazine (tools up to Ø 35 mm and 100 mm length).
• Automatic lubrication and climate-controlled electrical cabinet to maximize uptime and minimize maintenance.
• Grid and four CNC-controlled vacuum zones; modular table configuration options.

Options

• 3 kW (1,400 m³/h) high-pressure vacuum cleaner
• Additional linear change for positions (extended tool positions)
• BLUM TC76 workpiece probe
• VORTEX tool cooling system
• Air/oil tool lubrication (LUBETOOL)

Materials compatible

• Technical plastics: PVC, polystyrene, nylon, PETG derivatives
• Acrylics / methacrylate: cutting and engraving with optical finishing
• Aluminum and light alloys: panels, profiles and 3D machined parts
• Composites: carbon fiber, fiberglass, Alucobond and other composite materials
• Wood and derived boards: MDF, plywood, solid wood
• Technical foams and resins: modelling, casting and specialised machining

Technical specifications

• Axes: 3
• Working area (X x Y x Z): 1.500 x 1.000 x 200 mm
• Milling head / Spindle: HITECO QD-2 6.5 kW (HSK-E40)
• Rated speed: 12,000 rpm
• Maximum speed: 36,000 rpm
• Vacuum pump (base): 100 m3/h
• Tool changer: 12 - 24 positions (12-position linear magazine standard)
• Tool setter: BLUM Z-NANO
• Control panel: CNC MITSUBISHI M80VW / M80W
• Lubrication: Automatic
• Transmission / Movement: X, Y: Direct Drive linear motors
• Positioning speed: up to 100 m/min in X and Y
