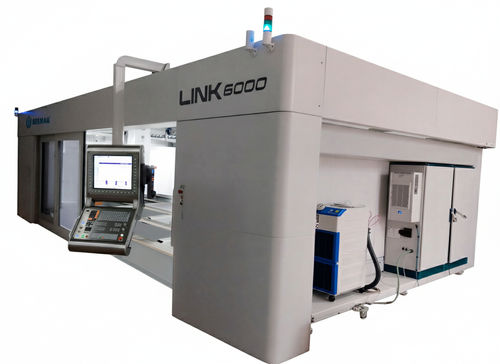

5-axis machining center LINK 6.000

universalfor aluminumfor composites

Description
The LINK 6.000 model is a large 5-axis enclosed machining center. Its compact structure, high power and versatility enable high-speed milling of non-ferrous materials (technical plastics, thermoformed plastics and derivatives). Thanks to its robust moving-bridge design it delivers high feed rates together with excellent precision and surface finish. The enclosed construction fully isolates moving parts to improve operator safety and reduce environmental effects (noise, fumes, etc.).

Applications

• Milling of molds and patterns in aluminum and composite materials
• Resin machining
• Trimming and cutting of structural components
• Machining of carbon fiber and light alloys
• Technical plastics

Key features and description
The machine offers two work zones separated by a movable central partition; it can operate with a single zone or both simultaneously. Usable working area up to 6,000 mm (X) x 1,900 mm (Y) x 1,000 mm (Z). Rotary axes C and A have ranges of ±200° and ±120° respectively, using Harmonic Drive transmission. High rapid traverse speeds: up to 50 m/min on X and Y, 20 m/min on Z, and up to 9,000°/min on C and A. Spindle: 15 kW liquid-cooled motor, nominal 12,000 rpm, max 24,000 rpm (HSK / E40). Controlled by Siemens Sinumerik One CNC. The machine includes three linear tool magazines integrated in the Y-axis bridge (8 positions each, 24 positions total) for fast automatic tool changes. Tool setter included. Workpiece clamping: table for mechanical clamping (options available).

Technical characteristics (table)
Axes: 5
Structure: Enclosed
Working area: 6,000 x 1,900 x 1,000 mm (X,Y,Z)
Milling head: 15 kW
Rated speed: 12,000 rpm
Maximum speed: 24,000 rpm
Vacuum pump: ❌
Tool changer: Linear magazines, 8 positions each (3 magazines = 24 positions)
Tool setter: Yes
Workpiece clamping system: Table for mechanical clamping
* Recommended values; configurable

Characteristics / technical specifications

• Model: LINK 6.000
• Axes: 5
• Structure: Enclosed
• Usable working area (X x Y x Z): 6,000 x 1,900 x 1,000 mm
• Rotary axes ranges: C ±200°, A ±120° (Harmonic Drive)
• Linear movement speeds: up to 50 m/min (X,Y), 20 m/min (Z)
• Rotary axes speed: up to 9,000°/min (C and A)
• Milling spindle: 15 kW liquid-cooled motor
• Spindle nominal speed: 12,000 rpm
• Spindle maximum speed: 24,000 rpm (HSK / E40)
• Control: Siemens Sinumerik One CNC
• Tool magazines: three linear magazines on Y-axis bridge, 8 positions each (24 total)
• Tool changer: linear 8-position magazines
• Tool setter: Yes
• Workpiece clamping: Table for mechanical clamping (options available)
• Typical applications: aerospace, automotive, mold & die manufacturing, large-format 3D machining
