5-axis CNC milling machine SG-5

verticalfor aluminumfor wood

Description

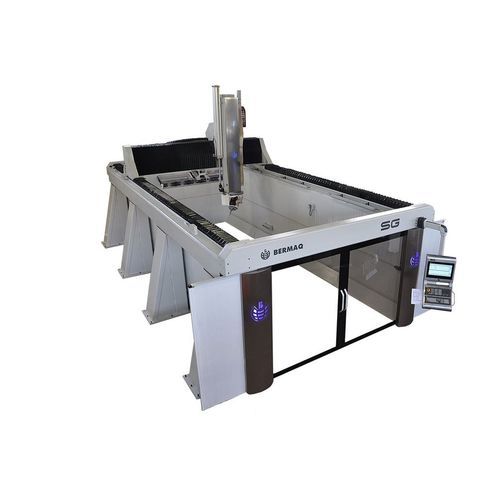

The SG-5 is a 5-axis gantry CNC milling machine designed to machine a wide range of materials including aluminum, composites, polystyrene, acrylic, wood, resins and solid surface materials. Its modular architecture enables configuration for model making, edge finishing and production tasks across marine, automotive, aerospace, rail and stagecraft industries.

Applications

• Aeronautical: machining of composite components and tooling patterns
• Marine: models, lightweight structures and prototyping for vessels
• Model making and prototyping: scale models, architectural elements and custom parts
• Composites: cutting and machining of technical foams, polyurethane and resins
• Molds and dies: production of patterns for thermoforming and casting
• Art and stage design: scenic elements and large-format decorative parts

Materials

• Aluminum and light alloys: roughing and finishing of structural parts
• Composites and laminates: carbon fiber, fiberglass and technical laminates
• Acrylic and methacrylate: cutting and machining with optical finishing
• Wood and derived boards: MDF, plywood and solid wood
• Technical resins: prototypes, molds and tooling
• Solid Surface: Corian and similar materials

Equipment & Performance Highlights
Gantry structure provides rigidity and stability for large-volume parts and complex geometries. Open or fully enclosed configurations available for loading and safety. High-performance spindle options from 15 kW to 24 kW with speeds up to 36,000 rpm. Linear automatic tool changer available in 12, 24 or 36 positions (optionally up to 40). X/Y transmission by rack-and-pinion and Z by ball screw; optional dual servomotor master-slave configuration. Advanced CNC control for simultaneous 5-axis machining, climate-controlled electrical cabinet and intuitive HMI for extensive programming.

Options

• Non-contact tool measurement device for calibration and break detection
• Wireless workpiece probing system
• Tool cooling and mist systems
• Vacuum pump and vacuum table options for improved workholding
• Multiple milling heads to match task requirements
• Automatic tool changer up to 40 positions
• Full enclosure with front doors for dusty or regulated environments

Technical characteristics (summary)

• Model: SG-5
• Structure: Gantry
• Spindle power: 15 kW – 24 kW (configurable)
• Rated spindle speed: 10,000 rpm (typical)
• Maximum spindle speed: 36,000 rpm
• Tool changer: 12 / 24 / 36 positions (option up to 40)
• Workpiece clamping: clamping table (vacuum/slotted table optional)
• Control system: SIEMENS
• Positioning speeds: X 60 m/min, Y 60 m/min, Z 25 m/min
• Transmission: X,Y rack-and-pinion; Z ball screw
• Lubrication: automatic
• Electrical cabinet: climate-controlled (optional)
