5-axis CNC milling machine FCN-A
verticalfor compositesfor resin

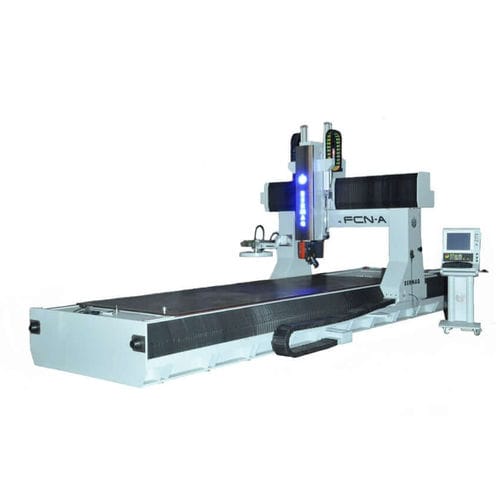

5-axis CNC milling machine - FCN-A - BERMAQ - vertical / for composites / for resin
5-axis CNC milling machine - FCN-A - BERMAQ - vertical / for composites / for resin
5-axis CNC milling machine - FCN-A - BERMAQ - vertical / for composites / for resin - image - 2
5-axis CNC milling machine - FCN-A - BERMAQ - vertical / for composites / for resin - image - 3
5-axis CNC milling machine - FCN-A - BERMAQ - vertical / for composites / for resin - image - 4
Add to favorites
Compare this product
Go to the BERMAQ website for more information

Characteristics

Number of axes
5-axis
Spindle orientation
vertical
Machined material
for composites, for resin, for aluminum
Number of tool stations
12 tools
Applications
for the automobile industry, for the aeronautical industry, for the aerospace industry, for titanium
Other characteristics
modular
X travel

Max.: 15,000 mm
(590.55 in)

Min.: 3,000 mm
(118.11 in)

Y travel

Max.: 4,000 mm
(157.48 in)

Min.: 2,000 mm
(78.74 in)

Z travel

Max.: 1,500 mm
(59.06 in)

Min.: 800 mm
(31.5 in)

Power

15 kW
(20.39 hp)

Description

CNC machining centre specially designed to machine high-speed materials such as aluminum, titanium, composites, resins, etc. Ideal machine for the production of models and millingof work pieces. It covers the requirements of sectors such as marine, automotive, aerospace, railway, etc. Thanks to its concept of aerial guide and modular structure, it is the perfect choice for machining large parts when using the whole working area. Aplications Marine industry: hullmilling, nauticalfurniture, piersand, workpiecesmanufacturing Technical Specifications High power milling head: A pair axis: 1000Nm C pair axis: 1200Nm A axis: +/- 120º C axis: +/- 245º Automatic lubrication Suction hood system VIP4TOOLS air-oil mix cooling system Tool lubrication system by cutting oil Phenolic resin table with vacuum system Vacuum pump system 290 3/h Air-conditioned control cabinet Numeric control: HEIDENHAIN iTNC 640 SIEMENS 840D SL OPTIONALS: A & C axes automatic brake Pressurized precision linear guide HEIDENHAIN TS460, RENISHAW RMP60 touch probe RENISHAW NC4 laser tool setting probe
