3-axis CNC milling machine SG-3

verticalfor aluminumfor composites

Description

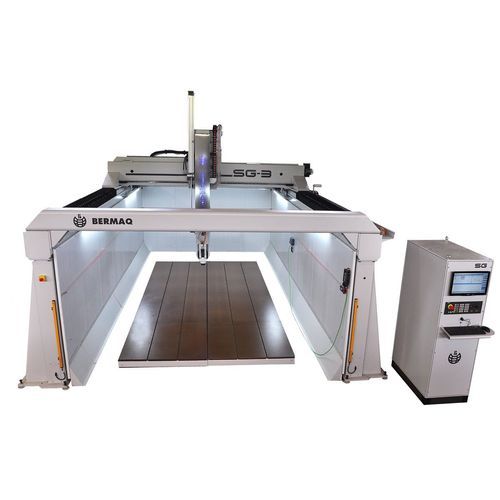

The SG-3 gantry 3-axis CNC milling machine from BERMAQ® is designed for machining medium-size parts in polystyrene, plastics, resins, foams, aluminium, stainless steel and composites. Its modular gantry architecture allows multiple configurations and options to fit production or prototyping requirements.

Applications

• Aerospace and automotive: prototypes, molds and composite machining.
• Naval: models and lightweight boat structures.
• Modeling and prototyping: scale models, architectural designs and custom parts.
• Plastics and composites: cutting and machining of foams, polyurethane and resins.
• Molds and tooling: patterns for thermoforming and casting.
• Art and scenography: sets, sculptures and film production.

Materials

• Polystyrene, foams and polyurethane
• Technical plastics and resins
• Aluminium
• Stainless steel
• Composites (carbon fibre, etc.)

Key features and functional description
The SG-3 pairs a rigid gantry structure with precision CNC control and a high-performance spindle. The open design eases loading; a full enclosure with front doors is available as an option. Modular design permits integration of different milling heads and production accessories to suit jobs from prototyping to small-series production.

Transmission and motion system
Standard transmission uses rack-and-pinion on X and Y axes and a preloaded ball screw on Z for accuracy. An optional dual servomotor in master-slave configuration can be fitted to enhance dynamic performance and positioning control.

Tooling and automation
The machine supports a linear tool changer under the gantry and automatic tool changer options of 10, 12, 30 or up to 40 positions. Multiple milling heads and automated sequences can be configured to reduce cycle times.

Control and accessories
Compatible with Heidenhain iT NC640 or SIEMENS 840D SL CNC controls. Available accessories include an electronic handwheel and a climate-controlled electrical cabinet for reliable operation in industrial environments.

Auxiliary systems and options

• Non-contact tool measurement device
• Wireless probing system for part measurement
• Tool cooling system
• Vacuum pump for improved workpiece clamping
• Automatic lubrication system
• Phenolic resin worktable
• Full enclosure (optional)

Performance and productivity
The SG-3 is engineered to reduce setup and production times while improving repeatability and surface finish for sectors such as aerospace, automotive, molds and composites.

Technical specifications

• Model: SG-3 (3-axis Gantry CNC mill)
• Axes: 3 (X, Y, Z)
• Transmission: rack-and-pinion (X/Y), preloaded ball screw (Z)
• Optional motion: dual servomotor (master-slave)
• Tool changer: linear under gantry; automatic options: 10 / 12 / 30 / up to 40 positions
• Control options: Heidenhain iT NC640 or SIEMENS 840D SL
• Accessories: electronic handwheel, climate-controlled electrical cabinet
• Worktable: phenolic resin
• Optional systems: non-contact tool measurement, wireless probing, tool cooling, vacuum pump, automatic lubrication
• Enclosure: open design standard; full enclosure available
• Main target materials: polystyrene, plastics, resins, foams, polyurethane, aluminium, stainless steel, composites
