Our complete line of thermoplastic fittings and valves include push-to-connect TrueSeal™, compression style Fast & Tite®, Par-Barb hose barbs and Polypropylene Ball Valves. The fittings come in a variety of materials. All fittings and valves are FDA compliant and NSF 51 listed.
|
|
As demonstrated by our product certifications (AENOR, AFNOR, Kiwa, etc.), Cepex offers the highest-level guarantee for all its PVC Fittings for pressurized fluid handling applications. The extensive range of sizes and combinations we offer will accommodate any system design. The dimensions of our fittings comply with UNE-EN 1452-3, UNE-EN 1452-3, DIN 8063, and NF 54016/54029 standards, while many of our products meet other standards as well, including British, ASTM and Thai.
|
|
We have a very large range of barbed tees and "Y" fittings along with check valves and luer fittings,ask for our extensive catalogue
|
|
NORMAPLAST® NORMAPLAST® SV are plastic hose and pipe connectors suitable to connect fluid carrying lines.
- NORMAPLAST® used as a hose connector
- NORMAPLAST® used as a pipe connector
|
|
|
|
|
|

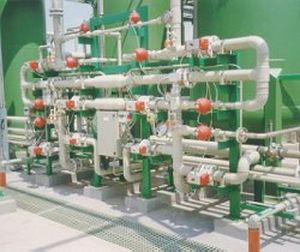

The U-PVC range is a system of products complete of: fittings for solvent welding, threaded connection and manual or automatic valves for use in the construction of process and service lines to convey industrial fluids at maximum operating temperatures of 60°C.
The entire range is produced using U-PVC resins compliant with the standards EN 1452 and ISO 4422 and in observance of the requirements of DIN 8063 and EN ISO 15493 for the use of plastic pipes in industrial processes.
Among the main properties and features of the U-PVC range the following can be noted:
Good chemical resistance: U-PVC resins guarantee excellent chemical resistance with regard to most acids and alkalis, aliphatic hydrocarbons and saline solutions. U-PVC resins are also totally compatible for handling food grade fluids, treated and untreated drinking water, as well as demineralised water according to current national and international standards.
Good thermal stability: Mostly in the intermediate temperature range between 20°C and 50°C, U-PVC finds its ideal application in industrial and water supplies, guaranteeing optimal performance in terms of mechanical resistance, good rigidity, low coefficients of thermal expansion and optimal safety factors in service.
Lifetime: U-PVC resins feature is an high value in the material strength (Minimum Required Strength MRS ≥ 25.0 Mpa at 20°C) and an extremely extended lifetime.
|
|
Mechanical Fittings
Fittings for Solvent Cementing
Fuseable Fittings
COOL-FIT
Double Containment
Multilayer Fittings
|
|
General Description
Within the PI/PM range of plastic fittings we offer Straight Adaptors in a variety of sizes, both imperial and metric, and thread types. All Straight Adaptors offer a male thread. For fittings with female threads, refer to "Female Adaptors" and "Tap Adaptors".
Materials of Construction
This fitting is made of the following components:-
* The body is produced in acetal copolymer
* 'O'Rings are nitrile rubber
* The collet is produced in acetal copolymer with stainless steel teeth
|
|
Fittings(Synapse)
Flare Type (Ferrule Type)
With flare type, a ferrule called a "Seal Joint" is attached for easy connection. The Seal Joint is a component molded in a flange shape. Simply insert the Seal Joint into the end of the tube for use.
Flange Type
A flange type is used for tubing made of plastic like PTFE, and has a simple structure.
Before use, the tube end should be enlarged like a trumpet and pressed into the bottom of a valve port.
Male Connectors & Male Elbows
PT Male Connector
PT Male Elbow
LPT Male Connector
LPT Male Elbow
|
|
Thermoplastic Couplings offer push-to-connect operation, light weight design, and excellent chemical compatibility to meet a broad range of applications.
PF Series are non-spill couplings designed for use in closed system transfer and dispensing of chemicals with minimal environmental contamination. Available in body sizes 1/2" through 2".
PPM and PPL Series are general purpose, thermoplastic couplings with push button operation. Available in body sizes 1/8" and 1/4".
Spectrum Series couplings are available valved or un-valved and in an optional panel-mount configuration. Available in body sizes 1/8" and 3/8".
|
|
3" Union for Rubber and Plastic Application
- monoflow and duoflow design
- self-supported rotating union
- radial housing connection
- balanced mechanical seal
- seal combination:
Carbon Graphite/Tungsten Carbide
- full-media flow
- easy and quick replacement of sealing components
(rotor seal, floating seal)
- vented housing
- cast iron housing
- steel rotor
|
|
|
|
|
|
48 KB series
The 48 series coupling system made of POM and PVDF has been developed for use in the medical, chemical, food handling, pharmaceutical and laboratory technology industries. The coupling is also available in a completely thermoplastic version (RectuChem ). Here the metal springs are replaced by springs made of PEEK, an extremely resistant synthetic material.
Advantages
The coupling is fitted with a double shut-off valve which enables it to be connected to a single shut-off (non-valved) plug as well as a double shut-off (i.e. plug with valve). The coupling is also available as a straight through coupling (valved plug).
Application
Medical engineering, dental equipment, measuring and control equipment, laboratory, pharmaceutical.
Working Pressure : PB = 0 - 10 bar (POM, bei 20°C), PB = 0 - 8 bar (PVDF, springs made of steel), PB = 1 - 8 bar (PVDF, springs made of PEEK), maximum static working pressure with safety factor of 4 to 1.
Working Temperature: -20°C up to 80°C (POM), -20°C up to 120 (PVDF), depending on the medium.
|
|
3-Ply Blue Polyester 90º Elbows
Meet or exceed the operating requirements of SAE J20 R1 Class A standard wall.
Meet or exceed the operating requirements of TMC RP303B Class I, Grade II.
Ship from stock the same day you place your order.
TEMPERATURE RANGE:
- -65ºF (-54ºC) to +350ºF (+177ºC)
CONSTRUCTION:
- 3-Plies of silicone coated polyester fabric
|
|
| ... products without technical information |
| |
|
|
|
|
48 KB series
The 48 series coupling system made of POM and PVDF has been developed for use in the medical, chemical, food handling, pharmaceutical and laboratory technology industries. The coupling is also available in a completely thermoplastic version (RectuChem ). Here the metal springs are replaced by springs made of PEEK, an extremely resistant synthetic material.
Advantages
The coupling is fitted with a double shut-off valve which enables it to be connected to a single shut-off (non-valved) plug as well as a double shut-off (i.e. plug with valve). The coupling is also available as a straight through coupling (valved plug).
Application
Medical engineering, dental equipment, measuring and control equipment, laboratory, pharmaceutical.
Working Pressure : PB = 0 - 10 bar (POM, bei 20°C), PB = 0 - 8 bar (PVDF, springs made of steel), PB = 1 - 8 bar (PVDF, springs made of PEEK), maximum static working pressure with safety factor of 4 to 1.
Working Temperature: -20°C up to 80°C (POM), -20°C up to 120 (PVDF), depending on the medium.
|
|
| ... products without technical information |
| |
|
|
|
|
48 KB series
The 48 series coupling system made of POM and PVDF has been developed for use in the medical, chemical, food handling, pharmaceutical and laboratory technology industries. The coupling is also available in a completely thermoplastic version (RectuChem ). Here the metal springs are replaced by springs made of PEEK, an extremely resistant synthetic material.
Advantages
The coupling is fitted with a double shut-off valve which enables it to be connected to a single shut-off (non-valved) plug as well as a double shut-off (i.e. plug with valve). The coupling is also available as a straight through coupling (valved plug).
Application
Medical engineering, dental equipment, measuring and control equipment, laboratory, pharmaceutical.
Working Pressure : PB = 0 - 10 bar (POM, bei 20°C), PB = 0 - 8 bar (PVDF, springs made of steel), PB = 1 - 8 bar (PVDF, springs made of PEEK), maximum static working pressure with safety factor of 4 to 1.
Working Temperature: -20°C up to 80°C (POM), -20°C up to 120 (PVDF), depending on the medium.
|
|
The comprehensive range of wall-mounting cases offers you a wide choice.
Application-specific orientation is typical for each family of cases
Your advantages:
- Ergonomic operating area.
- Practical for service personnel.
- Without/with separate terminal compartment.
- Robust construction.
- Modern design.
- comprehensive range of accessories.
|
|
|
Aquabond's water soluble thermoplastic is designed for temporary mounting of hard materials for slicing, dicing, grinding, lapping and polishing. and comes in 3 different bonding temperatures that can be purchased in either stick or bulk form. The nomenclature depicts each product's melting temperature centigrade.
|
|
|
|
