Reaction torque sensors, also known as static torque sensors, measure the torque applied to an object that is not in rotation. The reaction torque is the rotational force applied to an object such as a bolt or stationary drive shaft.
Reaction torque sensors are used in electronic torque wrenches to control the torque applied when tightening bolts. They also can be used in different product test applications. Drive shafts can be tested during manufacturing to verify their ability to withstand maximum and minimum torque levels.
Reaction torque sensors are most commonly made of steel with varying shaft configurations. Most reaction torque sensors use strain gauges to measure the stress/strain induced on the sensor when an external torque is applied.
Be sure to specify the maximum and minimum loads for the intended application when selecting a reaction torque sensor. Other parameters are the shaft type and its size.
 |
  |
Reaction torque sensor Model QWLC-8M Honeywell Sensing and Control
Honeywell Model QWLC-8M Miniature Reaction Torque Transducer Honeywell’s Model QWLC-8M miniature-sized torque transducers are compact, extremely durable, stainless steel reaction torque measurement systems with high frequency response and are designed to achieve 0.1% maximum non-linearity. Measurement ranges are from 25 in-oz to 250 in-oz or 50 in-lb...
 |
 |
FUTEK’s Reaction Torque Sensor - Flange/Square Drive offers a unique solution for auditing and calibrating mechanical torque wrenches, also used in production and automated...
 |
 |
Reaction torque sensor max. 20 kNm | TN HBM
TN Torque Transfer Transducer The TN torque transfer transducer is...
 |
 |
Compact reaction torque sensor 368-XXX series Celmi
Strain-gauge torquemeter TYPE 368-xxx are used in order to measure directly the static couples of any kind of entity. The are...
 |
 |
Reaction torque sensor ANDILOG
This standard reaction torque sensor is ideal to be integrated on a test stand or in other torque measurement application. This additional mini reaction...
 |
 |
Reaction torque sensor with flange max. 10 000 Nm, IP65 | 6100, 6105 SENSY
Universals non-rotating torque meters combining accuracy, sturdiness and easiness to install. - Easy to install, Compact design - Protection IP 65 - Material : o Stainless steel (6100) o Nickel...
 |
 |

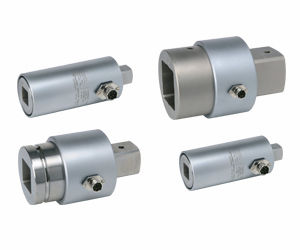

Square drive reaction torque sensor 6800 Nm Norbar Torque Tools
The accuracy and quality of the Norbar Static Torque Transducers has made them the first choice of many calibration laboratories throughout the world. Up to 6800 N•m (5000 lbf•ft) classified to BS7882:2008, typically Class 1 or better for the primary classification range (±0.5% of reading from 20% to 100% of full scale). From 6800 N•m (5000 lbf•ft) up to 108,500 N•m (80,000...
 |
 |
Reaction torque sensor max. 5 000 Nm | 415 TesT GmbH
TesT – Reaction torque sensors with flange – connections are often used as fixtures for static and quasi-static torque measurements. Between...
 |
 |
Reaction torque sensor max. 5 000 Nm, IP64 NBC Elettronica Group Srl
APPLICATIONS Static torque transmitters are devices created for the reaction...
 |
 |
Compact reaction torque sensor with flange max. 50 kN, IP65 | K1613 SCAIME
0 ... 0.1 kN to 0 ... 50 kN -Force...
 |
 |
Reaction torque sensor ± 0.1 %, 2 712 Nm | Model QSFK-9 RDP Electronics
High accuracy Stainless steel Infinite resolution Torque...
 |
  |
Reaction torque sensor max. 27 116 Nm | BMX series Mountz
Meeting the demands to test multiple torque ranges for various torque tools used in production, maintenance and calibration labs,...
 |
 |
Reaction torque sensor 5 - 7000 Nm | CS1060 Measurement Specialties
Applications: Non-rotating parts torque measurement, Test and Measurement, Robitics and effectors, Laboratory and Research Industries: General Industry Description: The CS1060 has been designed to measure reaction torque. Its sensing element is based on thin layer strain...
 |
 |
Reaction torque sensor 50 - 5000 Nm | SIT 105/110/120 Sensor Technology
The SIT 105/110/120 strain gauge reaction transducers are designed for operation in any industrial...
 |
 |
Reaction torque sensor max. 300 Nm | 1912 - 1992 series BCM SENSOR TECHNOLOGIES bvba
Features - strain gauge technology - range from 30 Nm to 300 Nm - accuracy up to 0.1 %fs - mild steel with nickel plated treatment (1912) 17^PH construction (1992) - protection grade IP 65 Applications - torque wrench and torsion measurement of shaft Description Based on BCM's advanced strain gauge technology,...
 |
 |
Miniature reaction torque sensor max. 1 kNm | YDNS series Applied Measurements
The YDNS series of miniature reaction torque transducers / reaction torque sensors have parallel shaft connections for in-line direct...
 |
 |
Reaction torque sensor 10 - 50 in.oz Sensor Developments
This low capacity reaction torque sensor is capable of measuring torque with a full scale capacity of 10 in.oz. and a resolution of 0.02 in.oz. The unique sensing element design allows the sensor to carry extraneous loads while being able to accurately measure in the in.oz. range. The small physical size makes it adaptable...
 |
 |
Reaction torque sensor max. 250 000 lb Teledyne Test Services
It is often the case that torque in a rotating shaft can be measured with a stationary, reaction torque sensor at some point in the powertrain. This is due to the existence of an equal and opposite force (torque) necessary to hold the drive and driven equipment in place. For...
 |
 |
Reaction torque sensor 0.02 - 2 Nm | TCF02N Tohnichi Europe N.V.
Application •Measurement of torque tools, and nutrunner check. Features •Fixed type torque sensors. •Reaction type torque transducer...
 |
 |
Miniature reaction torque sensor max. 20 000 Nm | MRT series INTERFACE Inc
MRT Miniature Reaction Torque Transducer Why the Interface series MRT Miniature Reaction Torque Transducer is the best in class: -...
 |
 |
Reaction torque sensor 0.2 - 5 000 Nm Crane Electronics ltd.
Crane's stationary transducers are the quality choice for the testing of all continuous drive, impulse and hand torque...
