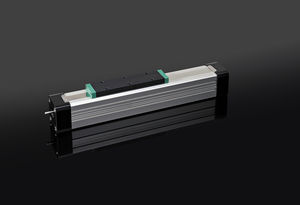

Minimal deflection and straighter, truer linear motion (within 0.0002 inches per inch). Guidance system uses ground linear rails (and ball bearing blocks) for lowest possible deflection when guiding the carrier and its load. Four body sizes. Strokes in any incremental length up to 96 inches. Travel speeds up to 100 in/sec. Maximum dynamic loads range from 100 lbs to 750 lbs and are based on 200,000,000 linear inches of travel. Removable cover offers easy access to internal components.
|
|
Dynamic with roller guide.
• Max. stroke 5,000 mm
• Max. speed 10 m/s
• Repetition accuracy ±0.1 mm
• Max. feed force 1,500 N
|
|

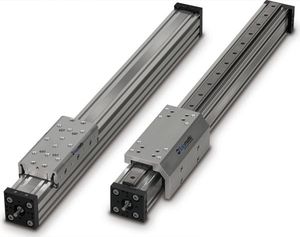

The linear modules MLT320 provide a self-supporting frame (180x60mm) to be easily integrated into the customer’s systems.
They are made of solid aluminium alloy profile with four-rows linear guideways.
The movement is activated through timing belt AT10/32. The standard accessories enable a quick and easy connection with the motors and the columns.
Versatility, performances, high load capacity and self-supporting structure are the key features of our range of linear modules and portals.
|
|
|

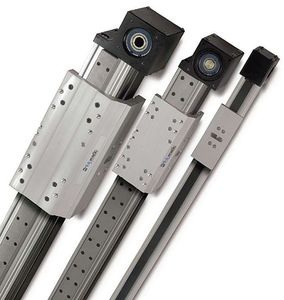

High radial loads (over 8000 lbs depending on load carrying options) and moment load capacity with consistent tracking. Heavy duty recirculating bearing system in gothic arch rail guides for wear resistance with repeated accuracy. Strokes in any incremental length up to 292 inches depending on model selected. Travel speeds to 155 in/sec.
|
|
|
High load (over 2000 lbs) and moment load capacity (over 1600 in-lb) with consistent tracking. Features a heavy duty recirculating bearing system in gothic arch rail guides for wear resistance with repeated accuracy. Strokes are available in any incremental length up to 10 feet depending on body size and screw/nut choice.
|
|
|

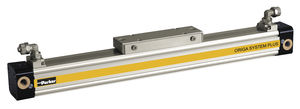

HOERBIGER-ORIGA now offers the complete solution for linear drive systems. Designed for absolute reliability, high performance, ease of use and optimised engineering the ORIGA System Plus satisfies even the most demanding applications.
|
|
|

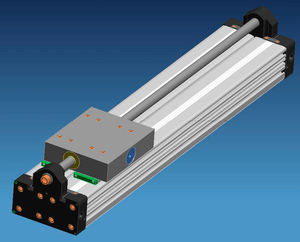

MXE electric screw actuators are available in two bearing selections. Solid bearing design optimizes stress distribution for optimal performance. Profiled rail design uses THK Caged Ball technology to reduce friction and extend actuator life. Maximum loads range from 70 to 1472 lbs depending on options selected. Strokes available in any incremental length up to 120" depending on body size and screw/nut choice.
|
|
|
Offers minimal deflection and straighter, truer linear motion (within 0.0002 inches per inch). Guidance system uses ground linear rails (and ball bearing blocks) for the lowest possible deflection when guiding the carrier and its load. Four body sizes with maximum stroke lengths ranging from 36" to 96" depending on body size and screw/nut choice. Maximum dynamic loads range from 100 lbs to 750 lbs and are based on 200,000,000 linear inches of travel.
|
|
|
Pre-engineered, pre-packaged and ready to install. Load bearing design incorporates precision linear bearings for long life, high load capacity and low friction. One-piece extruded tube housing supports bearing rods to eliminate rod deflection and increase torsional stability. Rigid, torque-resistant, low-profile slide. Loads to 200lbs.
|
|
|
Pre-engineered, load-supporting and fully enclosed slide-style actuator uses a guidance system of recirculating bearings on ground steel shafts for consistent carrier tracking and long life. Patented band retention system with metal-to-metal seal keeps out contaminants. Low-profile, rigid design in one body size. Load weights up to 100 lbs. Strokes available in any incremental length up to 60 inches depending upon screw/nut choice.
|
|
High Accuracy Single Axis Actuator BG Type
NB's BG Type is a compact single axis actuator which integrates a Slide Guide and Precision Ball Screw. BG Type offers compact dimensions, which outperforms conventional positioning tables. This is made possible by a unique "U" shaped Guide Rail and Slide Block which provides multiple functions of a Guide Block and a Ball Screw Nut combined into a single unit. The "U" shaped Guide Rail design offers a high rigid structure resistant to bending. This structural feature allows for integrated frameworks of machinery or equipment. Additionally, the Slide Block contains 4 ball circuits which delivers high load capacity, high accuracy and high rigidity.
|
|
The NB BG type is a compact single axis actuator, which integrates a slide guide and precision ball screw. BG type offers a unique “ U “ shaped guide rail and slide block which provides multiple functions of a guide block and a ball screw nut combined into a single unit.
The slide block contains 4 ball circuits which deliver high load capacity, high rigidity and high accuracy.
|
|
APPLICATIONS
Fifteen year old fruit d’ experiment units SGLT are
already used in many fields:
Manipulator impression with jet d’ ink
Palletizer Drilling of printed circuits
Machines d’ gluing Engraving on plastic
Teaching placement CMS Machines
Special machines Machining
Displacement of heads d’ etc...
CHARACTERISTICS
. Quality ratio/price
. Lifespan
. Good precision of displacement
. Reduced weight: construction in alumini
|
|
|

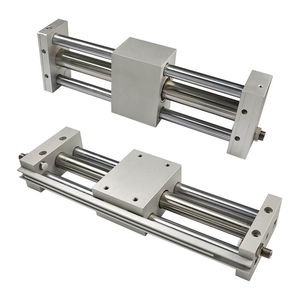

STN 16 with 80mm, 4 versions. RTC-BV: guidance interns by oval piston, Applicability: transport, open-carries, cut, devices of thorough RTC-CG: guidance on compact rail and of high precision, Applicability: average charges in an exiguous space RTC-EG: guidance on rail of high precision and an effective cost, Applicability: RTC-HD with E-Line guidance, to involve not guided objects RTC-HD: guidance on rail of high precision, for the raised loads, Applicability: basic axis for the applications of handling, very high capacity load
|
|
|
GSU Dia. 16 and 25mm. Element of the range Easy-2-Combines. Race until 1000mm, flexibility of adjustment of the race. Small overall dimensions (flat design). Allows a high speed of drive.
|
|

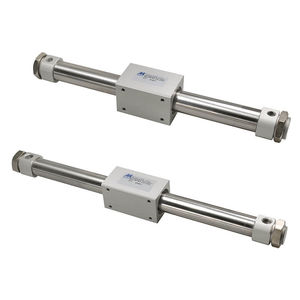

Ultran Rodless Cylinders
The Bimba Ultran rodless cylinder provides one of the highest coupling strengths available. This means it can carry higher loads without causing the piston to uncouple from the carriage.
Bimba also offers two magnetic coupling strength options (Gold and Silver) to suit a wide variety of applications. The Silver option uses two sets of magnets instead of three.
Bore sizes are 5/16", 7/16", 9/16", 3/4", 7/8", 1-1/16", 1-1/4", 1-1/2", and 2".
Bimba offers a model with built-in guides (Ultran Slide) and an unguided unit (Ultran).
Save space and streamline your design with the Bimba Ultran rodless cylinder! Application possibilities include transferring, feeding, door opening, cutting, silk screening and overall length savings.
|
|
Guiding cylinder
with two slide guides
with short slide guide
with safety unit
with slide guide underneath
Technical Information
· ZSS and ZKS have been designed for higher loads.
· By mounting a linear guide way on the bottom side of the cylinder, very high loads and moments can be carried forward
· Maximum stroke 3000 mm, longer on
· ZSS with two guiding carriages and a fitting length just like the ZS standard cylinder
· ZKS with a guiding carriage
|
|
REXMOVER Dia. 16 with 80mm, race of 100 with 9.900mm possible according to the version.
System with compactness for long races at high speed (5M/s).
4 types: guidance internal, polyamide, external or reinforced. Center robust linear drive.
|
|
GSU Dia. 16 and 25mm. Element of the range Easy-2-Combines.
Race until 1000mm, flexibility of adjustment of the race.
Small overall dimensions (flat design). Allows a high speed of drive.
|
|

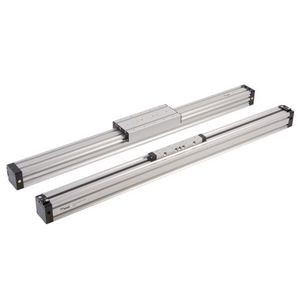

A space saving and guided cylinder with no equal. With a sealing system
unlike any other and endless possibilities including true synchronization
of two or more cylinders the ZR is worth a look.
The answer for dirty and dusty environments.
Available with slide or roller guide
Extremely low leakage
Smooth linear movement
High durability and operational reliability
Deliverable with a brake and encoder
Integrated valves if required
|
|
