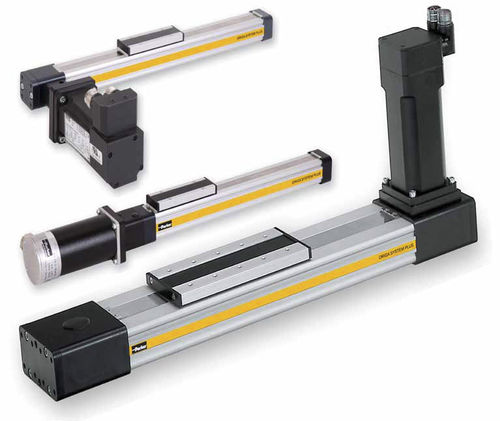

Linear actuator OSPE
electricrodlessball screw

linear actuator
linear actuator
Add to favorites
Compare this product

Characteristics

Movement
linear
Type
electric
Technology
rodless, ball screw, belt-driven
Other characteristics
with integrated limit switch, engine
Stroke

Max.: 7,000 mm (275.591 in)

Min.: 0 mm (0 in)

Force

Max.: 1,490 N

Min.: 50 N

Speed

Max.: 10 m/s (32.80839895 ft/s)

Min.: 2 m/s (6.56167979 ft/s)

Description

The OSP-P rodless actuator in bore sizes Ø10 to Ø80mm is a linear actuator, guidance and control package designed into a modular system. Ideally suited for point-to point, reciprocating and simple traverse / transfer applications. Product Overview The OSP-P with stainless steel sealing band for ultra-low friction is a completely modular designed rodless cylinder. It offers the most comprehensive range of guides and brakes with a very long lifetime of 8,000 km and offers action forces up to 3,450 N. Special options like low-speed, high-speed, low and high temperature, ATEX and cleanroom versions cover a wide range of applications in various markets. The OSP-P rodless actuator in bore sizes Ø10, Ø16, Ø25, Ø32, Ø40, Ø50, Ø63 and Ø80mm is a combined linear actuator, guidance and control package with additional functions designed into modular system components. Mounting rails on 3 sides of the cylinder enable modular components such as linear guides, brakes, valves, magnetic switches etc. to be fitted to the cylinder itself solving many installation problems, especially where space is limited and forms an ideal basis for additional customer specific functions providing total installation flexibility. Optimised cylinder profile for maximum stiffness and minimum weight, corrosion resistant steel outer sealing band, robust wiper system on the carrier for use in aggressive environments and a proven corrosion resistant steel inner band for optimum sealing. OSP-P is available as standard temperature -10°C to +80°C with high and low temperature options and can be supplied with optional active or passive dynamic braking.
