AC servo-drive / brushless / digital / positioning
SLVD-N series

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product

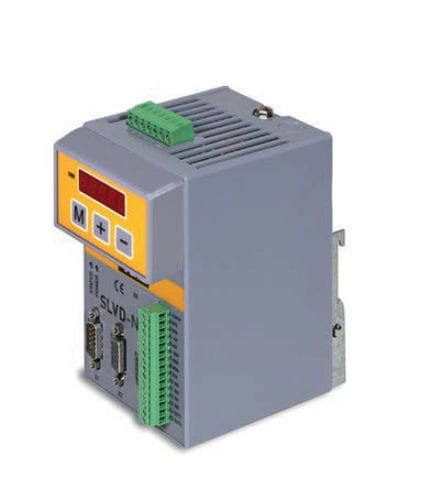

AC servo-drive AC servo-drive - SLVD-N series
{{requestButtons}}

Characteristics

  • AC/DC:

    AC

  • Type:

    brushless

  • Output signal:

    digital

  • Product applications:

    positioning, for servo motors

  • Other characteristics:

    compact, torque control

  • Current:

    Min.: 1 A

    Max.: 34 A

Description

SLVD1N compact stand-alone servo drives have a power rating of 0.95kVA and offer positioner functions, including a profile generator, electronic cams, spindle orientation and torque limited control, plus they accept industry standard command signals
Product Overview
SLVD-N is a family of compact digital servo drives for brushless motors which, in addition to positioning applications with trapezoidal profile, electrical shaft, electronic cam, spindle orientation, simulator of stepper motor and torque control, holds a PLC inside able to talk to the most common industrial programming systems, giving a great freedom of use of the inputs and outputs. It also allows the development of additional configurations to the basis features of the drive, such as gains adjustment of the loop in relation to speed or space, torque monitoring used for tools etc.

The SLVD-N range of servo controllers are available with output power ratings up to 6.5kVA and come equipped with an RS422/RS485 serial interface allowing the operator to configure, monitor and command to up to 32 units simultaneously. A CANbus interface is also available, both in communication mode and in real time mode with SBCCAN/DS301/DS402 protocols, plus there are interface options for EtherCAT and ProfiNet fieldbus communications.

Markets:
• Factory Automation
• Packaging Machinery
• Miscellaneous Manufacturing

Features/Benefits:
• Safety: STO function optional
• CE + UL/cUL Listed
• Internal PLC : PicoPLC (standard) / programming according to IEC61131 (optional)
• Configuration Software : MotionWiz with Oscilloscope function, real time and debugging features
