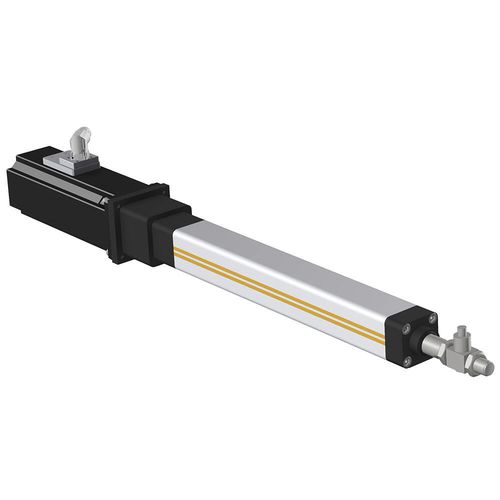

1-axis positioning system Push-To-Fit

multi-axisautomaticindustrial

Push-To-Fit is an electromechanical solution for servo presses and joining applications. Combining its established core products into a joining module, Parker offers a reliable, energy efficient and cost-effective solution. Push-To-Fit is an electromechanical solution for servo presses and joining applications, a key process in modern automated manufacturing. Combining its established core products into a joining module, Parker offers a reliable, energy efficient and cost-effective solution to serve customers critical applications in harsh industrial environments. All Push-To-Fit components are designed to fulfill highest expectations concerning force, dynamic, precision and service life. The servo press with its modular construction allows fast and easy integration. Push-To-Fit is available with a choice of four different standard thrust forces of 9.3kN, 25.1kN, 56kN and 114kN and defined standard travel lengths of between 100mm and 600mm – this makes it suitable for a wide range of applications. Repeatability of 0.03mm ensures precise joining and high travel speed up to 450mm/s gives excellent throughput rates. Our solution supports easy integration into existing plant networks and provides simple, convenient parametrization, visualization and operation. The monitoring methods like tolerance band and tolerance windows ensures real-time quality control. Markets • General Industrial Assembly • In-Plant Automotive Fdraulics and pneumatics • Quality control – Positioning with real-time monitoring of the force-position curve• Excellent throughput rates – Thanks to high travel speed up to 450 mm/s
