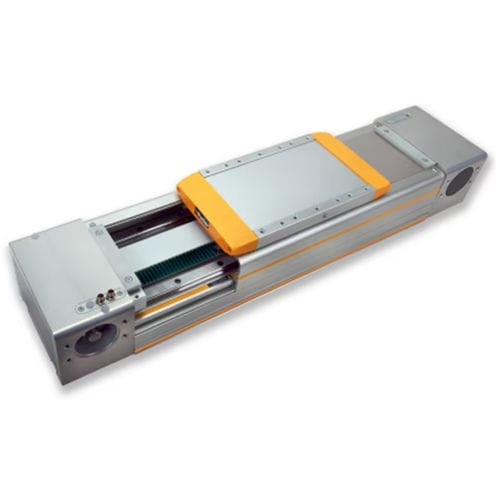

Linear actuator HMR series
electrictiming beltwith servo-motor

linear actuator
linear actuator
Add to favorites
Compare this product


Characteristics

Movement
linear
Type
electric
Technology
timing belt, with servo-motor, ball screw
Protection class
IP54
Other characteristics
with integrated guides
Stroke

Min.: 0 mm (0 in)

Max.: 6,000 mm (236.22 in)

Force

Min.: 6,000 N

Max.: 39,900 N

Speed

Min.: 0.2 m/s (0.8 ft/s)

Max.: 5 m/s (16.4 ft/s)

Torque

Min.: 290 Nm (213.89 ft.lb)

Max.: 3,645 Nm (2,688.41 ft.lb)

Description

HMRS15 screw driven actuators provide precise path and position control for payloads of up to 8800N. Available with either basic or reinforced profiles, the HMR linear actuators offer user-friendly flexibility and a range of fully integrated options Product Overview Parker Hannifin’s High Moment Rodless (HMR) electromechanical actuator series is one of the most versatile actuator lines on the market today. Guided by two square rail bearings, the HMR has enormous moment and payload capacity for two different chassis profiles, allowing the user to choose between a low profile "basic" version, or a "reinforced" version giving structural rigidity for long unsupported spans. Ease of use by integrated external accessible lubrication fittings into the carriage that allow for evenly dispensed lubricant across all bearing trucks. In addition, there are options including 5 different frame sizes, different drive trains, multiple mountings, internally wired sensor as well as the IP54 protective cover. With a multitude of other customisable features the HMR is truly designed for flexibility. Markets • Factory Automation • Machine Tools • Miscellaneous Industrial • Miscellaneous Manufacturing • Packaging Machinery • Printing & Marking Equipment • Vehicle Assembly Facilities • Lab / Diagnostic • Other Life Sciences • Coatings / Ink / Paint • Food & Beverage
