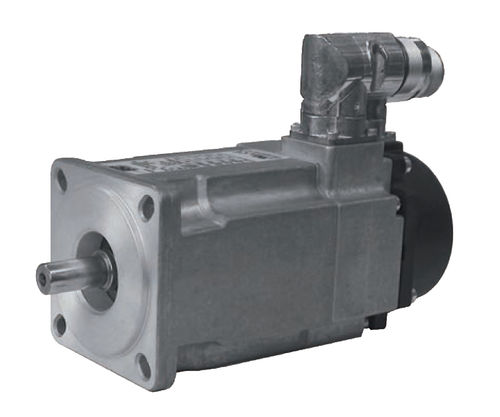

AC servomotor NX seriesbrushless230 V400 V

AC servomotor
AC servomotor
AC servomotor
AC servomotor
AC servomotor
AC servomotor
AC servomotor
AC servomotor
AC servomotor
AC servomotor
Add to favorites
Compare this product
indicative price

Characteristics

AC/DC
AC
Type
brushless
Voltage
400 V, 230 V
Other characteristics
10-pole, air-cooled, water-cooled, IP65, compact, forced ventilation, robust
Torque

Min.: 0.45 Nm (0.3319 ft.lb)

Max.: 83 Nm (61.2177 ft.lb)

Power

Min.: 0.2 kW (0.272 hp)

Max.: 13.7 kW (18.627 hp)

Rotational speed

Min.: 0 rpm (0 rad.min-1)

Max.: 9,800 rpm (61,575.22 rad.min-1)

Description

Available in 42-155mm frame sizes, NX motors are designed to provide low cogging torque and smooth operation. A large set of torque/speed characteristics, options and customization possibilities are available, as well as CE and UL marking certification Designed to provide low cogging torque and smooth operation, the NX Series brushless servo motors from Parker combine exceptional precision and motion quality, high dynamic performances and very compact dimensions. A large set of torque/speed characteristics, options and customization possibilities are available, making NX Series synchronous servo motors the ideal solution for most servo system applications. The sensorless version of NX Series servo motor has been designed to offer a cost effective brushless solution in association with the Parker SSD AC650S drives. Controlled without feedback sensor, NX Series servo motors are an innovative, compact, performant and highly efficient alternative to traditional induction motors. Markets: • Factory Automation • Packaging Machinery • Food & Beverage • Miscellaneous Industrial • Miscellaneous Manufacturing • Lab/Diagnostic • Life Sciences • Pharma Features/Benefits: • High precision and motion quality • High dynamic performance • Low cogging torque / Smooth operation • Compact dimensions and robustness • Large set of options and customization possibilities • CE and UL marking certification available Applications: • Machine tools axis • Packaging machinery • Robot applications • Special machinery Technical Specifications: - Motor Type : Permanent magnet synchronous brushless servo motor - Rotor Design : Rotor with concentrated-flux rare earth magnets - Number of Poles : 10
