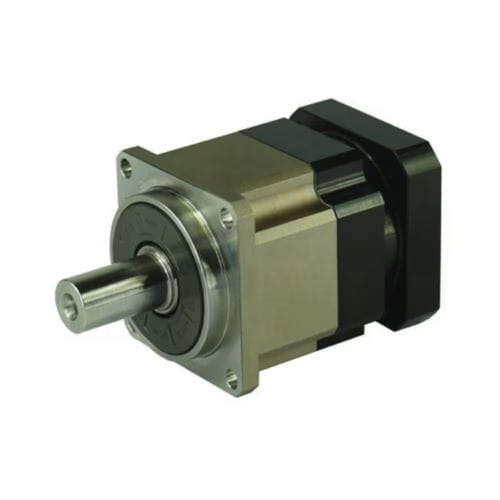

Planetary gear reducer GXAcoaxialsolid-shaft1 - 2 kNm
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Torque
- 1 - 2 kNm
- Configuration
- compact
- Performance
- precision, low-noise
- Applications
- for printing machines, for pharmaceutical products, packaging machine, for the plastics industry, for power generation
- Other characteristics
- IP65, ATEX
- Rotational speed
Min.: 4,000 rpm
(25,132.7412 rad.min-1)Max.: 10,000 rpm
(62,831.8531 rad.min-1)- Backlash
Min.: 0.05 rad
Max.: 0.12 rad
- Gear ratio
Min.: 3 unit
Max.: 100 unit
Description
GXA gearboxes offer a compact motor-gearbox solution optimised to provide the best dynamic performances in hazardous areas. In combination with Parker ATEX servo motors, they are ideal for applications requiring high torque and optimum motion quality.
The GXA gearbox series has to be associated with the powerful Parker ATEX servo motor ranges for use in hazardous areas. The precision helical gearing design offers smooth and quiet operation for the most demanding high performance applications. The solid uncaged needle roller bearings provides maximum contact points to increase stiffness and generates high output torque. In addition the unique motor adapter and bushing module system design allows to obtain a compact structure and a quick and easy mounting of any ATEX certified Parker motor.
