Variable-frequency AC drive AC15

inductionpermanent magnetModbus TCP/IP

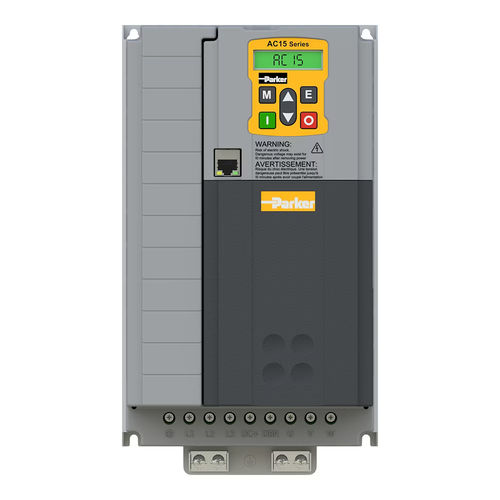

The Parker AC15 AC drive is a simple-to-use, reliable, and cost-effective solution for everyday motor control applications requiring speed or torque control in the 0.37 to 30 kW power range.

With its compact design and features typically reserved for high-end drives—including Safe Torque Off (STO), Ethernet communications (Modbus TCP/IP and EtherNet/IP), sensorless vector control for both induction motors (IM) and permanent magnet AC motors (PMAC), as well as 150% overload capability for one minute—the AC15 delivers outstanding performance in a compact package.

The AC15 drive provides an optimized solution for OEM machine builders looking for a compact, economical drive without compromising performance.

Key Features

• Compact, low-cost AC drive
• Ethernet connectivity: Modbus TCP/IP, Ethernet/IP
• Safety function: Safe Torque Off (STO)
• Designed for open-loop motor control
• Supports AC induction and permanent magnet (PM) motors
• Power range: 0.37–30 kW
• Control modes: V/Hz, Sensorless Vector
• 150% overload for 60 s (Heavy Duty)
• Certifications: CE, UKCA, UL, cUL, RoHS

Technical specifications

• Brand: Parker
• Series: AC15
• Input voltage: 1×230 VAC; 3×230 VAC; 3×380–480 VAC
• Output power: 0.37 to 30 kW
• Supported motor types: AC induction, Permanent Magnet (PMAC)
• Control type: Open-loop; V/Hz and Sensorless Vector
• Connectivity: Ethernet (Modbus TCP/IP, Ethernet/IP)
• Safety: Safe Torque Off (STO)
• Operating temperature: 0 to 40 °C (derate above 40 °C)
• Maximum altitude: up to 1000 m ASL (derate above 1000 m)

Applications

• Pumps and fans
• Conveyors and material handling
• Packaging and processing machines
• HVAC and compressors
• Machine tools and single-axis positioning systems

Ordering information
Contact an authorised Parker distributor to select the correct AC15 variant, input voltage and options for your application.
