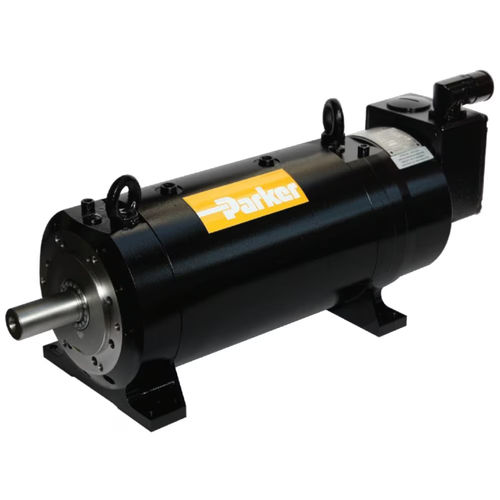

Brushless motor MGV

AC400 Vpermanent magnet

MGV servo motors are characterized by a low inertia, dynamic acceleration and their high speed capability, making them ideal for a range of simulation and test bench applications. With 400VAC windings, power ratings to 500kW and speeds to 45000 min-1 MGV motors are brushless synchronous servo motors with permanent magnets specially designed for test bench applications requiring compact and reliable solutions without compromising high performance. For qualification process MGV motors can be used in many automotive or aeronautical component test rigs (diesel engine, starters, pumps, alternators, gearboxes...). Highly responsive with exceptional dynamic performance, MGV motors are ideally suited to the needs of simulation testing: speed in urban cycle or motor racing, speed acyclism of an internal combustion engine, etc... Markets: • Automotive test rigs • Aerospace test equipments Features/Benefits: • High maximum speeds - avoid the need for mechanical gearing • Low inertia - allows very fast acceleration/deceleration • Constant power operation (field weakening mode) above nominal speed removes the requirement to oversize the drive • Water cooling - ensures compact size and low noise operation • High dynamic capabilities allow the operating conditions of the tested product to be accurately reproduced • Compactness Applications: • Engine testing • Components testing • Powertrain Testing • Chassis Dynamometer • Electric or Hybrid car • Battery Simulation
