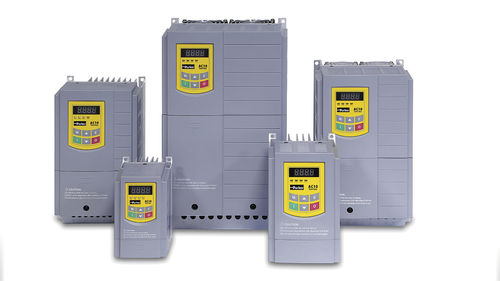

Vector control frequency inverter AC10
verticalfor asynchronous motorscompact

vector control frequency inverter
vector control frequency inverter
vector control frequency inverter
Add to favorites
Compare this product


Characteristics

Type
vector control
Mounting
vertical
Applications
for asynchronous motors
Other characteristics
compact, economical
Power

Min.: 200 W

Max.: 180,000 W

Description

The 30 kW / IP66 rated AC10 compact AC drive offers a low cost, compact solution for simple AC induction motor control Product Overview The AC10 variable speed compact drive is a simple, reliable and economical solution to every-day motor control applications requiring speed or torque control within the power range of 0.2kW to 180kW. Having compact dimensions and features normally only associated with higher specification AC drives, including, sensorless vector mode, output frequency up to 590 Hz, 3 phase 400VAC supplies in all 5 frame sizes and a full 150 % overload at 0.5 Hz for 1 minute, the AC10 provides an optimised solution for OEM machine builders who are looking for a compact, cost-effective, energy saving variable speed ac drive without compromising on performance. Markets: • Air conditioning • Heating • Refrigeration • Ventilation • Other HVAC • Air & Gas Compressors • Factory Automation • Printing & Marking Equipment • Miscellaneous Industrial • Food & Beverage Features/Benefits: - Simplicity : AC10 drives are designed to reduce the time and effort required to install, setup and commission through its easy to use integrated keypad. Minimal wiring requirements and two easily accessed terminal rails make AC10 fast and simple to install, having you up and running in no time at all. Auto-tuning sensorless vector mode takes AC10 beyond simple V/Hz control, allowing users requiring greater dynamic speed or torque control for their application to benefit from the drives enhanced 0.5% speed and 5% torque accuracy.
