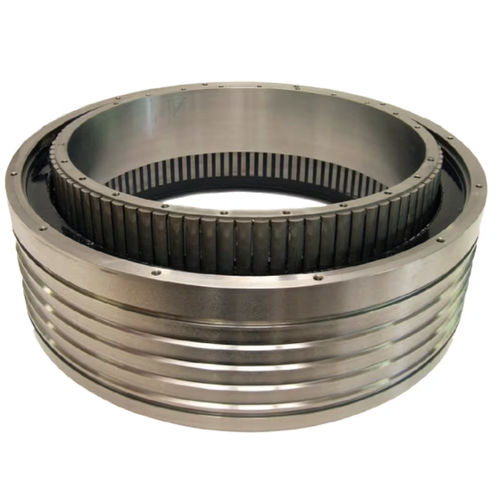

Direct-drive torque motor TK series

ACsynchronous400 V

TK-series frameless direct-drive torque motor kits offer high torques at low speed and come as a separate rotor and stator, permitting direct system integration. With 400VAC windings, torques up to 21700Nm, power ratings to 207kW and speeds to 2500 min-1 Delivered as separate rotor and stator components, for integration into the mechanical structure of the machine, TK series torque motors lead to simplified designs, reduced costs, and increased accuracy. TK series is distinguished from existing solutions by their exceptional robustness, making them particularly suited to harsh environments. Benefiting from Parker's unprecedented know-how in the design and manufacture of torque motors, TK series can also be delivered as complete sub-assemblies including frame, cooling system, bearings, feedback sensor. Markets: • Machine Tools • Miscellaneous Industrial • Miscellaneous Processing Features/Benefits: • Permanent magnet synchronous servo motor kit • Simplified mechanical designs • High Resistance (oil proof and coating on request) • Reduced sizes and weights • Increased reliability and reduced maintenance • Increased rigidity and accuracy Applications: • Rotating Table • Material Forming • Material Handling • Tooling Machines • Mixer for Pulp & Paper • Winch Technical Specifications: • Mounting - tapped holes on rotor and stator periphery • Cooling - water cooling (standard) or natural convection (available with derating, consult us) • Thermal Protection - PTC and KTY probes fitted into the stator winding • Feedback Sensor - chosen depending upon mechanical conditions, required accuracy and drive specifics: resolver, sin/cos encoder...
