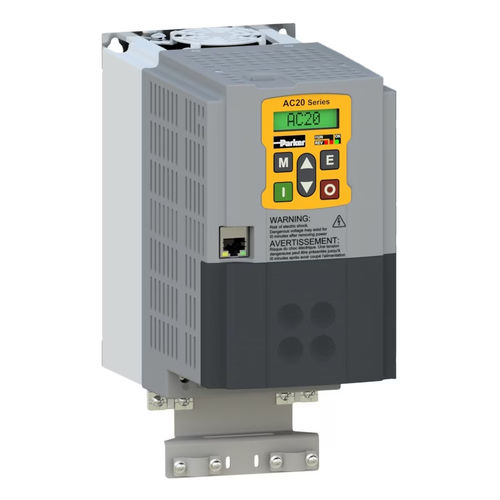

Food frequency inverter AC20

for automationfor HVACfor air conditioning

The AC20 advanced compact drive is a highly featured yet economical solution to general purpose motor control applications in the range Of 1.5kW to 180kW. AC20 provides open loop speed or torque control for AC induction or PMAC motors, and with optional encoder feedback card fitted, closed loop vector control of AC induction motors. AC20 is packed with features normally only associated with system drives, including two 10/feedback expansion option slots, Safe Torque Off and an onboard Ethernet port that supports major industrial Ethernet protocols including ProfiNet and Ethernet IP as standard. Further user installable communications option cards are also available. Features/Benefits: Simplicity: • Easy to configure with free Parker DSELite software tool • Onboard Ethernet port for programming and communications • Clear English language intuitive keypad for local setup and control • No complex options/configurators — all features available in the base inverter • Wiring bracket simplifies installation Safety and Reliability: • Conformally coated for harsh environment protection as standard • Proven power stage design and technology • Replaceable fans • Safe Torque off : SIL2, PLd • SD card slot for application backup
