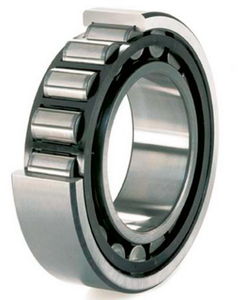

Single row cylindrical roller bearings with cage are units comprising solid inner and outer rings together with cylindrical roller and cage assemblies. The outer rings have rigid ribs on both sides or are without ribs, the inner rings have one or two rigid ribs or are designed without ribs. The cage prevents the cylindrical rollers coming into contact with each other during rolling.
The cylindrical roller bearings are very rigid, can support high radial loads and, due to the cage, are suitable for higher speeds than the full complement designs. Bearings with suffix E have a larger roller set and are thus designed for extremely high load carrying capacity.
The bearings can be taken apart and can therefore be fitted and dismantled more easily. Both bearing rings can therefore have an interference fit.
Single row cylindrical roller bearings with cage are available as non-locating, semi-locating and locating bearings.
|
|
Brand Name:
EBI
Country of Origin:
China (mainland)
Key Specifications/Special Features:
30300 series, 32000 series, 32300 series
30200 series, 31300 series, 32200series
All inch series available
Technical capability: Accuracy: tolerance from ISO P0-P4 (US ABEC-1-ABEC-7); Low noise: z1-z3 at accelerated velocity value and zv1-zv3 at velocity value; Working life: according to ISO standard.
Primary Competitive Advantages:
Price
Quality Approvals
Customers' Drawings Accepted
|
|
Model NAST
A separable type of bearing that combines a thick-wall outer ring, an inner ring and needle rollers equipped with a precision cage. Since the structure is simple, it allows high accuracy to be achieved at low cost.
Model RNAST
A bearing that combines a thick-wall outer ring, an inner ring and needle rollers equipped with a precision cage.
Model NART
This model is a non-separable type of bearing system whose inner ring is fixed to the side plates. Since the outer ring is spherically machined, it helps reduce a biased load.
|
|
SE Series slides are designed for ultra high precision.
SF Series features end plates for positioning, making them ideal for factory automation applications.
SP Series features end plates for positioning, making them ideal for factory automation applications.
SC & SK are availalbe with a crank or knob mechanism for manual operation.
SW Series, featuring a Double "V" Raceway design, eliminates the need for a base plate and offers a very low height profile.
|
|
- RA-C (single split type) As the outer ring is split at one point is it most -suited where rigidity and high accuracy are required of both inner and outer rings
- Ultra thin and easy to install
- High rotational accuracy
- Easy handling
- 2D & 3D CAD Drawings
|
|
Timken® cylindrical bearings are designed to manage heavy radial loads through expertly designed critical dimensions, such as roller and raceway diameter and contact geometry. Our cylindrical bearings range from small to large bores - with up to four rows of rollers - for a wide range of industrial applications.
Design attributes:
Large bores for integration into heavy-duty industrial applications
Cylindrical rollers accommodate heavy radial loads
OD sizes 180 mm and larger
Potential applications: power generation, oilfield, mining and aggregate processing, gear drives and rolling mills.
|
|
Key Specifications/Special Features:
-30300 series, 32000 series, 32300 series
-30200 series, 31300 series, 32200series
-All inch series available
-Technical capability:
Accuracy: tolerance from ISO P0-P4 (US ABEC-1---ABEC-7)
Low noise: z1--z3 at accelerated velocity value and zv1--zv3 at velocity value
Working life: according to ISO standard
Primary Competitive Advantages:
-Price
-Quality Approvals
-Customers' Drawings Accepted
|
|
|
Timken offers the most extensive line of tapered roller bearings in the world. Tapered bearings are uniquely designed to manage both thrust and radial loads on rotating shafts and in housings. We manufacture nearly 26,000 bearing combinations - in single, double and four-row configurations. Sizes range from an 8mm (0.31496'') bore to a 2,222.5mm (87.5'') outside diameter. Customized geometries and engineerd surfaces can be applied to these bearings to further enhance performance in demanding applications.
|
|
Single row tapered roller bearings
Tapered roller bearings with large contact angle
Tapered roller bearing with flanged outer rings
Double tapered roller bearings
Inch series single row tapered roller bearings
Four row tapered roller bearings (380000 type)
|
|
ITEM
D B d
BD-17 17 10 6
BD-22 22 11 7
BD-30 30 14 0
BD-39 39 18 15
BD-40 40 18 15
BD-57 57 22 20
|
|
|

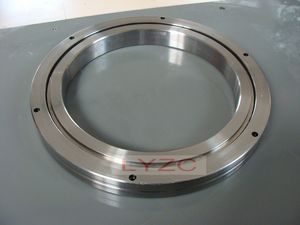

IKO Crossed Roller Bearings are compact bearings with their rollers alternately crossed at right angles to each other between inner and outer rings. They can take loads from any directions at the same time such as radial, thrust and moment loads. The rollers make line-contact with raceway surfaces, and , therefore, elastic deformation due to bearing loads is very small. These bearings are widely used in the rotating parts of industrial robots, machine tools, medical equipment, etc., which require compactness, high rigidity and high rotational accuracy. In addition, bearings made of stainless steel or those with inner and outer rings provided with mounting holes are also available on request.
|
|
XRB - Customized crossed roller bearings
Compact design, capacity to carry high axial loads in both directions combined with radial loads and high tilting moments.
UNITEC crossed roller bearings XRB series are the ideal solution where space is limited or lower center of gravity of the rotating masses is requested.
The main applications for UNITEC crossed roller bearings are indexing tables, rotating tables, spindles with horizontal and vertical axis and robot arms.
All UNITEC XRB cross roller bearings are designed and manufactured, only according to customer requirements.
UNITEC XRB crossed roller bearings can be provided with
- other dimensions on demand;
- precision class P0, P6, P5, P4 or according to different specifications;
- clearance or preload to be adjusted during assembly;
- pre-adjusted clearance or preload.
|
|
planetary bearings for gearboxes
SL and RSL types, transmission bearings, hydraulic motor and pump bearing
bearings with black oxide rollers for heavy conditions
|
|
planetary bearings for gearboxes
SL and RSL types, transmission bearings, hydraulic motor and pump bearing
bearings with black oxide rollers for heavy conditions
|
|
|
|
|
|

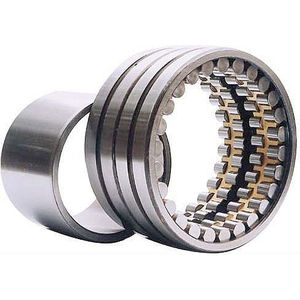

Four-row cylindrical roller bearings are used almost exclusively in the metal industry(Rolling mills). Their friction is relatively low when compared with other roller bearings. As they are normally mounted with an interference fit on the roll neck, they are particularly suitable for rolling mill applications where the rolling speed is high.
Since very many rollers can be incorporated, the radial load carrying capacity is exceptionally high. Multi-row cylindrical roller bearings are unable to accommodate axial loads but they can be mounted together with deep groove or angular contact ball bearings or with tapered roller bearings to help accommodate any axial loads.
HOYI is very accomplished in making Four row cylindrical roller bearings. The dimensional accuracy is P6 and running accuracy is P5 (same with SKF accuracy) We have seen the over inflated prices and the impossibly long lead times being offered. We are offering a quality alternative, with very reasonable lead times and at a competitive price.
|
|
|
|
|
|

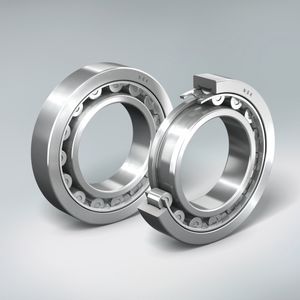

NSK manufactures a complete range of cylindrical roller bearings. Both metric and inch sizes are available in bore sizes ranging from 1/2" to 1320 mm.
By virtue of the line contact between rolling elements and raceways, cylindrical roller bearings have high radial load capacity and are suited to high speed applications.

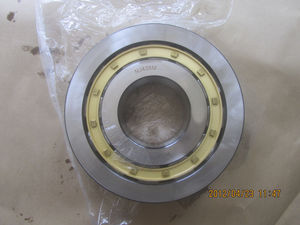

There are several designs, designated NU, NJ, NUP, N or NF for single row bearings and NNU or NN for double row types. In each case, the designation defines the bearing ring rib configuration.
For single row bearings NU and N types the inner and outer rings can move axially, in both directions, relative to one another. These are suited to use as ‘free-end’ bearings.
The other configurations are capable of sustaining axial loads. Double row bearings are used primarily in machine tool applications having high radial rigidity. Both NNU and NN configurations are ‘free-end’ types.
Pressed steel, machined brass and polyamide cages are available. Single row extra capacity designs can also be supplied.
For the steel industry NSK manufactures a range of four-row cylindrical roller bearings. These are primarily designed for use as steel mill roll-neck bearings.
|
|
|
|
|
|
Welcome to RBC's on-line Engineering Data Guide for Spherical Plain Bearings. RBC has been a pioneer in spherical bearing technology since inventing the fractured outer race design over 40 years ago.
Since that time, RBC has continued to introduce industry leading innovations such as high misalignment, angular contact, extended inner ring, tapered bore, case carburized, and enhanced lubrication groove spherical bearing designs. These advanced products are used in pivoting, high load bearing applications where angular misalignment is required. Most typically, RBC spherical plain bearings are employed in hydraulic cylinder rod ends, vehicle steering linkage suspensions, heavy equipment articulated joints, and other severe duty uses.
To access critical dimensions and data for your design questions, use the Search By Criteria section below. If you are uncertain as to which of RBC's Spherical Plain Bearings is best suited for your design application, check with our selection guide. To view an entire product series, select a product from the table of contents.
|
|
RTB - Combined axial-radial roller bearing for indexing tables
Axial-radial precision bearings for indexing tables.
Due to their high axial stiffness and their capacity to bear high tilting moments, UNITEC bearings RTB series are particularly recommended for rotating, positioning and indexing tables and milling heads.
|
|
Timken® cylindrical bearings are designed to manage heavy radial loads through expertly designed critical dimensions, such as roller and raceway diameter and contact geometry. Our cylindrical bearings range from small to large bores - with up to four rows of rollers - for a wide range of industrial applications.
Design attributes:
Large bores for integration into heavy-duty industrial applications
Cylindrical rollers accommodate heavy radial loads
OD sizes 180 mm and larger
Potential applications: power generation, oilfield, mining and aggregate processing, gear drives and rolling mills.
|
|
|
|
|
|
IDEAL FOR DIRECT DRIVES
UNITEC RTB AMS bearings series, with integrated angle measuring system are bidirectional axial-radial combined, designed for rotary tables and spindle heads for machine tools.
To improve performances of applications where RTB bearings series are installed, UNITEC developed new version RTB AMS, integrating AMOSIN precision inductive measuring system.
The manufacturing precision, low resistant torque, high load capacity and stiffness are positioning this bearings range at the top of the market, qualifying them as the most suitable solution for direct drive installations.
UNITEC RTB AMS BEARINGS FEATURES
- Inductive measuring system (NON MAGNETIC)
- Insensitivity to magnetic fields
- Real time output signals (IDEAL FOR DIRECT DRIVES)
- High rotation speed
- High measuring resolution and accuracy
Moreover:
- The most compact solution
- Insensitivity to external agents (IP 67 protected sensors)
- Simple installation
- Quickest setting
- Stable and reliable functioning
- No setting software needed
|
|
Full complement cylindrical roller bearing for cardan shafts applications.
Different sizes available for several purposes
|
|
|
|
|
|
The backing bearings based on cylindrical roller bearings have two or three rows of rollers and are available as full complement bearings (without cage) or as caged bearings, with or without integral flanges or flange rings. The advantage of the bearings without flanges lies in their particularly simple geometrical form and their very high radial load carrying capacity.
Cylindrical roller backing bearings without flanges or flange rings cannot accommodate any axial load. It is therefore necessary to position thrust washers of bronze or plastic between the side faces of the outer ring and the support saddles.
Thrust washers are not required with backing bearings with flanges (or flange rings) as the design of these bearings enables them to accommodate simultaneously acting radial and axial forces.
On each backing shaft of a cluster mill, several bearings are installed side by side. With their outside diameter surface in direct contact with the intermediate rolls, these bearings rotate while carrying components of rolling force. Therefore, the outer rings of these bearings are required to have adequate rigidity and fatigue strength, and should be finished with high precision.
|
|
Split Roller Bearings are used where access for assembly and maintenance is difficult, but reliability is paramount. The ease and simplicity of replacing components, coupled with the capability to withstand harsh and aggressive environments, the Split Roller Bearing is your ideal choice in a range of industries, such as converters, continuous casting machines, drive shafts…
Split designs are available for cylindrical and spherical roller bearings with outer diameters up to 1750mm.
|
|

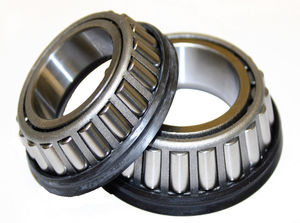

Single-row tapered Roller Bearings are the most widely used tapered roller bearings. They have a high radial capacity and a thrust capacity of about 60% of radial capacity.
The exact percentage depends on the contact angle of the tapered roller bearing. Variations within the type include tapered bores for frequent removal, pin cages and hollow rollers for higher capacity, and steep roller angles for higher thrust capacity.
|
|
|
|
|
|
NSK manufactures a wide range of metric and inch size tapered roller bearings. These bearings comprise of a loose outer ring cup and an inner ring cone assembly with rollers and retaining cage.
These bearings are capable of taking high radial loads and axial loads in one direction. In addition, the HR series incorporates rollers of increased size and number giving higher load capacity.
Tapered roller bearings are generally mounted in pairs with the proper internal clearance being obtained by adjustment of the axial distance between the cups or cones of the two bearings. As well as single row tapered roller bearings, 2 and 4 row versions are available from NSK to support axial loads in either direction.
NSK tapered roller bearings are normally supplied in through hardened high carbon chromium steel. Alternatively, NSK can supply these bearings case hardened or, for more arduous conditions, in a range of advanced patented materials including High-TF and Super-TF. Please contact NSK for more details.
|
|
Tyson Tapered Thrust Bearings are used in applications where heavy loads are present. Tyson Tapered Thrust Bearings offer:
Sealed versions where lubrication is problematic or space constraints do not offer the luxury of a shaft seal
Unsealed versions available
Case carburized bearing quality steel
Size ranges from 1 inch to 3 inches bore diameters
|
|
|
Timken offers the most extensive line of tapered roller bearings in the world. Tapered bearings are uniquely designed to manage both thrust and radial loads on rotating shafts and in housings. We manufacture nearly 26,000 bearing combinations - in single, double and four-row configurations. Sizes range from an 8mm (0.31496'') bore to a 2,222.5mm (87.5'') outside diameter. Customized geometries and engineerd surfaces can be applied to these bearings to further enhance performance in demanding applications.
|
|
|
NU type of cylindrical roller bearings, capable of axial movement, can adapt to the change of relative position between the shaft and shell caused by thermal expansion or installation error, suitable for being used as the bearing at the free end. NJ and NF type of bearings have some loading capacity in one-way axial direction. NN and NNU type of bearings, with high rigidity against radial load, are mainly used in the principal axis in machine tools. This type of bearings are mainly used in various industrial machines such as the motor, generator, gas engine, gas turbine, principal axis in machine tools, reduction gear, handling machine, etc.
|
|
|
CAT can manufacture large size tapered roller bearings metric series and inch series. Delivery time is within 4-5 months for any bearing you may require.
|
|
Tapered roller bearing is a kind of separable bearing, forming the inner component with the roller, cage and inner ring, installed separatedly with the outer ring. We produce single-row, double-row and four-row tapered roller bearings of metric system and inch system respecitively.
Single-row: 302, 303, 313, 320, 322, 323, 329, 330, 331 and 332 series.
Double-row: 3510,3511,3520,3820,3521,3522 and 3529 series.
Four-row: 777/650,2077140,2G77880 etc.
inch system: AK, K, KH, KHM, KL, L and KLM series.
|
|
|
|
