Capex L2
Contamination free pumping

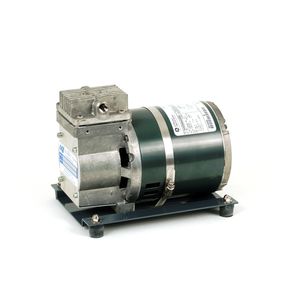

The Capex L2 vacuum pump/compressor provides a clean oil free vacuum and pressure source.
|
|
|
The problem of asbestos is still with us and is the subject of stringent legislation for its removal and disposal. The requirement for quick sample collection and counting of airborne fibre in the shortest time possible means a far higher flow rate than with more conventional sampling methods is required
|
|
|
|
|
|
SIDEPAK™ PERSONAL SAMPLING PUMPS (SP730)
The 3 and 5 L/min SIDEPAK™ Personal Sampling Pumps weigh as little as 16 oz. All models offer TSI's Smart Battery Management System™ with long-running NiMH or alkaline battery packs and provides precise run time information in minutes remaining.
All SIDEPAK pumps are intrinsically safe and ideal for the sampling of aerosols, gases and vapors in hazardous environments.
Advanced personal sampling pump models feature precision volumetric flow control, continuous measurement and logging of volumetric flow rate for accurate sample volume information, fully programmable multi-mode operation and convenient internal low-flow adjustment.
Features and Benefits:
- Multiple battery options
- Precise run time in minutes remaining
- Intrinsically safe (CSA and ATEX Approval)
- Available in single-, 3- and 5-unit kits
Applications:
- Personal exposure monitoring/IH studies
- Ambient/work area monitoring
- Environmental sampling
- Epidemiology health studies
- Engineering studies
|
|

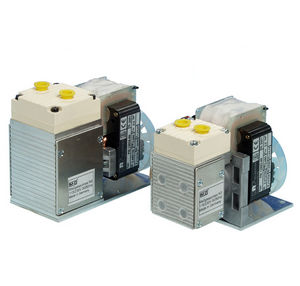

Temperature-resistant and heated Diaphragm Vacuum Pumps and Compressors
Uncontaminated transfer of air and neutral, slightly aggressive gases and vapours at temperatures of 240 °C. Heating prevents condensation of gas. Versions with electronic temperature control.
|
|
|
|
|
|
The Micro Pumps are used frequently in the fields of analysis and medicine.
CONCEPT

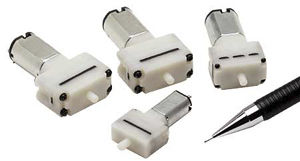

The Micro Diaphragm Gas Sampling Pumps from KNF
are based on a simple principal - an elastic diaphragm,
fixed on its edge, moves up and down its central point
by means of an eccentric. In this way the medium is
transferred using automatic valves.
The range of KNF Micro Pumps is for the equipped with the patented stress-optimised structured diaphragm, resulting in a high pneumatic performance, a durable product and compact size. New, very efficient
valves and sealing systems as well as the precise placement of the pump head are some of the other technical features we can offer.
For pump drive we provide a selection of dc motors with
various levels of performance, durability and price.
AREAS OF USE
KNF Micro Diaphragm Pumps are used frequently in the
fields of analysis and medicine.
For instance as pumps for gas measurement, for
example for sampling environmental conditions in the
workplace, or for exhaust gas and smoke analysis or
built into machines for measuring blood pressure.
As they are dc driven, the micro diaphragm pumps are
suited for use in portable and stand-alone equipment
|
|
ALMATEC pneumatic diaphragm pumps of type AD 6 are a special development for laboratory applications and for sampling water from wells for continuous monitoring of the groundwater under landfills.
They have a maximum delivery volume of 250 l/h which can be infinitely varied by adjusting the air flow. AD 6 pumps are equipped with spring-loaded valves and can therefore be installed in any position.
The housing is made of solid PTFE conductive. This material is resistant to corrosion by virtually all media. Its conductivity permits use of the pump in explosion-hazard areas and for inflammable liquids.
AD 6 pumps meet the ATEX requirements of the directive 94/9/EG.
|
|
Ideal for:
-Air Sampling
-Gas Analyzers
-Liquid Agitation
-Medical Nebulizers
-Aerobic Wastewater Treatment
-Ozone Generators
-Sequential Compression Devices (Circulation Therapy)
Product Features
* Quiet Operation
* Low Power Consumption
* Low Starting Current
* Oil-less, Contamination-free exhaust air
* Long Life
* Automatic Pressure Limitation
* C.E. Compliant and U.L. listed Models
* U.L. Outdoor Rating on HP Series
* Easy to Service
*Custom OEM Models
*Thermal Protection
*Aerobic Wastewater Treatment
*Aquaculture Aeration
|
|
|
|
