With Our Large Selection,
You Can Find Suitable Gears for Almost Any Application!!

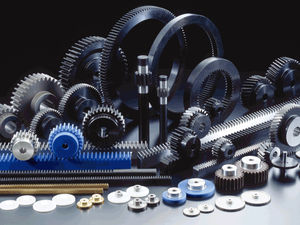

To meet your requirements, KHK stock gears are made in a variety of types, materials, configurations, modules and numbers of teeth. We also offer products that allow secondary operations to be performed on the bores, shafts, outside diameters, keyways and set screws.
|
|
Spur Gears
QTC offers all types of Spur Gears
Ground Spur Gear
Metric Spur Gear
Hubless Spur Gears
Fairloc Spur Gears
Plastic Spur Gears
Steel Spur Gear
Injection Molded Spur Gears.
|
|
A Spur Gear has a cylindrical pitch surface with teeth that are parallel to the axis
Arrow’s size range and capabilities for Spur Gears are provided in the table below.
Maximum Pitch Diameter – 20”
Diametral Pitch – 3.0 – 48
Face Width – 13.0
Unground Tooth – AGMA Q9
Ground Tooth – AGMA Q13
|
|
Product Pricotec
Toothed gears (internal and external toothing), moduls 1 - 24, diameter 20 - 1500, carburizing, hardening, tempering and ground, quality level (5) 4 conforming to DIN 3962-3972
Toothed shafts, moduls 1 - 16, diameter 20 - 400, length 1600 mm, carburizing, hardening, tempering and ground
External splines conforming to DIN 5462, and DIN 5480/82
Crown gears, sprocket wheels
Heat treatment
Friction welding
|
|
| ... products without technical information |
| |
|
|
|
|
Precision Gearheads
Extremely light and compact from Ø6 mm to Ø 44 mm
High torque
All steel construction available
Available in a wide variety of reduction ratios
Smooth and quiet performance
Custom systems available from design to production
Vaccuum and extreme temperature versions available
Long operational lifetime
Spur Gearheads
Extremely light and compact from Ø8 mm to Ø 38 mm
Available in a wide variety of reduction ratios
Smooth and quiet performance
Custom systems available from design to production
Vaccuum and extreme temperature versions available
Long operational lifetime
Low additional system friction
Zero Backlash gearheads available
Hybrid Gearheads
Extremely light and compact from Ø15 mm to Ø 22 mm
Available in a wide variety of reduction ratios
Combines smooth performance of a spur gearhead with the high
torque output of a planetary gearhead
Smooth and quiet performance
Custom systems available from design to production
Vaccuum and extreme temperature versions available
Long operational lifetime
Low additional system friction
|
|
MODEL SERIES - GBW
SPUR REDUCTION GEARHEAD
Design - Gearhead GB W contains heavily loaded steel gear wheels. The spur gears are fixed on steel spindles which are hardened and polished
to a mirror finish & rotate in sintered bushings. The thick output shaft rotates in robust sintered bushings. All the gears are housed in between metal plates & closed by plastic dust cover. All bearings are permanently lubricated and therefore require no maintenance. GB W can also be combined with small to medium sizes of DC motors (up to Ø52mm). Output shaft can also be emerging from the rear side or both sides. Potentiometer can be mounted on to the gearhead & connected to the output shaft by means of a gear ratio (standard = 1.5:1; others possible). Instead of rotational, linear drive also possible (on demand only). Linear versions with 1mm & 1.25mm pitch available.
|
|
GEAR SERIES - GBV/ U
SPUR REDUCTION GEARHEAD
Design -
Gearhead GB V/ U contains heavily loaded steel gear wheels. The spur gears are fixed on steel spindles which are hardened and polished to a mirror finish & rotate in sintered bushings. The thick output shaft rotates in robust brass
bushings. All the gears are housed in between metal plates & closed by plastic dust cover. All bearings are permanently lubricated and therefore require no maintenance. GB V/ U can also be combined with small to medium sizes of DC
motors (up to f52mm).
|
|
GEAR SERIES - GBX
SPUR REDUCTION GEARHEAD
Design - Gearhead GB X contains heavily loaded steel gear wheels. The spur gears are fixed on steel spindles which are hardened and polished to a mirror finish & rotate in sintered bushings. The thick output shaft rotates in robust bronze bushings. All the gears are housed in between metal plates & closed by plastic dust cover. All bearings are permanently lubricated and therefore require no maintenance. GB X can also be combined with small to medium sizes of DC motors (up to f52mm). Output shaft can also be emerging from the rear side or both sides. Potentiometer can be mounted on to the gearhead & connected to the output shaft by means of a suitable gear ratio Instead of rotational, linear drive also possible (on demand only).
|
|
MODEL SERIES - GB38OCP
SPUR REDUCTION GEARHEAD
Design - Gearhead GB38OCP is a multi step gearhead with all polyacetal gears which rotate on steel spindles which are polished to a mirror finish and introduced between metal plates with a plastic frame.All bearings are ermanently lubricated and therefore require no maintenance. Thicker shafts (Ø 6-7mm) mounted in robust bushings (Ø 12) are available. Similarly the gears at the output end can be metal (GB38OCPH) with thick shafts (Ø 6-7mm) & robust bushings. Sintered gears variant also possible (GB38OCSi).
|
|
GEAR SERIES - GB4
SPUR REDUCTION GEARHEAD
Design - Gearhead GB4 contains heavily loaded steel gear wheels. The spur gears rotate on fixed steel spindles which are hardened and polished to a mirror finish. The thick output shaft rotates in robust sintered bushings. It can also be mounted on a ball bearing which can be provided in the output bush of the gear box. All the gears are housed between two metal plates with a plastic frame. All bearings are permanently lubricated and therefore require no maintenance. Econamical versions with poly-acetal or sintered gears
available. This gear box can also be combined with small to medium sizes of DC motors. Linear drives also possible with medium sized motors (Ø<40mm).
|
|
NEMA-Connection for Spur- and Planetary Gearheads – NEMA 17
Please select your requested gear motor via click on the icon in the coordinate system (speed – torque).
|
|
Customized special gears
Standard spur and planetary gearheads
- Ø 6 - 81 mm
- 0.002 - 120 Nm
Characteristics
- Matched to maxon motors
- Efficient transmission of torque and speed
- Reduction ratios from 4:1 to 5752:1
- High precision
- Low noise level
- Comprising high-tech CIM/MIM components
- Autoclavable versions available
|
|
The POSIRED 2 range with its high degree of standardization and consistent modularity ensures flexibility and short delivery times. A large number of standard options with a great variety of versions guarantee optimal adaptation in almost every area of mechanical and plant construction. An extensive range of accessories in-creases the adaptability of this gear reducer. As a standard, fans, cooling coil, external oil cooler, heating rods, torque supports, engine consoles, sub-constructions and operation monitoring systems are available.
Technical Data:
Torque (T2 nominal): 1,000 up to 800,000 Nm
Transmission Ratio: 1.25 up to 710 iN
Power Rating: up to 4,400 kW
|
|
| ... products without technical information |
| |
Features:
robust cast iron housing
gearing meets up to date international high standards
wide selection of motors and brake-motors including inverter-duty motors
units available for harsh environments
integrally cast foot or flange designs
sleek design for easy cleaning
all bearings selected to provide long and trouble-free operation
high quality sealing for enhanced leakage-protection
output side is integral part of the housing, no bolt-on output cover to cause leakage or gear-misalignment
|
|
Spur Gearheads
Compactline, for extremely quiet and high-performance drive applications.
Flatline, with the same approved properties as the Compactline but extra flat, making it ideal for limited space situations
|
|
ROTEK spur gears -- Flexible and reliable operation
Multiple speed ratios - maximum flexibility
Suitable for use in a variety of applications from equipment manufacturing through to heavy-duty industrial environments. Our spur-gear transmission ranges are equipped with hardened steel gears, premium lifetime lubrication, and robust sintered bronze bearings for a longer working life.
Multiple speed ratios and numerous options provide for maximum flexibility no matter what your application. In combination with our motors, they give customers an extremely compact drive unit.
Benefits
> high efficiency even at high gear ratios
> excellent cost-performance ratio
Charateristics
> low backlash
> maintenance free
Options
> customized shafts
> low-noise variants
> special lubrication
|
|
DESCRIPTION
Leading applications: general purpose, medium and fractional power drives.
Design: housings and covers of aluminium die cast up to size 4, of cast iron from size 5; two- and three-gear trains.
|
|
Uniblock design for foot and flange mounting. Gear case machined on all sides for universal application.
Revolutionary new gearing geometry here and in all the other models results in exceptional running smoothness. For special environmental conditions the gear unit can be fitted with two shaft seals.
|
|
STRÖTER - Helical geared motors
Range of power : 0,09 - 22 kW
STANDARD DESIGN
Motor : Three phase IEC AC- motor
Voltage : 230/400V - 400/690V
Power : 0,09 - 22 kW
Type of protection : IP 55
Insulation class : "B"
Mounting position : "B3"
OPTIONAL ACCESSORIES*
Mounting position : "B5" - flange mounted
Motor : Brake motors, Pole changing motors, Explosion
proof motors, DC - motors
Special : voltage / frequency
Type of protection : IP 56
Insulation class : "F" or "H"
Other : PTC Thermistor or temperature switch
MIG - Incremental pulse encoder
* special price
|
|
Benefits of ABM helical geared motors
Helical geared motors are the most commonly used industrial gearboxes. They efficiently increase motor torque while reducing motor speed to a
favorable range.
Key features of ABM helical geared motors:
- Energy conserving operation at 98% efficiencies per stage
- Outstanding value at competitive prices
- Robust and maintenance free
- Very low emission operation compared to com-bustion engines and hydraulic or pneumatic drives
High quality helical gearing with ground gear tooth flanks that guarantee quiet operation and precise torque transfer.
Applications:
- Material handling, cranes and hoists
- Textile production
- Construction industry (elevators, pumps)
- Packaging industry
- Sheet metal fabrication
|
|
|
|
|
|
SEW-Eurodrive's R-Series parallel gearmotors deliver exceptional performance and reliability combined with low maintenance. Available in many configurations, they continually distinguish themselves with their efficiency and durable gearing.
- Reducers
Gears manufactured from certified steel, heat treated to a case hardness of 58-62 Rockwell C for long gear life
Finished ground or shaved gear teeth to assure maximum mechanical efficiency (1-1/2% loss/gear stage), minimum noise and heat generation
High capacity anti-friction bearings for optimum load carrying capacity and long life
Captured keys on output shafts
Gearcases are made of high-strength, gray cast iron, SAE Class 30; R27 and smaller are made of high-strength, pressure-cast aluminum
High cross-section modulus design, with center wall for maximum rigidity
Center tapped holes on output shafts
Double output seal design consisting of patented bi-helix inner seal made of Viton® and double-lip Nitrile (Buna-N) outer seal*
-Motors
NEMA Design B/C
Inverter duty
Connection terminals
Extremely low motor inertia
Mark for shipment into Europe
|
|
|
Technical Description. Motor casing: rolled, corrossion protected Excitation field: Permanentmagnet. Method of bearing, A-side: Sleeve bearing. Method of bearing, B-side: Sleeve bearing. Gear: Spur gear. Gear housing: plastic. Gear wheel: plastic. Gear greasing: lubricant/permanent lubrication. Mechanic interface: Output shaft. Electric interface: Connector or leads with connector.
|
|
| ... products without technical information |
| |
| ... products without technical information |
| |
|
Limit switches are necessary for the independent delimitation of movements at cranes, lifting witnesses and similar transporting equipments. A further application results for the execution of monitoring and tasks of bolting device. The rules for the prevention of accidents require that with powered lifting gears the upward motion must be limited by a limit switch. It must still permit the downward movement after its responding. With corridor-served gantry cranes with stationary control stand limit switches are prescribed for the crane and crab traversal. The limit switches are implemented with transmission, spindle or lever drive and can switch their full achievement up to 600mal per hour.
|
|
|
The new Yale hand chain hoist VSplus is through further technical development the successor of our proven VS model. We set new standards with the extremely robust all-steel construction and high quality bearings for drive pinion, load chain sheave and gearbox. A maximum of corrosion prevention and maintenance friendliness are special features of this model.
|
|
... see all the products in the category
Hoists
|
|
|
