Rolux 2.0 hand-held stroboscope
The rolux hand-held stroboscope is ideal for proximity rotational speed measurement of plants and machinery, as well as for observing moving parts in operation. Adjust the flash sequence so that the object appears stationary to the human eye, and you can then read the speed or frequency of movement from the LCD on the rolux.
Comparison between rolux and rolux 2.0
Specification rolux rolux 2.0
Light Emission 800 Lux 1200 Lux
Flash Duration < 20 ìs 2 h
With power supply — Continuous use
It uses xenon technology to produce extremely bright flashes at a reduced power consumption.
The compact design of the rolux hand-held stroboscope and its one-hand operation give it the flexibility to be used at poorly accessible locations.
The device registers speeds and oscillation frequencies during operation at poorly accessible or particularly sensitive points. It can also be used to observe fast, recurring sequences of movement. Example applications of the device include observations of fan blade deformation, the position of a toothed belt under load or separation of substances in a centrifuge. These are just a few illustrations of its huge range of uses in this field.
Features of the rolux hand-held stroboscope at a glance:
Xenon technology
1200 Lux
flash duration 2 hours continous use time with battery
Lithium-Ion battery technology
continous use possible with power supply unit
Measuring range from 30 to 12,500 flashes per minute (fpm)
longevity of Xenon lamp more than 200.000.000 flashes (@ 6.000 fpm)
Dynamic rotary encoder
LC display
|
|
|
The rolux hand-held stroboscope is ideal for proximity rotational speed measurement of plants and machinery, as well as for observing moving parts in operation. Adjust the flash sequence so that the object appears stationary to the human eye, and you can then read the speed or frequency of movement from the LCD on the rolux.
|
|
Rheintacho's tried and tested hand-held units record rotational speeds and run lengths. Some of them use a proximity system by shining a light beam on a reflective mark; others use a contact system with special adapters for different applications.
The new hand-held stroboscope measures rotation and vibrations even in the most inaccessible places. No physical intervention is required on the systems to be tested. If the stroboscope flash frequency matches the frequency of movement, the test object appears stationary.
|
|
Technical Highlights:
– Up to 40 000 Flashes per
minute (FPM) xenon
– Accuracy: 0,05 % of the
applied value
– Display with backlight
Resolution of SC models:
0.1 FPM 1000 FPM
Power supply 4 x 1.5 V AA Batteries
Internal memory for 10 commonly used
rotation frequencies (only SB 40K0.1)
Fast check x 2 /2 for quick range control
Quick-Set Function H/L to avoid the
time-consuming adjustment
Application:
When the speed or the
rotation of a moving object
matches the flash rate of
the stroboscope, the moving
object appears still.
The instrument can give the
user the illusion of “stopped
motion”, when the
observed object is actually
in a moving state.
Auto-Stop function: Turns
the instrument off after 5
min to conserve the strobe light.
By adjusting the flashing
rate until the observed
object is perfectly standing,
the operator can
• measure the speed or the
rotations frequency of the
object contact-free
• study a process in action
|
|
Stroboscopes are used for non-contact speed measurement as well as to visualize rapidly repeated movements on machines and plants and the driving parts of those machines in 20-50cm distance. The monitored moving element or material is flashed with a frequency near to the rate of repetition, which enables to see a slow motion or standstill objekt.
> LED Stroboscope with 120.000 FPM
> Hand-Stroboscope, battery powered
> High illuminance Xenon-Stroboscope
> Stationary LED-Stroboscope for nonstop operation
|
|
|
|
|
|
ALL NEW Nova Strobe x Series - The standard for high intensity multi-function portable stroboscopes. Models are available with digital displays, battery or AC power, and a useful range of features which provide unmatched performance and value. Four models range from the Nova-Strobe dbx Deluxe the most versatile battery powered digital stroboscope with internal phase shifting, down to the Nova-Strobe bax Basic, the most cost effective AC powered digital stroboscope.
Both the battery powered Nova-Strobe dbx and AC powered Nova-Strobe dax provide a range of 30 to 20,0000 flashes per minute and an accuracy of ±0.002 of setting. Flash rates are easily adjusted to fractional RPM by a coarse/fine control knob. Individual TTL compatible input and output jacks are provided for ‘daisy chaining’ of multiple strobes, triggering from an external source, or providing a trigger signal to external equipment.
Both dbx and dax provide internal phase shifting to keep the target precisely in view. Both provide x2 and ÷2 capability for distinguishing actual RPM from harmonic frequencies. In addition, 9 user presetable memory flash rates for repetitive measurements and storage of the last flash rate measured are included.
|
|
|
|
|
|
DS5
HIGH BRIGHTNESS AND COMPACT DIMENSION
RECHARGEABLE BATTERY POWER SUPPLY
- Portable stroboscope with high brightness and small dimension
- Ideal whenever it is necessary good brightness and high portability
- Flash frequency up to 5.000 flashes/min
- Flash control by internal oscillator and external trigger, with tachometer fucntion
- Frequency regulation quick and precise with two potentiometers for coarse and fine adjustment
- Large dot matrix LCD display for easy RPM readout
- Dividing function :2 :4 permits observations of fast movements at lower flashes frequencies, with higher flash brightness and longer life of battery charge and xenon lamp
- Rechargeable battery power supply
- Double AC/DC power supply (by means of the supplied AC adapter) : 220Vac + internal rechargeable battery
- Phase-shifter circuit, to obtain the angle of observation into the most favourable position on 360°
- Manual control of brightness of flash lamp on two intensity (Extra Light function)
- Light-weight and small dimension for hand-held operations
- Simple to use
- Compact, rugged, reliable
- Encased in a rugged, high-impact plastic housing
- Supplied with charger and carrying case
- Fully complies with CE directives
|
|

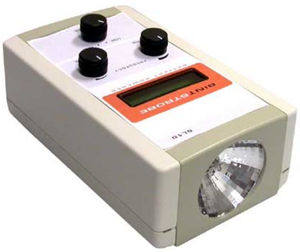

SL10
ENTRY LEVEL - LOW PRICE - THE BEST PERFORMANCES/PRICE RATIO RECHARGEABLE BATTERY POWER SUPPLY
- Combines goods performances with the advantages of compact dimension and low price
- Flash frequency up to 10.000 flashes/min
- Flash control by internal oscillator
- Frequency regulation quick and precise with two potentiomaters for coarse and fine adjustment
- Large dot matrix LCD display for easy RPM readout
- Rechargeable battery power supply
- Double AC/DC power supply (by means of the supplied AC adapter) : 220Vac + internal rechargeable battery
- Manual control of brightness of flash lamp on two intensity (Extra Light function)
- Light-weight and small dimension for hand-held operations
- Simple to use
- Compact, rugged, reliable
- Encased in a rugger, high-impact plastic housing
- Supplied with charger and carrying case
- Fully complies with CE directives
|
|
|
|
|
|

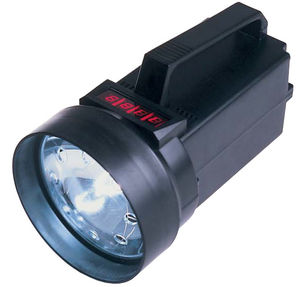

DGT25M
AT THE TOP OF THE BINTSTROBE RANGE - HIGH CHARACTERISTICS
AND PERFORMANCES FOR USERS WITH HIGH REQUIREMENTS
- At the top of BINTSTROBE range, a complete and reliable professional stroboscope with high characteristics and performances
- Range up to 25.000 flashes/min (over range until 200.000 flashes/min using DIV function)
- Frequency regulation quick and precise with two potentiomaters for coarse and fine adjustment
- Speed readout in RPM and Hz, with tachometer function
- Flash control by internal oscillator and by external trigger
- Large dot matrix LCD display for easy RPM readout
- High brightness of flash lamp
- Automatic control of brightness on two intensity
- Dividing function :2 :4 :8 permits observations of fast movements at lower flashes frequencies, with higher flash brightness and longer life of xenon lamp
- Phase-shifter circuit, to obtain the angle of observation into the most favourable position on 360°
- Standard 0-5V TTL output, to connect external devices
- RS232 output available as optional
- Available with internal or separate lamp : it is possible adding up to 5 separated Lamp
- DGT25M/IL : with internal lamp
- DGT25M/EL : with external separate lamp : a remote Control Unit and one or more separate Lamp; lenght of cable betwenn Control Unit and Lamp can be over 20 meters, to positioning instrument and Lamp into different rooms
- 220Vac-50/60Hz power supply
- Rugged and reliable
- Compact, light-weight
- Encased in a rugged, high-impact plastic housing, with handle for the best portability
- Supplied with carrying case
- Fully complies with CE directives
|
|
|
|
|
|
SL20
FAST MOTIONS - THE PORTABLE WITH HIGH PERFORMANCES
RECHARGEABLE BATTERY POWER SUPPLY
- Suitable for observation of fast motions
- Range up to 20.000 flashes/min
- Flash control by internal oscillator and by external trigger, by tachometer function
- Frequency regulation quick and precise with two potentiometers for coarse and fine adjustment
- Large dot matrix LCD display for easy RPM readout
- Phase-shifter circuit, to obtain the angle of observation into the most favourable position on 360°
- Dividing function :2 :4 :8 permits observations of fast movements at lower flashes frequencies, with higher flash brightness and longer life of battery charge and xenon lamp
- Rechargeable battery power supply
- Double AC/DC power supply (by means of the supplied AC adapter) : 220Vac + internal rechargeable battery
- Automatic control of brightness of flash lamp on two intensity
- Good brightness also at high frequencies
- Light-weight and small dimension for hand-held operations
- Simple to use
- Compact, rugged, reliable
- Encased in a rugger, high-impact plastic housing
- Supplied with charger and carrying case
- Fully complies with CE directives
|
|
