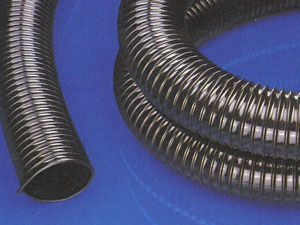

PU suction and transport hoses, electrically conductive ≤ 10 4 Ohm.
Available in lightweight up to heavy qualities, hose wall: 0,7 mm up to 2,1 mm, DN 16 - DN 500
Applications:
dangerous areas, where electr. conductivity is demanded; suction and transport hoses for abrasive materials, gaseous and liquid media, oil spray extraction, protection hose against mechanical pressure
Properties:
- abrasion resistant
- resistant to oil and fuels,
- gas tight
- good chemical resistance
- free of plastizisers and halogens
- generally good UV and ozone resistance
- very flexible, lightweight
- small bend radius
- nearly smooth inside
- optimum flow characteristics
- electrically conductive to BGR 132 by grounding spiral
Installation and connecting possibilities:
hose clamps, hose reducers, hose connectors
Combiflex connecting system:
PU cuffs, PU-DIN-flanges, quick action cone flange joint system, PU threaded socket
|
|
Hardly inflammable PU suction and transport hoses,
available in lightweight up to heavy qualities, DN 16 - DN 500
Temperature range: -40 °C up to +90 °C,
intermittent up to +125 °C
Applications
Hardly inflammable PU hoses for abrasive materials, woodworking machines, chips exhaust in woodworking industries, protection hose against mechanical pressure
Properties:
- hardly inflammable acc.to DIN 4102 BI
- extremely flexible, small bend radius
- extremely abrasion resistant
- generally good UV and ozone resistance
- nearly smooth inside, optimum flow characteristics
- crusch resistance (only Master-PUR STEP)
Recommended connecting elements:
hose clamps, hose reducers, hose connectors
Combiflex connecting system:
PU cuffs, PU DIN flange, quick action cone flange system, PU threaded socket
Hoses are also available in the following qualities:
- microbe and hydrolysis proof
- food quality (FDA)
- antistatic and electrically conductive
|
|

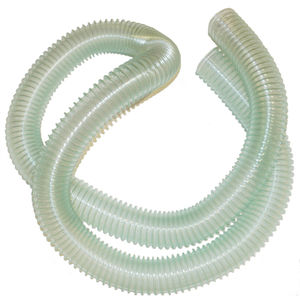

Heavy Duty Suction Hose
* Constructed from a rigid PVC spiral encased in flexible PVC
* Stock sizes from 1” to 6” ID
* Bottle green and/or grey
* Weather resistant and durable
* Constructed from 100% PVC
* Excellent pressure and vacuum ratings
|
|
Medium Duty Suction Hose
* Constructed from a rigid PVC spiral encased in flexible PVC
* Stock sizes from 1” to 6” ID
* Olive green
* Weather resistant
* Durable
* Lightweight
* Flexible
* 15% lighter than HDS
|
|

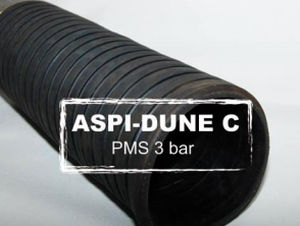

- Tube: Black, oil resistant synthetic rubber.
- Reinforcement: Textile Reinforcement with Helix wire
- Cover: Black, oil and abrasion resistant Synthetic rubber.
- Temperature Range: -40 F to +250 F
|
|
The LOC-LINE® 2 1/2" Vacuum Hose is designed to be added to an existing central vacuum system to extract smoke, dust, fumes and particles at the source. It is easy to position within a work area and can be mounted to 3" thin walled PVC drain pipe, 3" sheet metal duct, or a portable shop vacuum.
Vacuum hose Applications
Soldering
Wet Grinding
Machining applications; especially mist, graphite and particles
Chemical odors and fumes (except acids)
Woodworking
Temperature specifications
Melting point: 329¡
Maximum operating temperature: 170¡
Anti-static hose electrical properties
Surface Resistivity: 1.000E3 Ohm
Volume Resistivity:
<6.000E2 Ohm-cm
|
|
# PVC Sheathed Nylon tube (Flame retardant & standard PVC)
# Weld Spatter Tube (Flame retardant PVC Covered PPU)
# PVC covered Nylon
|
|
Specially designed for vacuum applications
High flexibility and minimum curvature radiuses make it ideal for cable chains.
|
|
General Purpose Vacuum Hose
* Constructed from a rigid PVC spiral encased in flexible PVC
* Stock sizes from 1” to 4” ID
* Weather resistant
* Durable
* Lightweight
* Flexible
* Good crush and kink resistance
Technical Information
* Vacuum: 600mm Hg = 80% at 20°C *
* Temperatures: -15°C to +65°C. Cold bend - 45°C *
* The wall is constructed from a rigid PVC spiral encased in flexible PVC
* Minimum friction and maximum flow is maintained by the smooth bore
* Good abrasion, rot and chemical resistance
* Excellent pressure and vacuum ratings
* Wide operating temperature range
* Good crush and kink resistance
* Subject to minimum order quantities GVH is also available in yellow or black Flame Retardant grade
|
|
|
All food and beverage hoses are made to required FDA standards. Hoses are stocked for liquids, oils and abrasives and are available in PVC and applicable rubber compounds.
|
|
VH-4 1/4” Vacuum Hose
VH-6 3/8” Vacuum Hose
VH-8 1/2” Vacuum Hose
VH-12 3/4” Vacuum Hose
VH-16 1” Vacuum Hose
VH-20 1-1/4” Vacuum Hose
VH-24 1-1/2” Vacuum Hose
VH-32 2” Vacuum Hose
VH-40 2-1/2” Vacuum Hose
VH-48 3” Vacuum Hose
|
|
| ... products without technical information |
| |
... see all the products in the category
Hoses
|
The LOC-LINE® 2 1/2" Vacuum Hose is designed to be added to an existing central vacuum system to extract smoke, dust, fumes and particles at the source. It is easy to position within a work area and can be mounted to 3" thin walled PVC drain pipe, 3" sheet metal duct, or a portable shop vacuum.
Vacuum hose Applications
Soldering
Wet Grinding
Machining applications; especially mist, graphite and particles
Chemical odors and fumes (except acids)
Woodworking
Temperature specifications
Melting point: 329¡
Maximum operating temperature: 170¡
Anti-static hose electrical properties
Surface Resistivity: 1.000E3 Ohm
Volume Resistivity:
<6.000E2 Ohm-cm
|
|
Specially designed for vacuum applications
High flexibility and minimum curvature radiuses make it ideal for cable chains.
|
|
General Purpose Vacuum Hose
* Constructed from a rigid PVC spiral encased in flexible PVC
* Stock sizes from 1” to 4” ID
* Weather resistant
* Durable
* Lightweight
* Flexible
* Good crush and kink resistance
Technical Information
* Vacuum: 600mm Hg = 80% at 20°C *
* Temperatures: -15°C to +65°C. Cold bend - 45°C *
* The wall is constructed from a rigid PVC spiral encased in flexible PVC
* Minimum friction and maximum flow is maintained by the smooth bore
* Good abrasion, rot and chemical resistance
* Excellent pressure and vacuum ratings
* Wide operating temperature range
* Good crush and kink resistance
* Subject to minimum order quantities GVH is also available in yellow or black Flame Retardant grade
|
|
|
All food and beverage hoses are made to required FDA standards. Hoses are stocked for liquids, oils and abrasives and are available in PVC and applicable rubber compounds.
|
|
VH-4 1/4” Vacuum Hose
VH-6 3/8” Vacuum Hose
VH-8 1/2” Vacuum Hose
VH-12 3/4” Vacuum Hose
VH-16 1” Vacuum Hose
VH-20 1-1/4” Vacuum Hose
VH-24 1-1/2” Vacuum Hose
VH-32 2” Vacuum Hose
VH-40 2-1/2” Vacuum Hose
VH-48 3” Vacuum Hose
|
|
|
ANVER is the largest manufacturer of Vacuum Tube Lifting systems in the United States with the widest selection of Vacuum Tube Lifters and Replacement Vacuum Tube Lifter Parts in the industry. ANVER VT Vacuum Tube Lifting Systems can be configured to handle all load types: porous, semi-porous and non-porous. For porous and semi-porous load handling, we recommend you allow us the opportunity to test your load in order to determine the actual system capacity and capability. ANVER can provide an ergonomic vacuum tube lifting system for many special and customized lifting applications, a few examples of which are shown on our website.
|
|
The vacuum tube lifter JumboFlex is ideal for the frequent and very rapid movement of lighter goods, i.e. those with a weight of up to 35 kg.
The modular Jumbo system can do almost anything: regardless of whether you want to stack boxes on pallets, load barrels on a truck, move cans, furniture bodies, rolls of film and foil - with the Jumbo, you always have the best solution. All transport operations can be carried out faster, more ergonomically and more safely with the Jumbo.
For anyone who has to lift objects, the Jumbo is an investment in good health, since it relieves the stress on the spine and joints.
|
|
Lifting, lowering, swivelling, loading and transporting loads is "child's play" with the vacuum-tube lifters.
The modular Jumbo system can do almost anything: regardless of whether you want to stack boxes on pallets, load barrels on a truck, stack metal or wooden sheets, move stones or furniture - with the Jumbo, you always have the best solution. All transport operations can be carried out faster, more ergonomically and more safely with the Jumbo.
For anyone who has to lift heavy objects, the Jumbo is an investment in good health, since it relieves the stress on the spine and joints.
|
|
| ... products without technical information |
| |
Toshiba offers a wide family of thermionic vacuum tube covers X-Ray tubes, X-Ray Image Intensifier, micorwaves tubes and a large variety of proportionnal counters.
Toshiba America Electronic Components, Inc. (TAEC) offers Magnetron Tubes for residential and commercial Microwave ovens as well as imaging system components for a variety of medical, dental and industrial applications. For the latter, the company has established itself as the single source for the complete image chain to meet the needs of all major applications. This product line includes x-ray tubes, a variety of image intensifiers (from 4- to 16-inches), optical units (lens, adapter and cover) and CCD cameras with up to 1K x 1K image resolution. All of TAEC's imaging components offer superior image sharpness, optimized uniformity and maximum image brightness.
|
|
| ... products without technical information |
| |
|
Pfeiffer Vacuum's product portfolio is rounded out by a broad selection of components, feedthroughs and lubricants. Standard valves in numerous designs, e. g. manually, electropneumatically, or electromagnetically operated.
|
|
The NOVAIR medical vacuum stations are designed and manufactured according to and in compliance with the European standards (ISO EN 7395-1, ISO EN 737-3). All of of our medical vacuum stations are marked as CE medical devices according to 93/42/CEE European Directive.
Medical vacuum stations are available in a wide range of configurations:
- single, duplex, triplex and multiplex sources
- horizontal, vertical, modular and shelterized configurations
- electromechanical and/or electronic control features
- output flow: from 5 to 1000 m3/h
A complete range of medical vacuum piping accessories is also available.
|
|
|
|
