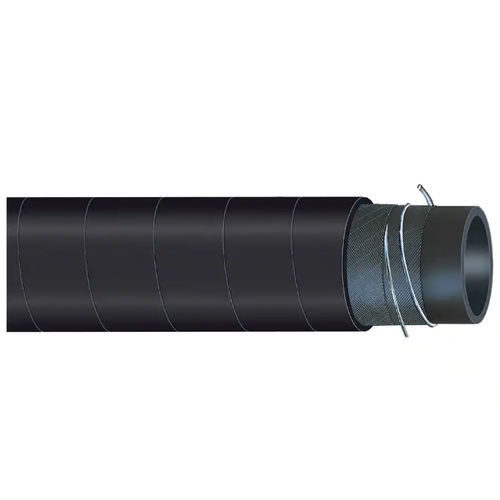

Water hose IH3653 series
for dieselfor airfor hydrocarbons

water hose
water hose
Add to favorites
Compare this product


for water, for diesel, for air, for hydrocarbons, for mineral oil
suction, transport, discharge, dispensing
Other characteristics
Inner diameter

Max.: 150 mm
(5.906 in)

Min.: 19 mm
(0.748 in)

Outer diameter

Max.: 170 mm
(6.693 in)

Min.: 29 mm
(1.142 in)


1 MPa


Max.: 100 °C
(212 °F)

Min.: -30 °C
(-22 °F)


Carburite 10 is engineered for suction and delivery of mineral oils and refined fuels (with aromatic content not exceeding 50 %) Carburite 10 is a lightweight suction and discharge hose designed to handle hydrocarbons, mineral oils, diesel, ethanol and gasoline in transport service and processing plants. It is a very versatile hose and can be also used for water and air in general service applications. This provides an excellent solution for warehouse control avoiding proliferation of stock. Markets • Transportation • Industrial • Mobile Features/Benefits • Crimped with 48 series and Large Bore series provides an integrated solution • Suction capability and kink resistance increases the range of applications • Design Factor 3:1 enhances safety for operators and equipment Applications • Road and rail tankers • Refineries • In-plant and storage tank transfer • Air and water


No catalogs are available for this product.

See all of Parker Stratoflex‘s catalogs
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
