Air hose 3000 71 11
for waterfor oilgrease

air hose
air hose
Add to favorites
Compare this product


Characteristics

Use
for water, for air, for oil, grease
Material
NBR, nitrile, silicone, FKM
Applications
construction, protection, cooling
Other characteristics
for refrigerant fluids, self-fastening, silicone-free, braided, fabric-braided
Inner diameter

Min.: 6.3 mm
(0.248 in)

Max.: 19.1 mm
(0.752 in)

Outer diameter

Min.: 13 mm
(0.512 in)

Max.: 27 mm
(1.063 in)

Pressure

Min.: 1 MPa

Max.: 2.8 MPa

Temperature

Min.: -40 °C
(-40 °F)

Max.: 170 °C
(338 °F)

Description

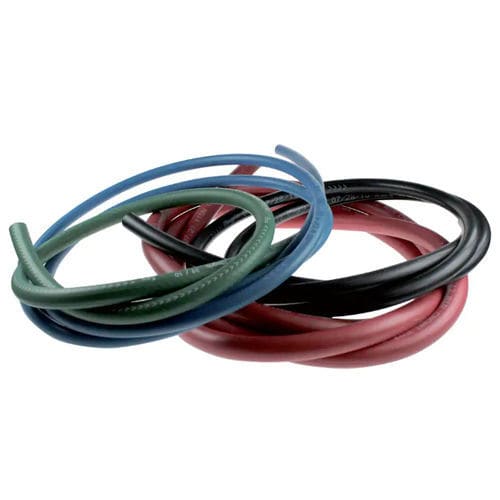

Parker Legris self-fastening hoses are designed to be used with Parker Legris barb connectors or mold quick couplings to convey lot of in-plant industrial fluids. They offer both the sealing and robustness reliability of self-fastening technology and the simplicity of installation with a long service life. Parker Legris self-fastening NBR hoses are designed according to CNOMO E07.21.115N*. This range of hose is a versatile general purpose hose designed to handle air, coolant, mild chemicals and water. The hose construction incorporates a tube, in different materila according to the version NBR, EPDM, FKm or Silicone, that is compatible with light oil mists found in air tool lubricating systems, water, oil and fuel and the textile or metallic reinforcement provide flexibility and high mechanical resistance. The cover NBR, EPDM or metal is resistant to abrasion, heat and ozone, and is available in 4 main standard colors for color-coded identification Features/Benefits: - Exceptional Endurance • Unsurpassed resistance to repetitive flexing • Protection against spark and flame • Abrasion and crush-resistant • UV-resistant - Ideal for In-Plant Automotive • Excellent ozone resistance • Perfect for cooling systems • Maximum flow with low pressure drop • 4 colours for immediate circuit identification • Silicone-free for NBR version - Ready-To-Use • No lubrication, additive (grease, oil, …etc), or preparation time required • To connect: push the hose fully home against the fitting shoulder • To disassemble: cut the hose on the barbed side of the fitting Markets: • Machine Tools • Miscellaneous Manufacturing • Vehicle Assembly Facilities
