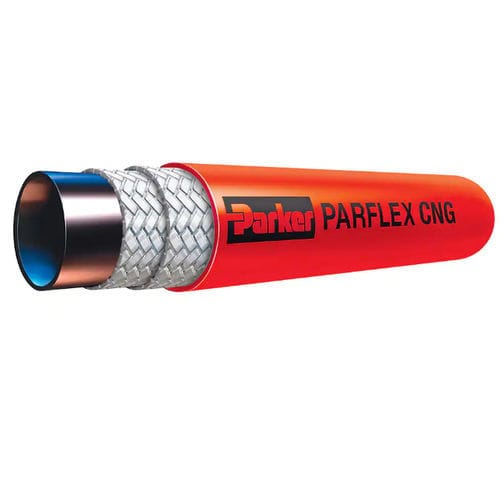

Fuel hose 5CNG series
nylonpolyurethanevinyl

fuel hose
fuel hose
Add to favorites
Compare this product


Characteristics

Use
for fuel
Material
nylon, polyurethane, vinyl
Applications
transport, for transfer, for the automotive industry, refuelling, dispensing
Other characteristics
reinforced, for natural gas
Inner diameter

Min.: 6 mm
(0.236 in)

Max.: 25 mm
(0.984 in)

Outer diameter

Min.: 14 mm
(0.551 in)

Max.: 40.4 mm
(1.591 in)

Pressure

34.5 bar
(500.38 psi)

Temperature

Min.: -40 °C
(-40 °F)

Max.: 85 °C
(185 °F)

Description

5CNG compressed natural gas hose for on-vehicle fuel systems and CNG dispensers is used to transfer compressed natural gas (CNG). 5CNG hose is up to 30% lighter than rigid tubing and is supplied in a single-line or bonded twin-line CNG hose assembly. A twin-line hose assembly can reduce part number complexity and eliminate tangled hoses in a dispenser system. Markets: • Transportation • Refueling Stations • Automotive Features/Benefits: • Light weight • Electrically conductive nylon core tube • Twin-line hose assemblies prevent tangling • CSA listed • Available in ¼” (-4) to 1” (-16) Conforms to: • ANSI/CSA NGV 4.2*CSA 12.52 (Class A, Class D) • ECE R110 CNG Class 6 • ANSI NGV 3.1*CSA 12.3 (Class B - P36) 5CNG-8 only • NFPA 52 • CSA Certified (www.csagroup.org) Applications: • CNG dispenser • Fleet transit • CNG fuel transfer • Residential CNG refueling Technical Specifications: • CNG hose must be assembled at the factory or by a Parflex approved facility • Appropriate wire and vinyl guards must be used on ANSI/CSA compliant single-line and twin-line bonded hose assemblies -4 to -8 SS wire guards -12 & -16 Vinyl guards • Hose I.D. is nominal • Hose O.D. is maximum
