We invite you to see motive catalogue to understand the peculiarities of this product. Few words are not enough to illustrate its advantages.
|
|
|
|
|
|
SPINDLE UNITS “ MECRS“
The MECRS spindles series was designed and built to give high performance in a compact design whenever speed and accuracy are called for. The MECRS spindle range features rapid tool change and is blower-cooled, making it ideal for stone, marble and granite working.
STATOR: windings featuring double encapsulation
INSULATION CLASS: F or superior
BEARINGS: front: a couple of single row angular contact ball
bearings.
rear: single row deep groove ball bearing.
ROTOR: squirrel-cage rotor.
HOUSING: high resistance extruded aluminium.
BEARING HOUSING: rear and front bearing housing made of cast iron.
MOTOR COOLING: electro fan (patent pending) technology to allow optimal cooling even at lower operating speeds and improve noise reduction. This solution allows building more powerful spindles compared with models featuring traditional self air cooling.
BLOWER: powered by 380 three-phase 50 Hz.
DUTY SERVICE: S1; S6 60%
IP CLASS: IP 55
TOOL ATTACHMENT: ISO 40 or MAS BT 40 cone
TOOL CHANGE: pneumatic
UPON REQUEST:Varnishing, different power and polarity requirements, rotary union for water passage (VEM patent); spindle orientation by magnetic encoder, ISO 50 cone and maintenance
kits.
|
|
Pacesetter 30R AC Inverter Duty Motor
Quintsulation 5-stage insulation system designed to meet NEMA MG 1-1993, Section IV, Part 31.
230VAC, 60 Hz, 3-phase for operation with a wide range of inverter products.
Inverter-Grade magnet wire and Class "F" insulation system for increased protection against spikes and corona damage caused by the inverter.
UL recognized for construction, CSA certified, and in compliance with the Low Voltage Directive "CE".
Standard Features:
Totally enclosed, non-ventilated IP-20 rating.
Class "F" insulation system for long life.
Aluminum endshields for high thermal efficiency and light weight.
Permanently lubricated, noise tested ball bearings.
Locked bearing design minimizes shaft endplay.
Application Information: Face mounting is standard.
|
|
|

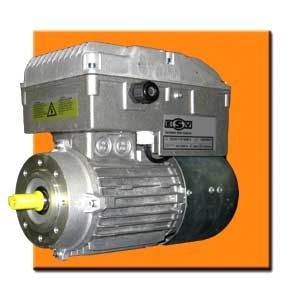

The standard motors in the designs B3, B5, B14 can be used with frequency inverters, also available as motors with integrated inverters.
|
|

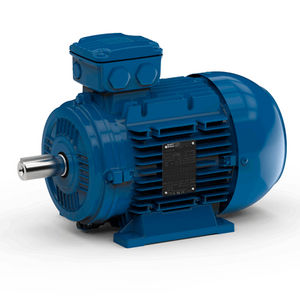

Low Voltage Motors
Low voltage motors with standard configurations are always available from stock. Also in stock are three-phase low voltage motors, either as squirrel cage or as slip ring model.
Standard degrees of protection:
IP 55 (fully enclosed)
IP 23 (open construction, open circuit air-cooled, with drip-water protection, suitable for indoor installation only)
|
|
|
|
|
|
Standard Features
Output: 0.12 up to 7.5kW
Multivoltage - (220-240/380-415//440-460V or 380-415/660-690//440-460V)
Self Ventilated (TEFC)
EFF2 Improved Efficiency
Aluminium frames (63 up to 132M)
Mounting: B3T
Degree of Protection: IP55
Terminal block
Squirrel cage rotor /Aluminium die cast
V'Ring on both endshields
Stainless steel nameplate AISI 316
Continuous duty - S1
Ambient temperature: 40°C , 1000 m.a.s.l.
Metric thread cable entries in terminal box
Suitable for Inverter Duty applications*
Paint color: RAL 5007
*For additional details about Inverter operation, please contact our technical support.
*Special Insulation for voltage above 575V
Optional Features
Single voltage (other voltages)
Degree of Protection: IP56, IP65 or IP66
Other mounting configurations
Ventilation Motor, TEAO
Forced Ventilation, TEBC
Thermal protection:M
Thermistors
Thermostats
RTD-PT 100
Space heaters
Class "H" insulation
Mounting information
The foot mounting system offers great flexibility and it is quite simple allowing change on the mounting configuration without requiring any machining or modification on the motor feet.
Motor terminal box can also be rotated at 90 degrees allowing motor leads to be connected on any motor side.
|
|

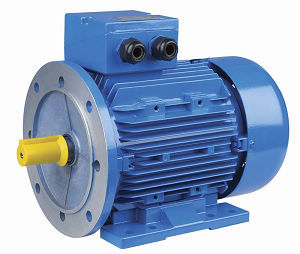

The three-phase motors 3MA series, closed, externally fan cooled, manufactured according to the main international standards and particularly to the IEC 34 and 72 rules , are available in the sizes from 63 up to 132 , with pole number 2, 4,6 and 8 and with output power from 0,12 kW up to 11 kW.
They are featured by aluminium die-cast frame with removable feet, by the IP 55 protection level, by the F class insulation and by shielded type for life lubricated bearings.
|
|
Type Code: AEAL / AEAU
Low Voltage Aluminum Frame Motors
Multi Mounting
Output 0.12 ~ 7.5 KW
Pole (Speed) 2 ~ 8
Voltage 220 ~ 575V
Frequency (Hz) 50, 60
Frame Size 63 ~ 132M
Protection Enclosure IP 55
Design Standards: BS, AS, BSEN 60034
Environment: non-hazardous
Stator insulation: Class F Insulation, 1.0 SF.
|
|
|
|
|
|
Our range of products in these areas of competence consists of liquid-cooled three-phase induction engines/low voltage range from 37 kW to 2,500 kW, available with any standard number of poles, construction types and protection up to IP67. Our totally enclosed cooling system has proven itself a thousand times even under the most demanding circumstances and is continually under further development.
We offer standard solutions for industry as well as special-purpose design that more than deserves the title "designed by the customer". The compact design of our products saves space and weight. They are low in noise and resistant to outside forces. Hence, expensive inlet and outlet air systems are unnecessary. We also consult with our customers in solving problems concerning conventional air-cooling systems in order to reduce overall system costs.
Low voltage three-phase asynchronous motors with liquid cooling are mostly used for tunnelboring or mining applications as well as in the extruder branch. In a power range between 37 kW and 2.500 kW, ELIN EBG Motoren GmbH offers machines in all common pole numbers, designs and protection stages up to IP67.
|
|
Slip ring motors S..R 132 to 315, duty S1, continuous operation S..H 132 to 315, duty S3, intermittent duty
Output range 2.2 kW to 315 kW
Speeds 3,000; 1,500; 1,000; 750; 600; 500; 375 rpm
Features Designed to DIN EN 60034 (IEC 72), mounting dimensions and assignment of output ratings to DIN 42679 (S..R) and DIN 42681 (S..H), robust, low-vibration grey-cast iron design, degree of protection IP 54 / IP 55, higher degrees available on request, class F insulation, class H available as an option, energy-efficient and environment-friendly, various modifications possible
|
|
YH Series (IP44) High Slip Three-Phase Induction Motors
YH series (IP44) motors are derived from the Y series (IP44). Not only having the advantages of Y series motors but also designed with high slip performance, the motors have high stall torque, small stall current and shock-resistance in loading.
|
|
As a result of their modular design, the 1R.5 slipring rotor motors (US: wound-rotor motors) can be produced with various cooling systems. This means that the motors can be flexibly adapted to the customers's application.
The enclosed slipring compartment – located inside the NDE bearings – guarantees a high degree of protection for the complete motor, i.e. for the motor and slipring compartment.
Brief overview
Motor type: Slipring rotor
Water-cooled motors: 1RU5 type series
Air-cooled motors: 1RR5 type series
Shaft heights: 400, 450, 500, 560, 630, 710, 800, 900 mm
Power range: 0.3 to 8 MW
Rated voltages: 3.3 - 11 kV
Degree of protection: IP55
Cooling type: IC 611, IC 81 W, IC 01
Type of construction: IM B3 (IM 1001)
Bearings: Roller bearings (up to SH 710), sleeve bearings (from SH 800)
Regulations/Standards: IEC, EN
|
|
As a specialist for customer-designed solutions we are able to achieve optimised customer-specific solutions at an extremely competitive price for turbo, spiral lobe-type, piston and rotary-piston compressors. They can be used for induction engines with squirrel-cage rotors or slip-ring rotors within a voltage range between 380 V and 13.8 kV (20 kV) with up to 25 MW output and all standard cooling types.
The extraordinary strength of our products lies in their reliability, efficiency and optimal start-up performance. In addition to their longevity and high availability, our extremely low-maintenance products offer the customer the benefits of energy-saving operation and easy start-up time.
|
|

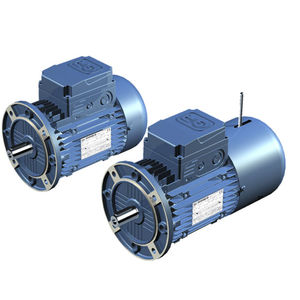

Series: B... 63 to 355
Output range: 0.12 kW to 500 kW, higher output ratings available on request
Speeds: 3,000; 1,500; 1,000; 750 rpm, pole-changeable versions available on request
Brake types: Lenze BFK458, KEB .08.210, Mayr 800.410.3, Stromag BZFM
Features: Energy-efficient and environment-friendly, designed to DIN EN 60034 (IEC 72), mounting dimensions and assignment of output ratings to DIN 42673, 42677 or progressive, robust low-vibration grey-cast iron design, degree of protection IP 55, higher degrees up to IP 65 on request, class F insulation with thermal reserve, class H available as an option, terminal box optionally top-mounted, RHS or LHS up to frame size 315, various modifications possible
|
|
Three-phase AC motors
Standard three-phase AC motors; 0.25 to 22.0 kW 3 x 230/400 V; enclosure IP 54; mountings B3, B5 or B14; these motors are optimised for operation with a frequency inverter
Detailed information
Three-phase AC motors with motec
Standard three-phase AC motors; 0.25 to 7.5 kW 3 x 230/400 V; enclosure IP 54; mountings B3, B5 or B14; the 8200 motec inverter is integrated
Detailed information
Three-phase AC motors with starttec
Standard three-phase AC motors; 0.25 to 4.0 kW 3 x 230/400 V; enclosure IP 54; mountings B3, B5 or B14; the starttec motor starter is integrated
|
|
FRAME SIZE:
56 to 160 - aluminium deign
180 to 315 - cast iron design
OUTPUT:
0.09 to 200 kW
POLARITY:
single - 2, 4, 6, 8 poles (series AM)
pole-changing - 4/2, 8/4, 4/6, 6/8 poles (series AM and AMV for fan drives)
RATED FREQUENCY:
50 - 60 Hz
MOUNTING:
IM B3, IM B5, IM B35, IM B14, IM B34
DEGREE OF PROTECTION:
IP55 or higher
MAIN FEATURES:
motors comply with IEC requirements
TEFC construction
temperature rise to class B
standard rating comply with IE1 code; efficiency values according to IEC 60034-30;2008; efficiency testing method IEC 60034-2-1;2007
IE2 efficiency code as standard from 180 frame
progressive motors on request
63 bearings from 160 frame
regreasing facility as standard from 200 frame
OPTIONS:
cURus certification
CSA certification
from frame size 90 operate on static frequency converters
encoder
forced ventilation
mechanical and electrical design on specific demand
|
|

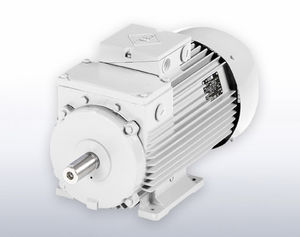

G2.. 132 bis 355
Output range 4.3 kVA bis 500 kVA
Speeds 1,500; 1,000; 750; 600; 500 rpm, lower speeds available on request
Features Designed to DIN EN 60034 (IEC 72), mounting dimensions and output assignment to DIN 42673, 42677 or progressive, robust, low-vibration grey-cast iron design, degree of protection IP 55, higher degrees up to IP 65 available on request, class F insulation, class H available as an option, terminal box optionally top-mounted, RHS, or LHS, various modifications possible
|
|
WATT EUSAS motors are top quality three-phase AC industrial models from Watt Drive’s customer-oriented modular WATT MAS 2000 motor system.
EUSAS stands for EUROPA - USA - ASIEN and means that the wide voltage range and simple voltage selector in the terminal box enable the motor to be operated with virtually any supply voltage and frequency worldwide.
|
|
Construction
Mechanical protection: IP55
Insulation: Class F
Temperature rise: 80 K
Frames: are in cast iron, (except frames 180 - 225 which are in steel)
Terminal boxes: are in cast iron
Endshields/flanges: are in cast iron
Fans:
- Up to frame size 315 are in polypropylene, (except frames 180 - 225 which are in steel)
- On frames 355 and above, are in polypropylene or aluminium alloy.
Fan cover: in cast iron or pressed steel, capable to withstand impact of 7 Joule.
Finish: Industrial paint system, standard color RAL 5010.
Motor series BFGC (IIC): kW RPM
0.37 up to 450 kW 3000 RPM
0.25 up to 500 kW 1500 RPM
0.18 up to 450 kW 1000 RPM
0.12 up to 400 kW 750 RPM
Motor series BFG (IIB): kW RPM
250 up to 710 kW 3000 RPM
250 up to 900 kW 1500 RPM
200 up to 710 kW 1000 RPM
160 up to 630 kW 750 RPM
|
|
Three-phase short circuit asynchronous motor, frame-cooled.
- high efficiency reserve
- high switching frequency
- Solid construction and high reliability
- quiet and maintenance-free
- different mounting types to choose
- suitable for operation of a frequency converter
|
|
Standard type of motors range from 1/8HP to 20HP to met differing requirements, suited to individual needs.
Economical and general purpose-driproof type (EFOUP).
Rugged under most severe operating conditions-totally enclosed fan, cooled type (TFO).
Compactly designed equipment-flange mounted, totally enclosed, fan-cooled type (VTFO).
Internationally interchange ability/ Original "Hitachi WR grease".
High efficiency fan/ Low noise/ Low vibration/ Safety-assured design.
|
|
Y Series (IP23) Three-Phase Induction Motor
General:
The Y series (IP23) motor is a three-phase protection cage induction motor for common usage.
Features:
* Radial flow draft type, good heat dissipation performance, low temperature rise and a long life cycle
* High quality cast iron base and end-shell ensure better cooling performance, good dependence and a long life cycle
* Large stall torque
* High efficiency
* Small noise, slight vibration, reliable operation and easy maintenance
* Fine construction and appearance
* Could be manufactured to customer’s special needs under different voltages, double voltages, special frequency, special extension, biaxial extension, humid tropics and dry tropics etc
Applications:
The Y series (IP23) can be widely used in paper-making equipment, compressors, fans and pumps. It is especially suitable for equipment working in in-door environments like refrigerators.
|
|
Standard three-phase motors with squirrel cage rotor
Design industrial motor with aluminium housing
Main applications water and vacuum pumps, fans, compressors, drive systems, transmissions
Special applications machine tools, garden equipment, vehicles, elevator doors, food machines, extruders
Performance range 0,06 - 37 kW
Size 56 - 200
Standard three-phase motors with squirrel cage rotor
Design industrial motor with cast iron housing
Main applications chemical industry, ship and marine engineering, use under difficult environmental and general conditions
Special applications agricultural and construction machinery, hydraulic systems, mixing machines, stone processing equipment, separators
Performance range 37 - 315 kW
Size 225 - 355
|
|
- Considerably more power from smaller construction volume
- Optimised heat elimination by means of ventilation ducts
- Minimum lossed for maximum efficiency
- Energy saving over standard motors
- IP 54 / Insulation Class F
- Compatible with all Groschopp gearboxes
- Can be combined in principle with gearbox of other manufacturers
- Options available, e. g. brakes, sensor systems.
|
|
Properties of the three-phase AC motors
The long, slim three-phase AC motors made of extruded aluminium profile are optimally attuned to the CDA3000 inverter and the CDD3000 servocontroller. They usually construct a size smaller than standard IEC motors (with the same output in mode S1) and are dynamic as asynchronous servomotors.
What customizations are possible for three-phase AC motors?
* Protection up to IP66
* Special voltage and special rotation speed
* Specific connection technique
* Different design
* Cast motors
* Special shafts
* Flange adaption
|
|
Type Code: AECD TOP
Standard 3-phase induction motors
TEAAC, Squirrel Cage
Output 350~1000HP (260 ~750 KW)
Pole (Speed) 2~ 10
Voltage 380V, 415V, 460V, 660V
Frequency (Hz) 50
Frame Size 400A~560C
Protection Enclosure IP 44
Type Code: AEEA / AEVA /AEEACF / AEEAFB / AEEAHD TOP$Standard 3-phase Induction Motors
TEFC T-Frame Design B or C
Output 3/4 ~800HP
Pole (Speed) 2 ~ 12
Voltage 230/460V, 460V, 575V
Frequency (Hz) 60
Frame Size 143T~449T
~ 6810
Protection Enclosure IP 44
|
|
Voltage: 230/400 V
Moreover we supply Three Phase Motors for all voltages up to 575 V.
Frequency: 50 or 60 Hz
Power: 60 - 1100 Watt
Number of Poles 2-pole, 4-pole
Other numbers and pole-changing version on request
Type of protection: IP 54
|
|
|
|
|
|
• Totally Enclosed Fan Cooled
• Energy, and Inverter Duty Types FUT, UTE, UTI
• 1.25 Service Factor
• 1/4 through 30 horsepower
3600, 1800, 1200 rpm
200, 208-230/460 & 575 volt
• Removable Feet on 182 frame and up
• ALLGUARD® Motor Quality System
U.S. Motor’s Unimount 125® is a totally enclosed fan cooled motor with a 1.25 service factor. These TEFC motors meet standard NEMA requirements including 40°C ambient conditions, class F insulation (with class B temperature rise), NEMA Design B and usable up to 3,300 feet above sea level. The Unimount has an aluminum alloy extruded frame that improves heat dissipation for cool operation and long life (180 frame and larger). Die cast aluminum brackets have steel or cast iron bearing cavity inserts to ensure reliable performance under severe load applications. The 56 and 140 frames are rolled steel.
Unimount motors offer the widest range of electrical and mechanical features of any motor on the market today. The diagonally split conduit box is oversized compared to NEMA standards. Other mechanical
features include a rugged motor base which is removable on 180 frame and larger to allow conversion to a footless configuration.
|
|
Three-phase motor up to 550 W
Heidolph three-phase motors are asynchronous squirrel cage motors with delta or star connection. They are characterised by a high start torque which is considerable higher than the nominal torque. The three-phase motors run smoothly and quietly, are robust, maintenance-free and feature a long life-span.
|
|
|
|
