series RS 100 is the perfect machine to realize in a minimum of time of the cuts of tubes to the serrated roller.
copper, stainless, steel, Plastique, this machine is addressed as well to the pipe fitters as with the industrial or hotel pomblier.
any modification of hydraulic, pneumatic, gas system can be considered with the machines type RS of 12 mm has 32 for series RS 32 and of 40 mm 110 mm for the RS100 have
|
|
Universal Pipe Cutter
SCORP 170(e)
SCORP 220 Plus
SCORP 360
The ultimate and fast solution for cutting of cast iron, stainless steel, steel, copper, aluminum and plastic pipes.
Ideal for pipe fitters to use on construction sites and in industrial pipe installations.
Your advantage:
• Powerful and lightweight machine
• Secure opertion by means of overload protection and saw blade guard
• Burr-free and square cut
• Corrosion and heat resistant
• The SCORP 170e now incorporates a speed regulator
Your benefits:
• Wide range of applications and dimensions
• No rework necessary
• Suitable for clamping joints
• Reduction of tool costs
• Lightweight, single person operation
|
|
Pipe/Tube Cutting & Preparation
* Wide selection from a single source.
* Durable designs.
* Exclusive features for maximum productivity.
|
|
Tube cutter, 4485M
For copper, brass, aluminium and thin-walled steel tubes. Lateral guide.
Two guide rollers, one cutting wheel. Spare cutting wheel safely housed in handle. Built-in retractable reamer. Grooved rollers for close-to-flare cuts.
|
|
Diameters from152.4 mm to 273 mm
Thickness : from 25 mm to 40 mm
Weight : 80 Kg
Electric motor, pneumatic motor,Hydrau
Tools :
Cut
External bevel
Options :
Outils spéciaux
Suivi de profil
Groupe hydraulique
|
|
For diameter ranging from 5 to 121 mm
TECHNICAL DATA :
*Basic jaws : diameter 19 to 121 mm
*Add. jaws: diameter 5 to 107 mm
*Thickness : 0.5 to 15 mm
*Weight : 56 Kg
*4 concentric stainless steel clamping jaws very close to the blade.
*Different motors available : 220V, 110V, pneumatic
- FD29: 90 to 270 rpm: up to 7 mm in thickness
- FD25: 30 to 90 rpm: up to 15 mm in thickness
- MOPD: 10 to 120 rpm: up to 15 mm in thickness
Easy upgrade to orbital welding
|
|
A CUT ABOVE THE REST

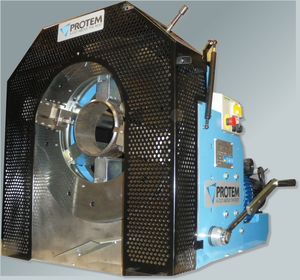

Tube cutting and beveling machine type TF
The TF series has been designed to
cut and bevel tubes from Æ5 mm up
to Æ168 mm OD in one
simultaneous operation with the
same clamping jaws, and no specific
setting within its range of machining.
The tool holder plate features a
50 mm stroke carriage for cutting
and a second one for beveling.
Ideal for cutting and beveling prior to
welding (manual or automatic)
carbon steel, stainless, alloys, etc…
Easy to use, quality of machining,
reduced dimensions are also some
of the key features of this tool.
|
|
LEFON Orbital Pipe/ Tube Cutting Machine(orbital saw),is ideal for cutting Stainless Steel pipe. Be able to do cutting and beveling at same time. Four models available, R4,R6,R8 and R12.
R4, working range: pipe OD:1/2"-4", pipe wall thickness: 1 - 7mm,
MSRP US$3999
R6, working range: pipe OD 3"-6", pipe wall thickness: 2 -10mm,
MSRP US$4999
R8, working range: pipe OD 6"-8", pipe wall thickness: 2 -10mm,
MSRP US$6499
R12, working range: pipe OD 8"-12", pipe wall thickness: 2 - 10mm
MSRP US$7899
Applicable to the following material:
* Alloy Steel Pipe (e.g. stainless steel)
* Carbon Steel Pipe
* Non-ferrous Metal Pipe
* Plastic Pipe
* Casting Iron Pipe
* Highly reliable, long working life
Key advantage of this orbital cutting machine:
* Burr-free
* Multi-point clamping to eliminate pipe deformation
* Easy to operate
* Precise square cutting
* Cutting and Beveling simultaneously
* Highly reliable, long working life
|
|
Pipe cold cutting and/or beveling machine GBC range 1"-96" (30mm - 2300 mm) O.D., available with pneumatic or hydraulic motor.
Two different product lines available, both split frame ring body design:
GBC MCA range 1"-36" (30mm - 900mm)
Aluminium body, lightweight, low profile, split frame, suitable for all extreme on- site application when high portability and easy handling is a factor
GBC SUPERCUTTER range 6”-60” (160mm - 2300mm)
Steel body, heavy duty, split frame, suitable for big pipe sizes and heavy wall also on exotic materials
All units can be equipped with two copier toolboxes for following the pipe od profile, thus minimizing the bevel offset due to out of round of pipe.
Pipe counter bore module also applicable.
|
|
|
|
|
|
LEFON Heavy Duty Pipe Cutting and Beveling Machine is portable, designed to use in both workshop and on-site. It is heavy duty, specially intended for heavy wall pipes with high wall-thickness in heavy duty applications. It machines pipe by cold cutting principle that eliminates any heat affected zone. The machine split frame is made from aluminum which is extremely low weight for easy handling and lifting and are versatile in application and can perform many operations. The machine provides a fast metal removal rate and high working speed which presents the economical manufacturing solution.
Applications:
• Cutting off pipes
• Simultaneous cutting and beveling
• Weld Preparation on the pipe end
• Inside-turning of pipe ends
• Flange facing, or Flange Repairing on-site
Features:
• Aluminum body, extremely low weight, can be used in both on-site and workshop
• Easy to use, one operator can mount and dismount the machine on pipe within minutes
• Excellent stability and enhanced gear heat treatment ensure expanded machine life
• Heavy Duty, cutting and beveling simultaneously
• Suitable for cut all kind of materials, from cast iron, high strength alloy, to stainless steel
• Base plate can be easily installed and uninstalled, for workshop and field application
• Five models available, covering OD from 2” to 30” (780mm), wall thickness can reach up to 6”(150mm)
• Three power sources available for different application: Hydraulic Station, Pneumatic, and Electric
o Easy to move and powerful Hydraulic station
o High torque pneumatic motor is from world’s #1 nutrunner manufacturer, Cleco of Cooper Power Tool
o Powerful and reliable Electric motor supplied by Metabo
|
|
CT 7-61 (fiche tech GB)
Diameters from 7 to 61 mm
Thickness from .... to ....mm
Weight :
Tightening clamp
Electric motor
Standard tools
|
|
STRONG POINTS
Low cost: rationalizing and simplifying the TOP technological solution without skimping on quality, a "concentrate" of Sinico's vast experience
Optimized automatic running: patented AVTC® (constant chip volume removal) system to provide a constant mean volume of chip removal under all operating conditions.
Machining precision: all operations are carried out in one chucking and the rotary transfer features Hirth gears
Quick tooling: the high level of automation means it takes much less time to adapt the machine when the product being made is changed
Short delivery times: an optimized production process and standardized components have enabled us to drastically reduce the time it takes to set up the machine.
|
|
GBC pipe cutting machines orbital bench type are the fast & easy solution for cut off any pipe material (Fe, alloys, stainless steel).
Driven by a powerful electric motor, with variable rpm, easy handle all tube diameters & wall thickness thanks to its special shaped vice locking pads.
GBC orbital pipe cutters can perform clean square cut, burr free, ready for welding.
Available automatic electric rotation on bigger sizes.
- GBC PIPE 2 range 6-60mm (1/4"-2")
- GBC PIPE 4 range 13-120mm (1/2"-4 1/2")
- GBC PIPE 8 range 80-230mm (3"-8")
- GBC PIPE 12 range 210-326mm (8"-12")
|
|
|
|
|
|
Pipe Cutting and Beveling Machines with automatic feed module AVM.
A new highlight in the GF-Series of Orbitalum Tools!
The new GF machine for cutting and beveling of high, low and unalloyed metal pipes has demonstrated convincing operational results with large pipe diameters and safe and ergonomic serviceability.
A strong machine for demanding applications!
Advantages:
• For cutting pipes with ODs between 283 - 508 mm (11.14 - 20 inch) and pipe wall thicknesses of up to 15 mm (0.59 inch)
• Right-angled cutting without misalignment
• Burr-free and cold operating process
• Unique automatic process by the AVM feed module thus ensuring constant cutting
• Including a height-adjustable and robust lifting bench with a container for swarf collection
• The ergonomically designed handle enables a safer operating position; and cutting elbows is made possible without any further adjustments
• Multifunctional wrench for all setups on the machine
• Sturdy design with powerful drive
• High rotational moment for optimal cutting and beveling processes
• Optimal speed range of 50 - 163 rpm, ideal for cutting high-performance materials (Hastelloy, P91, etc.)
• Plug connection with quick-action coupling: for easy and comfortable replacement of the power cable.
• Optimized saw blade guard protects the user against flying chips
Your benefits:
• Reduced tooling and production costs
• An even higher operating life of the tools is guaranteed by the continual cooling system (available as special accessory)
• High operating efficiency
|
|
|
|
|
|
Having set the benchmark for pipe cutting and beveling machines for over 40 years, our new range of machines takes us even further forward. The new GF 4, GF 4 AVM, GF 4 MVM are now available!
Your benefits:
- Square, burr-free and deformation-free pipe end
- cold machining process, cutting in seconds
- Simultaneous or seperate cutting and beveling
- Cost-effective, increasing productivity
- Even longer tool life
What´s new?
- Optional feed module AVM or MVM for an automated or manual cutting process
- Locking mechanism prevents unauthorized usage and theft
- Weight reduction for ease of movement
- A new ergonomically-designed motor handle for a safer and more comfortable operating position, which also enables easier cutting of elbows
- Integrated laser pointer to determine the cut-off point
- 2 position aluminum clamping jaws to reduce chatter and enable smaller length of pipe to be machined
- 1 multifunctional tool for all adjustments on the machine
- Extended speed range (65-125 rpm), ideal for the cutting of high-perfomance materials (Haselloy, P91, etc.)
- Swivel cable with a quick-disconnect coupler for easy and quick replacement of power cables
- The new saw blade guard protects against flying chips and comes with a measuring port
|
|
|
Our original product and now an industry standard, the D.L. Ricci Corp. Clamshells are the best pipe cutting and pipe beveling machines on the market today. From the mini to the HD our severing and beveling clamshells have patented bearing technology and are easy to setup and operate.
|
|
|
The Marken 500 series hose cutting machines are the most widely used machines in the world for automatically measuring and cutting hose, wire and cable. Using a patented process, these machines are the fastest and most accurate you can get. The fully automatic 550S is fast and easy to operate. Simply insert the hose, set your length and quantity, and press start. The 550S uses a wet-cut system to minimize smoke, and contamination. Accuracy is held within .1 to .5 percent of total length. Options include Ink Jet hose marking, Insertion marks printed on the those, and kit cutting software to manage your customer's kits and part numbers. The Model 550 cuts from 1/4 inch hose up to 1.5 inch 4 wire, and 1.25 inch 6 wire spiral hose. Variant's of this machine cut wire, cable, braided hose, spiral hose, hose guard, and a variety of other materials. If you cut hose all day, there is no better machine in the world to do the job.
|
|
|
The Marken 500 series hose cutting machines are the most widely used machines in the world for automatically measuring and cutting hose, wire and cable. Using a patented process, these machines are the fastest and most accurate you can get. The fully automatic 500S is fast and easy to operate. Simply insert the hose, set your length and quantity, and press start. The 500S uses a wet-cut system to minimize smoke, and contamination. Accuracy is held within .1 to .3 percent of total length. Options include Ink Jet hose marking, Insertion marks printed on the those, a special PTFE weld options which eliminates flared ends of PTFE hose, and kit cutting software to manage your customer's kits and part numbers. Variant's of this machine cut wire, cable, braided hose, spiral hose, hose guard, and a variety of other materials. If you cut hose all day, there is no better machine in the world to do the job.
|
|
|
The Marken 450 series hose cutting machines are the best. These machines are used around the world to cut hose, wire, and cable automatically, accurately, and quickly. The fully automatic 450A is fast and easy to operate. Simply insert the hose, set your length and quantity, and press start. The 450A uses a guillotine cut system to make absolutely square, clean cuts. Accuracy is held within .1 to .3 percent of total length. Options include kit cutting software to manage your customer's kits and part numbers. Variant's of this machine cut wire, cable, hose, and a variety of other materials. If you cut hose all day, there is no better machine in the world to do the job.
|
|
CAPACITY ON 4 SPIRALS HOSE 1"
OD HOSE CAPACITY 10-41 mm
PLC CUTTING TOLERANCE ± 1 mm
MAX. CUT LENGTH 9999 mm
BELT SPEED 15 - 30 - 40 M/MIN.
BLADE Ø 520 mm
REVOLUTIONS/MINUTE 2800
MAXIMUM WEIGHT REEL 150 KG
STANDARD VOLTAGE 380V 50Hz 3PH
BLADE MOTOR POWER 5.5 W
TRANSMISSION BELT MOTOR POWER 0.35 KW
Ø CONNECTION SUCTION HOSE 100 mm
PNEUMATIC INPUT MAX 6 BAR
WEIGHT CUTTING MACHINE 350 KG
UNROLLER WEIGHT 180 KG
WEIGHT CONVERYER BELT 110 KG
DIMENSIONS CUTTING MACHINE L x D x H 1150 x 850 x 1345 mm
DIMENSIONS UNROLLER 3913 x 1050 x 1362 mm
DIMENSIONS CONVEYER BELT 2155 x 500 x 1030 mm
|
|
This model uses a completely new principle and is particularly suitable to cutting flexible hoses,
feeding electrical cables and plastic covered hoses…..
One by one or in small batches.
Easily transportable, the only power supply required is a simple 220 Volt single phase 10 Amp.
socket. This model is ideal for on-site work.
Technical specifications:
à Maximum cutting diameter : 50 mm.
à Bench-top model.
à Manual control.
à Single lever to bend and cut hoses.
à 2.1 kW - 230V - 50Hz single phase electric motor
à During the machine work, the control is held down by the operator.
à Bevelled cutting blade: Ø 200 x 1.6 x 30 mm.
à Dimensions: H 530 x W 430 x L 550 mm.
à Weight: 17 Kg.
|
|
Model FP175
Crimping range (mm) 1 10 — 320
Crimping range (inches) 1 0.39 — 12.60
Crimping force (kN) 8300
Crimping force (tonnage) 830
Crimpings / hour 2 1140
Max. hose size (inches) 10
Die set 3 P329/FP1609/FP170
Maximum opening (mm) 4 155
Master die (D / L mm) 320 / 220
Master die (D / L inches) 12.60 / 8.66
Control IS / VS
Motor (kW) 7.5
Motor (HP) 10.0
QC tool 14 —
Foot pedal 15 X
Control unit: integrated —
Control unit: C1 O
Control unit: C2 X
Back stop device: mechanic —
Back stop device: electric 15 —
Mirror —
Pressure control P1 16 O
Pressure control P2 16 —
AGS auto greasing 16 O
Remotic control unit O
Counter L1, L2, L3 O
ASCII signal 17 O
VS PLUS control 17 O
Length (mm) 1200 / 640
Width (mm) 936 / 1156
Height (mm) 2080 / 1185
Length (inches) 47.3 / 25.2
Width (inches) 36.9 / 45.5
Height (inches) 81.9 / 46.7
Weight (kg) 4400 / 310
Weight (lbs) 9700 / 684
|
|
MAIN APPLICATIONS
Basic hose cutting machine, benchtop structure.
It is dedicated to the small-medium sizes of the most common hoses used in hydraulic, for small repair shops,
distribution shops.
KEY PERFORMANCE
Simple - Sturdy - Large blade, diameter 300 mm (12") - Safety cover
|
|
| ... products without technical information |
| |
|
|
|
|
The LT120 automatic laser tube cutting system is the ideal solution for exploiting the benefits of laser technology within a contained cost.
Starting from a tube bundle, all the work processes are done automatically within the system: selection of individual bars, measurement, feeding, cutting, conveying and unloading of the finished part.
The LT120 automatic laser tube cutting system is perfect for light metal and thin walled tubes up to 120mm diameter generally used in the most important industrial sectors (furniture production, automotive, assembly plant and heating). The machine can also be efficiently used for simple operations like straight cuts.
Features of LT120 automatic laser tube cutting system:
* low running costs
* proven system reliability
* easy and fast production changeovers
* fully automatic working cycle
* standard CAD-CAM software control packages specifically designed by ADIGE for single and assembled tube programming.
ADIGE also develops customized solutions to meet customer specific requirements.
|
|
|
|
|
|
FL 600 3D
The FL 600 3D system was designed for machining tubes and structural profiles with a maximum external diameter of 610 mm and a maximum length of 24000 mm.
The FL600 3D was conceived to work on tubes with round, square and rectangular sections, which are loaded automatically with a tube loading system from a bundle, while the open section profiles are loaded with a chain loading system. Work range is 90 to 610 mm diameter, for tube lengths to 14000 mm and more. The "heart" of the plant is a tri-dimensional system called "Sphera" which allows any point in a spherical space to be worked: the movement is along 5 interpolated axes, with recirculating ball screws and linear motors. The movements of the workpiece along the work axis are guaranteed by four self-centring mandrels that enable different diameters and sections to be machined, with no change tool change being required.
Variations in workpiece straightness during work are compensated by an integrated floating system, which ensures machining precision even on particularly irregular tubes, preventing dangerous mechanical stresses on the mandrels.
|
|
|
|
|
|
FL 250 3D
Tube Tech Machinery has complemented its range of laser systems with the launch of the new FL 250 3D which allows the tri-dimensional machining of tubes and profiles, with a diameter range of 20 to 254 mm.
The workpiece is placed between the four sliding self-centring jaws of the mobile mandrel. Owing to their design, the jaws do not require claw replacement. The fixed mandrel itself, which consists of a solid structure where four self-centring idling rollers are accommodated, does not require tool-changing. The FL 250 3D loading cell comprises a pick-up system which collects the workpiece from the bundle, while open section profiles are loaded with a chain loading system: three independent manipulators allow the mandrels to be loaded with the tubes from the bundle and the profiles from the chain system.
The "smart" unloading enhances the productivity of our system while substantially reducing downtime caused by the stowing of workpieces. Long workpieces are handled by controlled axes for containing and supporting any tube or profile during machining.
|
|
Speedfly 5
Revolutionary plant for the in-line laser cutting of tubes. It can be used for any profile with diameters of up to 220 mm and more. It overcomes the great drawbacks of the traditional cutting systems still used in today's production of welded tubes.
High cutting quality, absence of burrs and cooling fluids, noiseless operation, and no need for machine downtime for frequent tool changes are the distinctive features of this innovative plant.
|
|
|
|
|
|
TL 312 3D SPEED
The TL 312 3D Speed plant was designed to obtain the best performances in the laser cutting of large-sized sheets with dimensions of 12000 x 3200 mm and more.
The TL 312 Speed 3D is equipped with an automatic pallet change system and with a dual portal where the tri-dimensional cutting head and the laser source are positioned. The first portal, which is very lightweight, carries the cutting head and can therefore move rapidly, performing all the required machinings with high acceleration. The second portal follows the first one like a rubber band, as it is connected to it by pressurised rubber bellows; it carries the laser source enabling all the work area to be reached and its machining tasks to be performed with consistency, precision and rapidity.
The effectiveness of Tube Tech Machinery's solution is proved by the translation speed of 100 m/min that can be reached on axis X, over three times greater than that of traditional laser systems for large-sized sheets, which carry head and source on a single carriage. The use of linear motors ensures excellent dynamic behaviour and high performance.
The system is fully automated and governed by a CNC facility for full independent operation, while the user-friendly CAD-CAM software complements this extraordinary equipment, which is truly unique in the global scene.
|
|
Our TS 4.20 2D system cuts and welds metal sheets by means of a single, special cutting and welding head. The system can process metal sheets with dimensions from 1000 x 2000mm to 2050 x 4100mm and thicknesses from 1 mm to 8 mm, with laser power of 5000W or 6000W. After the process, the metal sheets can measure 4000 x 20000 mm and more. The machine is equipped with an automatic loading system, which allows a high degree of automation and prolonged continuous operation.
Like all TTM machines, the TS 4.20 2d was designed using FEM (Finite Elements Method) structural computation software that enables the dimensional features of the structures to be defined and the strain and deformation states to be optimised in relation to the stresses applied. With this new solution developed to meet customers' specific needs, TTM once again presents itself as a partner-supplier of ideas that translate into innovative, reliable and technologically advanced machines.
|
|
|
|
see the results for the following category :
