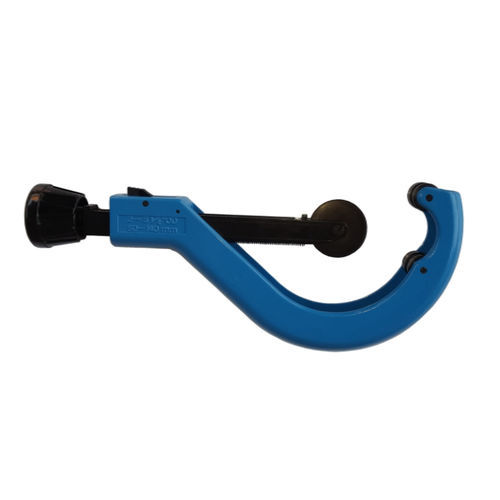

Plastic pipe cutter C series

copperaluminumorbital

Rotary pipe cutter is a compact tool for fast, clean rotary cutting of plastic, copper and aluminium pipes, producing neat end faces suitable for welding preparation.

Key features

• Suitable materials: plastic, copper and aluminium pipes.
• Cutting method: rotary cutting — convenient and fast.
• Result: neat, clean pipe end surfaces ready for welding preparation.
• Typical applications: semiconductor, chemical, gas, water supply and drainage industries.
• Blades: fitted according to material thickness; blades processed for extended service life.
• T4 variant: can be equipped with straight blades for cutting pipes over 19.4 mm.

Available models / working ranges

• C63 — Working range: Ø6–64 mm; Dimensions (mm): 222 × 282 × 95; Weight: 0.6 KG.
• C75 — Working range: Ø6–75 mm; Dimensions (mm): 247 × 330 × 105; Weight: 0.68 KG.
• C140 — Working range: Ø50–140 mm; Dimensions (mm): 351 × 483 × 155; Weight: 1.38 KG.
• C160 — Working range: Ø100–160 mm; Dimensions (mm): 372 × 465 × 200; Weight: 1.65 KG.

Technical characteristics / specifications

• Cutting method: rotary cutting (rotational blade action).
• Materials processed: plastic, copper, aluminium.
• Blade selection: blades chosen according to material thickness; blades treated for long life.
• Applications: pipe end preparation for welding and use across semiconductor, chemical, gas, water supply and drainage sectors.
