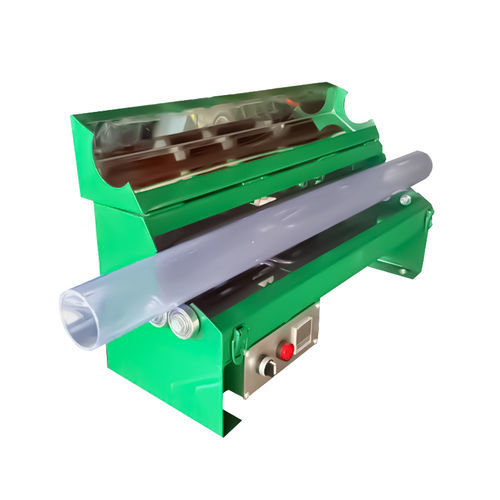

Heating sleeve for high-temperature applications EPH series

for general purposesindustrialfor the plastics industry

The PVC Pipe Heater is a professional heating tool for PVC pipe processing. It softens PVC by uniform, controllable heating to create stable conditions for bending, cutting and joining operations.

Models and main specifications

• EPH75
  • Heating method: stainless steel heating tube
  • Voltage: 240 V 50 Hz 7 A
  • Heating temperature range: 0–300 °C
  • Normal heating temperature: 150 °C
  • Temperature control: thermostat
  • Heating power: 1500 W
  • Heating time: according to pipe wall thickness
  • Heater/casing material: 2.0 mm steel sheet
  • Outline size: 780 × 320 × 320 mm
  • Weight: 20 kg
  • Heating range (pipe diameter): 1/2"–2 1/2" (21.3–75.3 mm)
• EPH110
  • Heating method: stainless steel heating tube
  • Voltage: 240 V 50 Hz 10 A
  • Heating temperature range: 0–300 °C
  • Normal heating temperature: 150 °C
  • Temperature control: thermostat
  • Heating power: 2000 W
  • Heating time: according to pipe wall thickness
  • Heater/casing material: 2.0 mm steel sheet
  • Outline size: 140 × 320 × 320 mm
  • Weight: 25 kg
  • Heating range (pipe diameter): 2 1/2"–4" (75.3–114.3 mm)

Applications and function

• Core function: uniform and controllable softening of PVC for secondary operations.
• Typical applications: pipe bending, cutting and joining operations requiring stable heating conditions.
• Heating is adaptable to pipe wall thickness and diameter via model selection.

Characteristics / Technical specifications

• Series: EPH series (EPH75, EPH110)
• Operating temperature capability: up to 300 °C; typical working temperature ≈ 150 °C
• Heating element: stainless steel heating tube
• Power options: 1500 W (EPH75) and 2000 W (EPH110)
• Supply: 240 V 50 Hz (current indicated per model)
• Designed for PVC pipe processing across the specified diameter ranges
• Construction: 2.0 mm steel-sheet casing
