Portable pipe cutting and beveling machine MMTPC48U

Overview

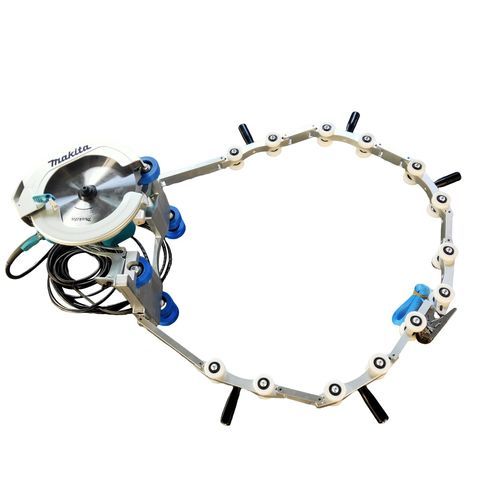

The MMTPC48U is a manual rotary pipe cutting machine designed for on-site cutting of large-diameter plastic pipes. It is a modular system that delivers repeatable, accurate end-preparation on HDPE, PE, PVC and PPR using a fixed rotating cutter with replaceable alloy blades and an adjustable screw feed.

Main components

• Universal ring track assembly
• Circular saw assembly (replaceable alloy blade)
• Tightening / clamping mechanism assembly
• Guide track assembly
• Track wheel assembly

Technical specifications

• Brand: MM-Tech
• Model: MMTPC48U
• Product name: HDPE Pipe Cutting Machine
• Applicable pipe diameter / Cutting range: 500 – 1200 mm
• Cutting depth: user-adjustable within a defined range
• Maximum cutting thickness: 75 mm
• Cutting mode: saw blade cold cutting (manual rotary cutting)
• Processable materials: HDPE / PE, PVC, PPR
• Rated power: 2.4 kW – 3.0 kW
• Power supply / Voltage: 220 V 50/60 Hz
• Drive system: screw feed (safe and reliable)
• Blade: replaceable alloy steel blade
• Product weight: 29 kg
• Cable length: 6 m
• Degree of automation: Manual
• Dimensions: adjustable according to pipe diameter / machine model
• Place of origin: China
• Warranty period: 1 Year
• Factory video inspection: Available
• Mechanical test report: Available
