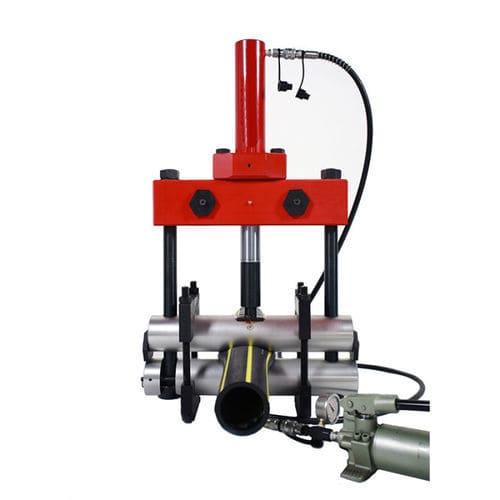

Hydraulic crimping tool ST160

manualhand-operatedfor tubes

A compact manual hydraulic squeezer designed to provide full-bore blocking and controlled closure for PE/PP/PPR pipes during sealing, maintenance and installation operations. The integrated, ultra-light anodized aluminum construction includes built-in protection to prevent pipe damage.

Key features:

• Full-bore blocking: seals flow in PE/PP/PPR pipes without cutting.
• Manual operation: hand-turned screw or pump for controlled closure; no external power required.
• All-in-one design: integrated unit with no loose parts or accessories for on-line readiness.
• Ultra-light body: anodized aluminum construction for easier handling and corrosion resistance.
• Consistent performance: precision screw/cylinder provides smooth, uniform squeeze and release.
• Over-clamp protection: brake pads (brake spacer) stop at preset limits to prevent over-pressurization and pipe damage.
• Quick-fit frame: swing-open bottom bar slips over the pipe for rapid setup.

Applications:

• Water systems
• Gas pipelines
• Building heating systems
• Agricultural irrigation
• Other PE/PP/PPR pipe sealing and maintenance scenarios

Technical specifications:

• Model: ST160
• Blocking / welding range: 63–160 mm
• Compatible materials: PE, PP, PPR
• Dimensions (L × W × H): 790 × 385 × 110 mm
• Weight: 30 kg
• Construction: anodized aluminum body
• Operation: manual screw or pump closure
• Protection: brake spacer / brake pads to prevent over-clamping
• Design: integrated, no loose parts; quick-fit swing-open bottom bar
• Warranty: 2-year quality warranty
