The 3D-Waterjet Cutting System
The waterjet - a tool with which you can master nearly every cutting task %u2013 in 2D- and also in 3D-area.
The new 3D-Waterjet Cutting System JETMax HRX 160L is a universal system for both cutting with pure water and abrasive waterjet cutting.
The advantage of the system is the flexibility of the 6-axis robot, which distinguishes itself with a high course accuracy. The outcome of this combination is an economic 3D-Waterjet Cutting System for a lot of new cutting tasks.
The advantages of water jet cutting
- No thermal influence
- No chemical influence
- High quality and precision of cut
- Cutting of nearly any material %u2013 with one tool
- Ideal utilization of material
- Cutting of composite materials and nonmetals
- No burr formation and deformation
Technical data JETMax HRX 160L:
- Bearing surface: 2.300 x 1.600 mm
- Repeatability: +/- 0,05 mm
- Course accuracy: /- 0,10 mm
- Absolute accuracy with calibration: /- 0,10 mm
- Max. feed rate: 2,5 m/s
- Waterjet Cutting software 2D and 3D
- Hp-valve with abrasive cutting set
- Abrasive dosage system with storage bin and sensor for vacuum
- Abrasive transfer system
- Sensor and display for working pressure
- complete high pressure connecting tubes between cutting table and pump up to 12 m
- High pressure pump
- %u2026
|
|

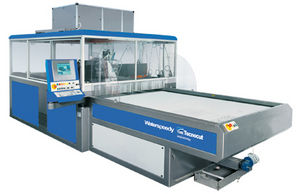

CONSTRUCTION: Cartesian structure with suspended bridge
AXES MOVEMENTS: Brushless motors coupled to precision gears
STROKE // SPEED
X:stroke 1,600 mm // 80 m/min
Y:stroke 1,200 mm // 80 m/min
Z:stroke 700 mm // 60 m/min
A:stroke 275 mm // 30 m/min
C:stroke 380 mm // 40 m/min
DESCRIPTION: The 1612 version has been designed for the machining of small pieces; thanks to the compact design, to the bridge structure and to the digital cn, it guarantees the highest performance in very little space. The mkn version with water jet cutting head allows to cut an extremely wide range of materials.
|
|
|
|
|
|
The Waterjet Cutting System
The waterjet - a tool with which you can master nearly every cutting task!
Our proven and easy-to-use Waterjet Cutting System JETMax is for daily purposes. These machines are easy to operate and are delivered with all options and accessories you need for cutting with water or with abrasives - at a great price! An optimization in price and performance enable a fast repayment also for small and medium sized companies.
The key benefits are that this waterjet cut does NOT cause any thermal stress and does NOT set free any toxic dust and/or vapour. The only tool we are using is pure water or - in abrasive mode - water and garnet sand. That´s it!
Delivery Premium includes:
- Rustproof, welded system structure of aluminum and high grade steel
- Catcher with grid layer
- Hidden and encapsulated guidance units
- Abrasive dosage system with storage bin
- Safety system
- Complete high pressure tubing between cutting table and hp-pump
- Servo-Control NUM AXIUM POWER
- Drive system NUM MDLU
- PC with waterjet software EasyCut (purpose on several PCs possible)
- Brushless digital servomotors
- Manual operating device
- Z-axle with automatic height- and collisionsensor
- Hp-valve with abrasive cutting set
- Abrasive dosage system NC-controlled with sensor to prevent system failure
- Abrasive transfer system
- Tool kit incl. all special tools for hp-pump and cutting valve
- Spare parts kit for hp-pump and cutting valve
- Start kit production facilities incl. abrasive
- Training of waterjet users
- High pressure pump 37 kW Premium
Working Areas Premium:
- from 1.000 x 1.000 mm up to 12.000 x 3.000 mm
|
|
|
|
|
|
Waterjet cutting systems for the future
A brand new generation of STM Waterjet Systems has been developed to meet the specific needs of our clients and their special cutting applications. A modern concept and efficient design characterize a reliable system that fulfils the latest shape cutting requirements.
STM Waterjet Systems offer our clients flexible, high-performance and tailor-made cutting solutions for any material and desired shape.
Powered by a HYTRON High Pressure pump from Böhler/ Austria with a maximum pressure of 400 MPa, STM Waterjet Systems find their daily, efficient application in cutting various materials up to a thickness of 100mm, including:
• industrial gaskets, plastic materials, rubber
• foam materials
• stainless steel, aluminum, copper, titanium
• carbon fiber reinforced plastic, carbon fiber, composite materials
• granite, marble, glass, ceramics
The key benefits are that this waterjet cut does NOT cause any thermal stress and does NOT set free any toxic dust and/or vapor. The only tool we are using is pure water or – in abrasive mode – water and garnet sand. That’s it!
The specially designed EasyCut waterjet cutting program uses CAD shapes for “wysiwyg” (what you see is what you get) programming and guarantees user-friendly handling and high-quality cutting performance.
|
|
|
|
|
|
The Waterjet Cutting System
The waterjet - a tool with which you can master nearly every cutting task!
Our proven and easy-to-use Waterjet Cutting System JETMax is for daily purposes. These machines are easy to operate and are delivered with all options and accessories you need for cutting with water or with abrasives - at a great price! An optimization in price and performance enable a fast repayment also for small and medium sized companies.
The key benefits are that this waterjet cut does NOT cause any thermal stress and does NOT set free any toxic dust and/or vapour. The only tool we are using is pure water or - in abrasive mode - water and garnet sand. That´s it!
Delivery Ecocut includes:
- Rustproof, welded system structure of aluminum and high grade steel
- Catcher with grid layer
- Hidden and encapsulated guidance units
- PC-control
- Brushless servomotors
- Waterjet software
- Hp-valve with abrasive cutting head
- Abrasive dosage system with storage bin
- Safety system
- Complete high pressure tubing between cutting table and hp-pump
- High pressure pump 37 kW Eco
Working Areas Ecocut:
- JETMax HS 1010 1000 x 1000 mm
- JETMax HS 2515 2500 x 1500 mm
- JETMax HS 3015 3000 x 1500 mm
- JETMax HS 3020 3000 x 2000 mm
- JETMax HS 4020 4000 x 2000 mm
|
|
|
|
|
|
Cutting system
The STM Waterjet System is ideally suited for short-run part production, just-in-time manufacturing, bulk production, prototyping and product development. It does not require tool changes or complex fixturing and allows you to reduce setup times by up to 50%. In addition, the smooth finish does not require expensive and time-consuming secondary machining. You will see that STM Waterjet Systems considerably increase your profitability!
Features & Options
Standard Features
- Entire system in stainless steel and aluminum
- Covered slideways, flat side walls
- Brushless, digital AC servo motors
- Robust and durable system due to rack and pinion drive
- Waterjet Cutting Software PACut
- HP-Pump Ecotron from BHDT
- Pump pressure control from by the cutting program
- Cutting head (waterjet cutting valve)
- CNC controlled abrasive dosing head with continuous dosing of the abrasiv ematerial from 0-400 g
- Abrasive hopper ensures 20% increase in cutting performance
- Abrasive storage container 250 kg
- PA 8000E control with up to 10 m/min rapid transverse speed
- HP-Connection pump - cutting head
- Sick double safety light barriers
- Standard warrenty for 1 year (12 months) or 2000 cutting hours
Optionen
- pneumatic Quick UP z-axle
- Automatic height sensor
- Collision protection
- Air condition control unit
- Automatic abrasive desludging system
- Up to 4 waterjet cutting heads
|
|
|
|
|
|

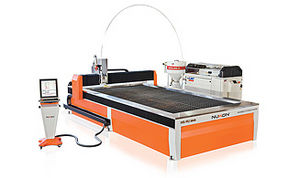

The Waterjet Cutting System
Our compact cutting systems unite the high accuracy of ball screws with minimal dimensions. The cutting systems are available with protective hoods or with light curtains.
Advantages
- Compact dimensions
- High accuracy because of ball screws with direct measuring system
- Ergonomical control rack
- Individual demands possible
- Protective hoods or light curtains
Technical data:
- Working area: 800 x 500 x 150 mm
- Dimensions: 1.550 x 1.250 x 2.000 mm
- Feed rate: 10 m/min
- Accuracy: ± 0,05 mm
- Max. Working area: 1.000 x 1.000 x 150 mm
Scope of supply:
- Welded machine rack
- x-, y-, z-axis with totally enclosed ball screws
- Catcher made of high grade steel with integrated flushing device
- Brushless AC-Servomotors
- Servo-drive system with superordinate PC-contro including control terminal with monitor, keyboard and mouse
- CAD/CAM-Software CutCAM to generate and process your cutting data
- High-pressure pump, flow rates according to your needs
- Complete high-pressure tubing between cutting table and pump
- Cutting valve with abrasive mixing chamber and accessories
- Abrasive dosage system with storage vessel and sensor
- Pressure sensor and indication at the machine
- Protection hood or light barrier as safety system
Optionally available:
- Non-standard workpiece support
- High-speed drilling spindle as parallel working head
- NC controlled high-pressure pump and abrasive dosage
- Water processing
- Separation of abrasive material and cutting water
- Multi-stage waste water processing systems
- Supervision of process-specific parameters for wear control and increased process security
|
|
The boost to innovation is the keystone to our activity. All our machining centres are constructed with the aim of increasing our Customers' productivity. With this purpose in mind we designed and constructed our new WJ model CPT cutting centre.
Among the various accessories that Customers can choose for increasing the machining centre features according to one's personal needs we offer a wide range of heads.
Technical specifications
X 2 mt / 3 mt / 4 mt
Y 1.6 mt / 2 mt / 3 mt / 4 mt / 6 mt / 8 mt / 12 mt
Z 250 mm (3 axis version)
Z 350 mm (5 axis version)
Linear speed: 80 mt/min (X,Y)
60 mt/min(Z)
CNC: Fanuc
High pressure pump: 30 hp / 50 hp / 100 hp
|
|
|
|
|
|
The Waterjet Cutting System
The waterjet - a tool with which you can master nearly every cutting task!
Our proven and easy-to-use Waterjet Cutting System JETMax is for daily purposes. These machines are easy to operate and are delivered with all options and accessories you need for cutting with water or with abrasives - at a great price! An optimization in price and performance enable a fast repayment also for small and medium sized companies.
The key benefits are that this waterjet cut does NOT cause any thermal stress and does NOT set free any toxic dust and/or vapour. The only tool we are using is pure water or - in abrasive mode - water and garnet sand. That´s it!
Delivery Premium includes:
- Rustproof, welded system structure of aluminum and high grade steel
- Catcher with grid layer
- Hidden and encapsulated guidance units
- Abrasive dosage system with storage bin
- Safety system
- Complete high pressure tubing between cutting table and hp-pump
- Servo-Control NUM AXIUM POWER
- Drive system NUM MDLU
- PC with waterjet software EasyCut (purpose on several PCs possible)
- Brushless digital servomotors
- Manual operating device
- Z-axle with automatic height- and collisionsensor
- Hp-valve with abrasive cutting set
- Abrasive dosage system NC-controlled with sensor to prevent system failure
- Abrasive transfer system
- Tool kit incl. all special tools for hp-pump and cutting valve
- Spare parts kit for hp-pump and cutting valve
- Start kit production facilities incl. abrasive
- Training of waterjet users
- High pressure pump 37 kW Premium
Working Areas Premium:
from 1.000 x 1.000 mm up to 12.000 x 3.000 mm
|
|
Model 2652
Quick turn-around for the general machine shop: precision machining of small to medium-sized parts.
Dynamic Positioning Accuracy: +/-.003" (+/-0.08 mm)
Table Size: 69" x 30" (1750 mm x 760 mm)
Footprint: 139" x 67" (3531 mm x 1702 mm)
Weight: 3,320 lbs table only (1505 kg table only)
Height: 77" (1955 mm)
X-Y Travel: 52" x 26" (1320 mm x 660 mm)
|
|
|
|
|
|

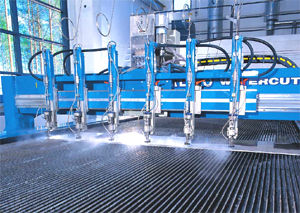

Cutting system
The STM Waterjet System is ideally suited for short-run part production, just-in-time manufacturing, bulk production, prototyping and product development. It does not require tool changes or complex fixturing and allows you to reduce setup times by up to 50%. In addition, the smooth finish does not require expensive and time-consuming secondary machining. You will see that STM Waterjet Systems considerably increase your profitability!
Features & Options
Standard Features
• Entire system in stainless steel and aluminum
• Covered slideways, flat side walls
• Brushless, digital AC servo motors
• Robust and durable system due to rack and pinion drive
• Pneumatic-actuated QuickUP Z-axis
• EasyCut, the waterjet cutting program
Options and Accessories
• Automatic height sensor
• Collision protection
• Pump-pressure control by the cutting program
• Abrasive dosing by the cutting program
• Automatic abrasive desludging system
• Abrasive hopper ensures 20% increase in cutting performance
• Up to 4 waterjet cutting heads
• 40 m/min rapid transverse speed
• 0-35 m/min contouring range
|
|
|
|
|
|

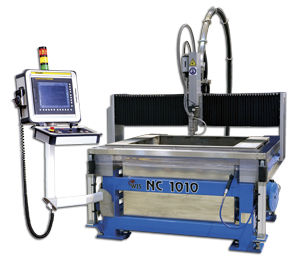

Abrasive waterjet machining centre
LC JET 10.10 type
LDSA The Automated Cutting Systems, leader in the manufacture of waterjet cutting machines on French territory presents its new generation of compact table type "LC Jet". The system relies on a homogenous and convivial whole using all the state of the art techniques known to date.
The whole thing is piloted by an entirely digital CNC FANUC model (No.1 in the world), the latest generation model, enabling ease of use and providing up till now unequalled precision in the trajectories. The very high water pressure feed is supplied by a KMT pump model SL V. The Man/Machine interface is managed by Windows and enables all the possible developments. The system is planned to function in masked time without surveillance: numerous sensors and a camera enable the remote testing and guiding of the system via a computer network or via the internet. The whole thing is very compact and uses solely very high quality components for increased reliability.
Advantages :
Complete turnkey delivered equipment
Rapid implementation on site (1 day for the standard model)
Ease of use
High quality and precision cutting
Services suited to your needs: project study, customer support (diagnostics, maintenance), detachable parts, training
|
|
|
|
|
|

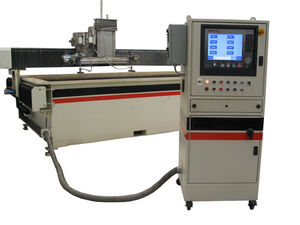

Cutting system
STM Waterjet System PREMIUM
The STM Waterjet System is ideally suited for short-run part production, just-in-time manufacturing, bulk production, prototyping and product development.
It does not require tool changes or complex fixturing and allows you to reduce setup times by up to 50%. In addition, the smooth finish does not require expensive and time-consuming secondary machining.
You will see that STM Waterjet Systems considerably increase your profitability!
One for all:
As a system specialist in waterjet cutting systems, STM makes the processing of steel, aluminium, non-ferrous metal, stone, glass or sealing materials completely trouble free for the companies carrying out such work. So the advantages of the cold-cutting process can be optimally exploited, STM offers a total of three model series, which differ amongst each other by the wide range of available auxiliary components and so can be perfectly matched to individual requirements.
Moreover, each STM portal system is available with different bridge widths as well as table lengths and is equally qualified for both abrasive and pure-water cutting. Consequently STM systems can be used to cut a wide range of materials without any retooling costs - independent of whether 2D, 3D pipe or robot cutting is required. Thanks to fully compatible modules, all machines are completely upgradable and can be exactly configured for specific application profiles.
|
|
|
Accustream waterjet cutting machines can be integrated into a variety of waterjet cutting applications. Whether you are purchasing a new system or looking to upgrade out-dated waterjet cutting equipment, Accustream can be of assistance. For new cutting systems, Accustream partners with integrators which can provide standard cutting tables, 5-axis cutting machines and custom automated cutting solutions.
|
|
|
|
|
|
Abrasive waterjet machining centre
WJA 5 axes type
LDSA, The Automated Cutting Systems, leader in the manufacture of waterjet cutting machines on French territory presents its new generation of table type "WJA" 5X.
The whole thing is piloted by an entirely digital CNC FANUC (No.1 in the world), the latest generation enabling ease of use and providing up till now unequalled precision in all trajectories. The very high water pressure feed is supplied by a KMT Waterjet Systems pump model SL V.
The Man/Machine interface is managed by Windows and enables all the possible developments. The system is planned to function in masked time without surveillance: numerous sensors enable the remote testing and guiding of the system via a computer network or via internet. The whole thing is very compact, and uses solely very high quality components for increased reliability.
Advantages
Correction of draft
Complete turnkey delivered equipment
Rapid implementation on site (5 days)
Ease of use
High quality and precision cutting
Unique concept with 5 axes enabling 3D precision cutting whilst keeping the functionalities and the precision of a 2D system.
|
|
Abrasive waterjet systems excel at three-dimensional cutting, and Flow manufactures a complete line of turnkey systems for cutting complex shapes. The AF-Series cuts with precision accuracy, at speeds up to 400 inches per minute.
Specifications
Size/Work Envelope:
- Base: 6 ft, 12 ft, 16 ft, 20 ft
- Bridge: 8 ft; custom sizes also available
Accuracy: ± 0.005 inches
Repeatability: ± 0.003 inches
Traverse Speed:
- X- & Y-axis: 0 to 900 ipm
- Z-axis: 0 to 450 ipm
Contour Speed: 0 to 400 ipm
Control System: Siemens 840D CNC controllers
Z-axis Adjustability: 24 inches
|
|
|
|
|
|
Abrasive waterjet machining centre
WJA type
LDSA, The Automated Cutting Systems, leader in the manufacture of waterjet cutting machines on French territory presents its new generation of table type "WJA". A homogenous and modular concept using all the state of the art techniques known to date.
The whole thing is piloted by an entirely digital CNC FANUC (No.1 in the world), the latest generation enabling ease of use and providing up till now unequalled precision in the trajectories. The very high water pressure feed is supplied by a KMT Waterjet Systems pump model SL V.
The Man/Machine interface is managed by Windows and enables all the possible developments. The system is planned to function in masked time without surveillance: numerous sensors enable the remote testing and guiding of the system via a computer network or via internet. The whole thing, from compact to modular realisation, uses solely very high quality components for increased reliability.
Advantages :
Complete turnkey delivered equipment
Rapid implementation on site (5 days)
Ease of use
High quality and precision cutting
Services suited to your needs :
· Project study
· Industrialisation (Pre-Sales)
· Detachable parts
· Training
|
|
|
Large scale precision machining: For larger parts or multiple parts from large stock up to 5' x 10' (1.5 m x 3 m). The 60120 JetMachining Center cuts complex flat parts out of most materials including metal, plastic, glass, ceramics, stone and composites directly from a CAD drawing or .DXF file. Extremely hard, reflective and nonconductive materials can also be cut, making it a valuable addition to existing shop capabilities. No tool changes or complex fixturing dramatically reduces setup times and the smooth finish often eliminates the need for secondary machining.
|
|
Model 80 X
Designed for large scale precision machining of larger parts or multiple parts from stock up to 6'8" x 13'4" (2 m x 4 m).The Model 80X JetMachining Center cuts complex flat parts out of most materials including metal, plastic, glass, ceramics, stone and composites directly from a CAD drawing or .DXF file. It can also cut extremely hard, reflective and non-conductive materials, making it a valuable addition to existing shop capabilities. No tool changes or complex fixturing reduces setup times and the smooth finish often eliminates the need for secondary machining.
Footprint 265" x 152" (6731 mm x 3861 mm)
Weight (tank empty) 9,000 lbs (4050 kg)
Height 144" (3658 mm)
Operating Weight 34,000 lbs (15300 kg)
X-Y Travel 165" x 80" (4191 mm x 2032 mm)
Table Size 180" x 89" (4572 mm x 2261 mm)
Material Support Slats 4" x 1/8" Galvanized Steel
Maximum Supported Material Load 250 lbs/sq. ft. (1,200 kg/sq. meter)
|
|
Model 55100
Precision machining workhorse: From prototypes to production runs, create parts in a variety of materials in sizes up to 4' x 8' (up to 2.5 m x 1.4 m).
Dynamic Positioning Accuracy: +/-.003" (+/-0.08 mm)
Table Size: 126" x 65" (3200 mm x 1650 mm)
Footprint: 155" x 94" (3937 mm x 2388 mm)
Weight: 8,000 lbs table only (3629 kg table only)
Height: 76" (1930 mm)
X-Y Travel: 100" x 55" (2540 mm x 1400 mm)
|
|
|
|
|
|
High Productivity with an Integrated, Compact Design
The Integrated Flying Bridge (IFB) incorporates a design that combines the motion control, pump and high-pressure components of a waterjet cutting tool into one compact machine. It consumes minimal floor space, provides excellent operator access, and is configured for easy material loading and unloading. This abrasive waterjet machine is capable of cutting any metal, stone, tile, and glass material with unmatched accuracy and intricacy.
The World's Most Popular Waterjet Cutting System
The Integrated Flying Bridge is a design that has been field proven through over a thousand installations worldwide. The robust open gantry is designed and constructed using advanced finite element engineering to ensure it will consistently deliver an extremely high level of accuracy and performance well into the future.
For maximum productivity, it's possible to equip the machine with optional features such as dual cutting heads, Dynamic Waterjet®, height and collision sensors, and an automatic abrasive removal system to keep the catcher tank clean and eliminate downtime associated with having to remove used abrasive. Finally, because the machine is equipped with FlowMaster, Flow's intelligent Windows-based PC control and programming system, it is extremely easy to learn and simple to use. No waterjet or programming experience is necessary to begin producing perfect parts.
|
|
|
|
|
|
Abrasive waterjet machining centre
FBjet type
LDSA, The Automated Cutting Systems, leader in the manufacture of waterjet cutting machines on French territory presents its new generation of table type "FBjet". A homogenous and entirely integrated concept using all the state of the art techniques known to date.
The whole thing is piloted by an entirely digital CNC FANUC model (No.1 in the world), the latest generation "OPEN" model, enabling ease of use and providing up till now unequalled precision in the trajectories. The very high water pressure feed is supplied by a KMT Waterjet Systems pump model SL V "OEM" version integrated to the Machine frame. The Man/Machine interface is managed by Windows and enables all the possible developments. The system is planned to function in masked time without surveillance: numerous sensors enable the remote testing and guiding of the system via a computer network or via the internet. The whole thing, from compact realisation and full integration, uses solely very high quality components for increased reliability.
Advantages :
Complete turnkey delivered equipment
Rapid implementation on site (2 days)
Ease of use
High quality cutting
Pump integrated to the Machine frame
Variation in the integrated water level
CNC GE FANUC "OPEN" version with PC
|
|
|
MultiCam CNC WaterJet cutters are legendary for their ease-of-use and versatility. Successful companies around the world rely on MultiCam water jets to automate production in countless different industries. MultiCam offers both nonabrasive and abrasive water jet cutting systems and three product lines to fit your specific application. The 1000 Series is a cost effective nonabrasive waterjet cutting solution. The 4000 and 6000 Series machines are heavy duty, high-precision cutting systems that can be configured for nonabrasive and abrasive waterjet cutting. All MultiCam WaterJets are powered by KMT Waterjet Intensifiers. MultiCam manufactures a WaterJet cutter to fit your needs. To learn more about MultiCam's CNC Water Jet systems click the navigation to the left or an image below.
|
|
Model 2626
Smaller work envelope: Compact size, precision abrasivejet machining of smaller parts.
Dynamic Positioning Accuracy: +/-.003" (+/-0.08 mm)
Table Size: 46" x 31" (1168 mm x 787 mm)
Footprint: 116" x 72" (2946 mm x 1829 mm)
Weight: 3,000 lbs table only (1364 kg table only)
Height: 92" (2337 mm)
X-Y Travel: 29" x 26" (737 mm x 660 mm)
|
|
|
The Model 5555 JetMachining Center cuts complex flat parts out of most materials including metal, plastic, glass, ceramic and composites directly from a CAD drawing or .DXF file. JetMachining is ideal for short-run part production, just-in-time manufacturing, tooling and prototype part development. No tool changes or complex fixturing reduces setup times by at least 50%.
|
|
|
|
|
|

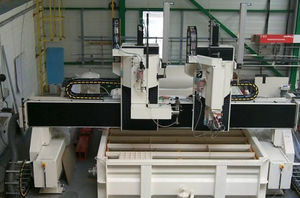

Abrasive waterjet machining centre
WJA type with 2 independent heads
LDSA, The Automated Cutting Systems, leader in the manufacture of waterjet cutting machines on French territory presents its new generation of table type "WJA". A homogenous and modular concept using all the state of the art techniques known to date.
The whole thing is piloted by an entirely digital CNC FANUC (No.1 in the world), the latest generation, enabling ease of use and providing up till now unequalled precision in the trajectories. The very high water pressure feed is supplied by a KMT Waterjet Systems pump model SL V.
The Man/Machine interface is managed by Windows and enables all the possible developments. The system is planned to function in masked time without surveillance: numerous sensors enable the remote testing and guiding of the system via a computer network or via internet. The whole thing, from compact to modular realisation, uses solely very high quality components for increased reliability. The use of 2 independent heads individually piloted by the CNC enables increased production and total flexibility. The parking position of each head enables the other head total range of the machine.
Advantages :
Complete turnkey delivered equipment
Rapid implementation on site (5 days)
Ease of use
High quality and precision cutting
Increased production thanks to twin independent heads
“Parking” position for each head freeing the total space for the other head
Reduced pitch centre of 390 mm between the 2 heads
Services suited to your needs:
· Project study
· Industrialisation (Pre-Sales)
· Detachable parts
· Training
|
|
The Jet Edge Versacutter is a motion controlled, portable abrasivejet cutting and beveling system. The system is used in a variety of cutting applications including pipelines, steel reinforced concrete, reactor vessels and fabricated metal structures. The Versacutter cuts without flames and does not generate heat. This makes it possible for operators to cut in areas where flames are restricted, and eliminates heat-affected zones.
Request Information - http://www.jetedge.com/content.cfm?fuseaction=dsp_sales_request
|
|
|
|
|
|
BENEFITS:
Remove Material and Shape Constraints of Electronic Component Design
Proven Omni-directional and Curvilinear Cutting System
Simple, Stable, and Reliable
High Reliability (CPK > 1.66)
High Productivity with 24 Hour Uptime
Superior Cut Edge Quality
Cut & Drill on Same Machine
Heat and Smoke Free
No Component Melting
No Lead frame smearing
No Substrate Delamination
No Edge Chipping
Minimal Programming & Setup Time
Low Maintenance Requirements
STANDARD FEATURES:
High Accuracy
Waste Removal System
Paser ECL Abrasive Waterjet Cutting Head
Vacuum Assist
Integrated Vision Positioning System
Abrasive Bulk Transfer System
Process Monitoring & Data Logging
Small Footprint
Worldwide Technical Support
OPTIONS:
Auto Loading/Unloading & Wash/Dry Module
Part Fixtures
Service Contract
SPECIFICATIONS:
Gantry Design
Modularized Design
Linear Servomotor Drive System
Cutting Envelope XYZ 820mm x 480mm x 90mm
Max Traverse Speed 833mm/s
Max Cutting Speed 233mm/s
Accuracy = ± 0.025mm
XY Repeatability ± 0.025mm
Auto Holding System
Manual Load/Unload
|
|
LDSA The Automated Cutting Systems, leader in the manufacture of waterjet cutting machines on Frenchterritory presents its new generation of compact table type "LC Jet". The system relies on a homogenous and convivialwhole using all the state of the art techniques known to date.
The whole thing is piloted by an entirely digital CNC FANUC model (No.1 in the world), the latest generation model,enabling ease of use and providing up till now unequalled precision in the trajectories. The very high water pressurefeed is supplied by a KMT pump model SL V. The Man/Machine interface is managed by Windows and enables all thepossible developments. The system is planned to function in masked time without surveillance: numerous sensors anda camera enable the remote testing and guiding of the system via a computer network or via the internet. The wholething is very compact and uses solely very high quality components for increased reliability.
|
|
Jet Edge's High Rail Gantry System will produce complex parts out of virtually any material. The overhead design allows full access to the work envelope and raises the critical components out of the process environment.
The stress-relieved steel fabricated frame provides unparalleled rigidity coupled with welded lightweight dynamic beams for stable but fast operation.
Moving elements are supported on THK linear ways with precision duplex pair factory ground and matched bearing sets.
|
|
|
|
