Cartridge dust collector: mechanical shaker
0.5 µ | IFC-T SERIES AERSERVICE

IFC-T SERIES

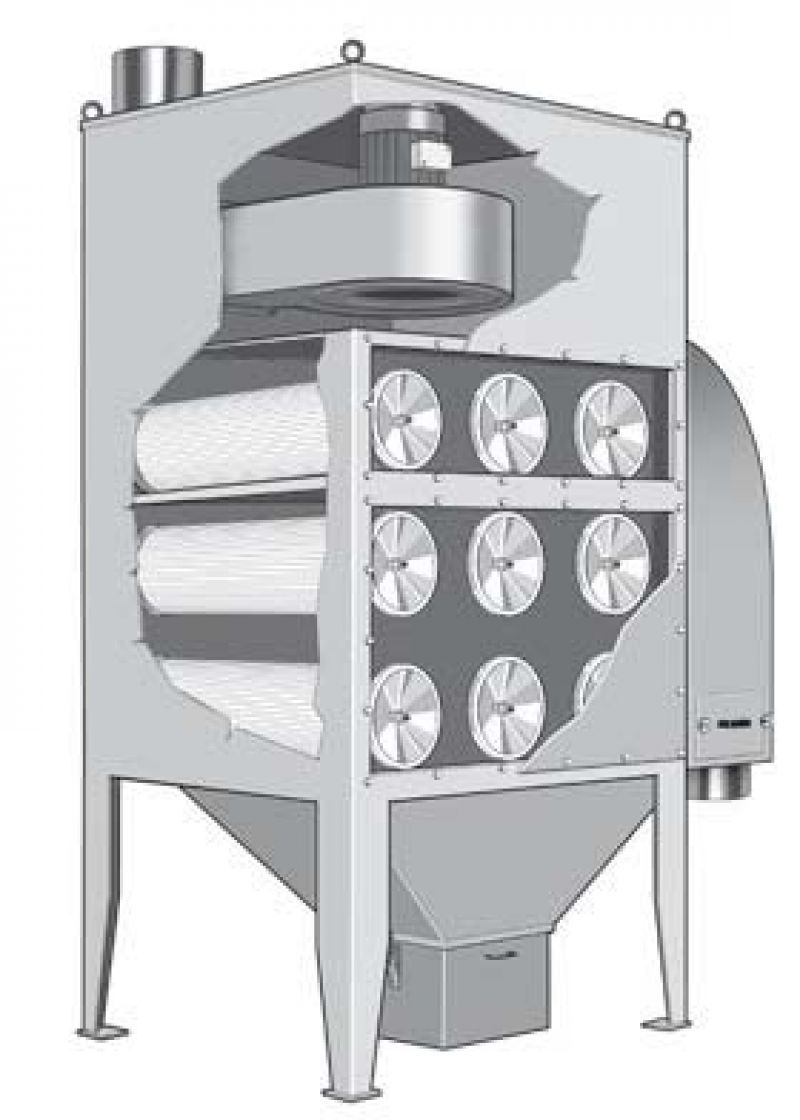

Construction features

* Structure composed of 3 and 4 mm gauge welded sheet steel panels with paint finish, clean air plenum, made with same panelling, dust collection hopper made of painted sheet steel. Dust discharge bin with castor wheels, located under the hopper.
* Front hatch for maintenance access and certified compressed air accumulator. Membrane type compressed air pressure reducer with fast response speed, complete with Full- Immersion type pilot solenoid valve.
* Very high efficiency filter cartridges having total filtration surface area of 15.8 m2 each, suitably sized and in having filtration efficiency of 99.999 % for particulate down to 0.5 micron.
* SUCTION fan mounted on filter roof, equipped with motor, the power of which depends on the position of the filter with respect to the length and shape of the connecting duct. Sound-insulated box to reduce the sound pressure level produced by the fan.
* Electrical panel to European standards, including painted steel cabinet with IP54 protection rating, with door lock disconnect switch, control voltage ON indicator light, motor thermal trip indicator light, and illuminated fan Start/Stop buttons
* Electronic control unit with automatic filter loading control system that reduces wear of the filter elements resulting in significant power savings and lower running costs.
