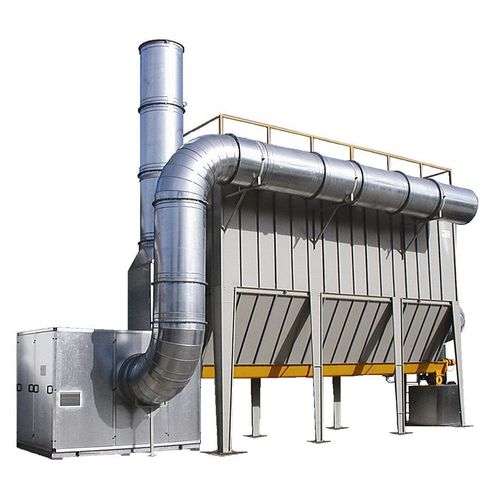

Cartridge filter purification system with automatic cleaning for fumes and particulate
Serious difficulties in dedusting where the amount of particulate to separate, which are both particularly heavy and where a certain degree of humidity may be present.
Our IFM self-cleaning sleeve filter model Finds use for the filtration of air pollutants produced by mechanical engineering, foundries, the chemical, food and marble industries and the process of welding, deburring and grinding.
Thanks to the automatic cleaning system using compressed air, it is possible to clean all the filtration components without interrupting the various on-going processes, allowing the separation of particulate and its subsequent precipitation into the collection container, located at the base of the group or in an automatic discharge system, by means of a star valve or auger.
Where required by particular applications, the system can be supplied with ATEX certification.
Self-supporting panels and structure in sturdy powder-coated welded carbon steel, resting on sturdy support legs.
Filter section consisting of the plenum for air with high volumes of particulate housing the filter sleeves, positioned between the upper chamber into which the clean air is conveyed and the lower hopper for particulate transfer.
Filter cages complete with venturi.
A compressed air cleaning device consisting of a certified compressed air accumulation tank, diaphragm valves with ultra- fast response time and relative Full-Immersion piloted solenoid valve.
Electronic control unit which can regulate the type of airflow and standby time, and a differential pressure gauge with a digital display of the measure value.
