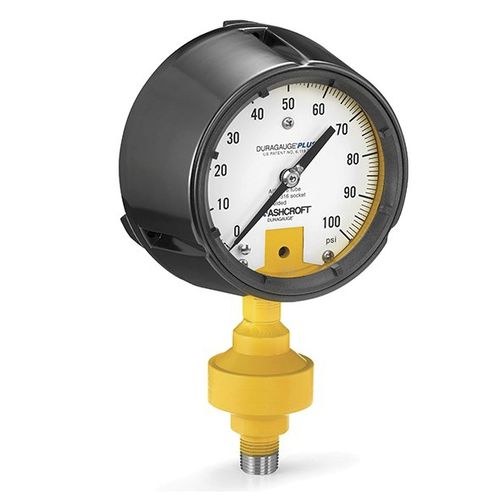

analog pressure gauge / Bourdon tube / with acid leak detection
ALD ASHCROFT

{{requestButtons}}

Characteristics

  • Display:

    analog

  • Technology:

    Bourdon tube

  • Other characteristics:

    with acid leak detection

  • Pressure:

    10,000 psi

Description

Acid Leak Detection (ALD) Assembly has a special yellow coating that changes to red once it is exposed to acids with a pH of ≤ 3, providing visual indication of a leak of process media.

Key Features:
316SS, Monel 400 or Hastelloy C-276 wetted parts
Custom dials available
Orange or yellow case for quick identification (optional)
Fill fluid for oxidizing acids
Pressure ranges up to 10,000 psi
Silicone-free PLUS!™ Performance (optional)
Cleaning for oxygen service (optional)
NACE compliant assemblies
Specifications:
Accuracy: ±1.0% of span (1259, 1279) or ±1.5% of span (T6500)
Process Connection: 1/2 NPT Male
Case Style: Solid-front with pressure relief back
Pointer: Micrometer, adjustable, aluminum
Weather Protection: Hermetically sealed: IP66
Dampening: PLUS!™ Performance (XLL)
Pressure Rating (MAWP):
Standard: Vac to 1,500 psi @ 100°F
Optional: 1,500 to 10,000 psi @ 100°F
